Q7x30 Interface Modules for Series 90 Modutrol IV Motors
For converting Series 90 Modutrol IV motors to Series 70 (electronic) control.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
For converting Series 90 Modutrol IV motors to Series 70 (electronic) control.
Features & Benefits:- Mounts and works inside wiring box of any series 90 Modutrol IV Motor
- Protected from weather by motor’s NEMA 3 wiring box
- Mates to motor’s quick-connect terminals and provides screw terminals for control wiring connections
- Features solid-state circuitry with surface mount components
- Cover holds module in place, screws not required
- Includes (except Q7330A) reversing switch to allow replacement of electrically normally open or electrically normally closed motors
Honeywell will provide product support until
Name
Date
Size
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
Q7230A1005/U
Interface Module, Provides adjustable zero & span, voltage or current control (includes 2-10 Vdc or 4-20 mA), Adapts M91XX to function as M72XX model
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Q7230A1005-U-left-1
Q7230A1005/U
Interface Module, Provides adjustable zero & span, voltage or current control (includes 2-10 Vdc or 4-20 mA), Adapts M91XX to function as M72XX model
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Q7230A1005-U-left-1

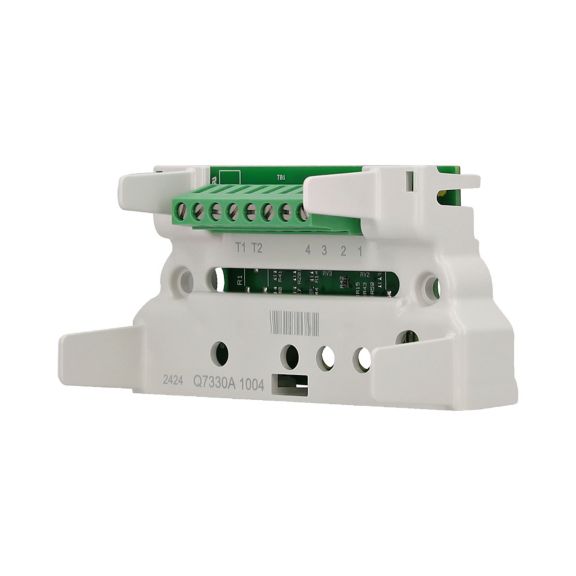

Q7330A1004/U
Interface Module, Provides interface to W936 Control, Adapts M91XX to function as M73XX model
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Q7330A1004-U-left
Q7330A1004/U
Interface Module, Provides interface to W936 Control, Adapts M91XX to function as M73XX model
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Q7330A1004-U-left
