Current Sensors
Honeywell E-Mon™ Class 6000 333mV Current Sensors
E-Mon Class 6000 Split-Core 333mV current sensors ranging from 25-5000Amps.
Overview
Fit into tight spaces with the compact E-Mon Class 6000 Split-Core 333mV Current Sensors. E-Mon Class 6000 Meters are field configurable to E-Mon Class 6000 Current Sensors
Features & Benefits:- 333mV split-core current sensor
- 25 amp to 5000 amp
- Compact size to fit tight spaces
- CS insulated for buss bar installation
- Intuitive arrow points to load
- Rogowski rope CS option
- 25 to 3200 Amps – set of 1
- 5000 Amps – set of 3 pieces with integrator, requires one 04-4040 power supply
- Must be used with E-Mon Class 6000 Series Meters. May not be used with any other E-Mon products.
- UL listed per 1951
Installation Instructions
Name
Description
File Size
Date
Size
Class 6200 Pulse Meter Installation and Operating Instructions
application/pdf 353.62 KB
5/8/2023
353.62 KB
Data Sheet
Name
Description
File Size
Date
Size
o E-Mon Class 6200 Pulse Output Connection Specification Data
application/pdf 496.13 KB
5/10/2023
496.13 KB
E-Mon® Class 6000 333mV Current Sensor Specifications
application/pdf 662.1 KB
8/1/2023
662.1 KB
o E-Mon Class 6000 Multiple Load Monitoring Specification Data
application/pdf 299.49 KB
5/10/2023
299.49 KB
Name
Description
File Size
Date
Size
o E-Mon Class 6200 Pulse Output Connection Specification Data
application/pdf 496.13 KB
5/10/2023
496.13 KB
Class 6200 Pulse Meter Installation and Operating Instructions
application/pdf 353.62 KB
5/8/2023
353.62 KB
E-Mon® Class 6000 333mV Current Sensor Specifications
application/pdf 662.1 KB
8/1/2023
662.1 KB
o E-Mon Class 6000 Multiple Load Monitoring Specification Data
application/pdf 299.49 KB
5/10/2023
299.49 KB
Name
Description
File Size
Date
Size
Class 6200 Pulse Meter Installation and Operating Instructions
353.62 KB
5/8/2023
o E-Mon Class 6200 Pulse Output Connection Specification Data
496.13 KB
5/10/2023
E-Mon® Class 6000 333mV Current Sensor Specifications
662.1 KB
8/1/2023
o E-Mon Class 6000 Multiple Load Monitoring Specification Data
299.49 KB
5/10/2023
Product Number
Please Sign In to view part numbers available for purchase based on your account
Part Number
Description
Add to list
E-RS-5000-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 5000A, 3 Pieces with Integrator, Requires 04-4040 Power Supply
E10025-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 25A, 1 Piece
E10050-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 50A, 1 Piece
E10100-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 100A, 1 Piece
E101600-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 1600A, 1 Piece
E10200-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 200A, 1 Piece

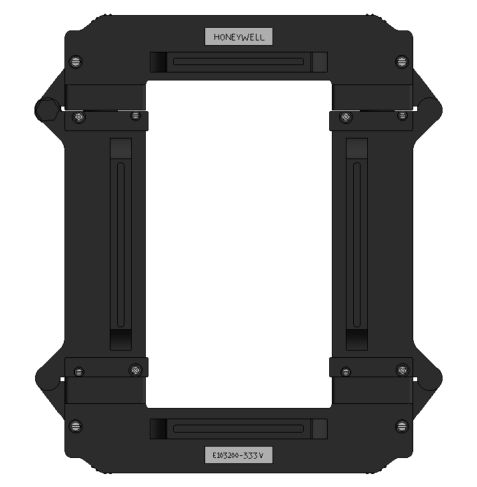

E103200-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 3200A, 1 Piece
E10400-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 400A, 1 Piece
E10800-333V
Class 6000 Series Current Sensor, Split-Core, 0.333V, 800A, 1 Piece
