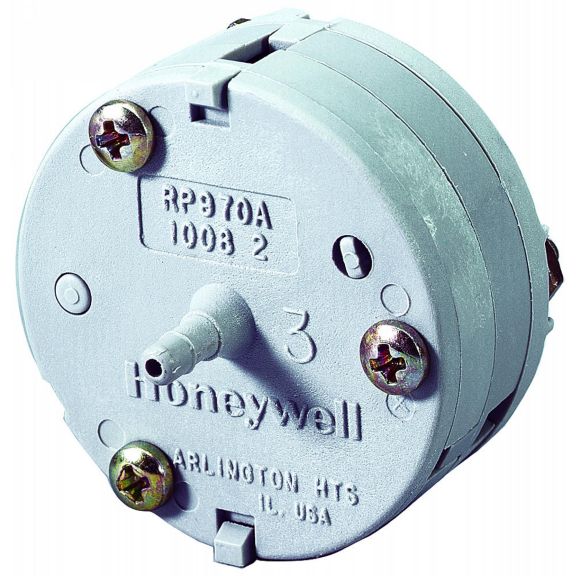

    RP970A Pneumatic Capacity Relay

    RP970A pneumatic capacity relays are direct acting, proportional relays with a 1:1 pressure ratio.

    Overview

    RP970A pneumatic capacity relays are direct acting, proportional relays with a 1:1 pressure ratio. They are suitable for use in systems to increase the capacity of a branchline signal to a pneumatic valve or damper operator. They are also used to isolate an input, and repeat a pressure. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

    Features & Benefits:
    • In-line, wall, or panel mounted
    • Sharp-barb air connections
    • Molded plastic construction with neoprene diaphragms
    • Mounting clip provided
    Specifications

    Others

    • Maximum Operating Humidity
      • 95 (Non-Condensing) percentage relative humidity
    • Minimum Operating Humidity
      • 5 (Non-Condensing) percentage relative humidity
    • Minimum Operating Ambient Temperature
      • 4 degree Celsius
      • 40 degree Fahrenheit
    • Maximum Operating Ambient Temperature
      • 140 degree Fahrenheit
      • 60 degree Celsius
    • Connection Size
      • 1/4 inch
      • 6 millimetre
    • Mounting Type
      • Inline inch
      • Wall inch
      • panel inch
    • Connection Type
      • Barb
      • Barbed
    • Brand
      • Honeywell BMS NA

    Others

    • Maximum Operating Humidity
      • 95 (Non-Condensing) percentage relative humidity
    • Minimum Operating Humidity
      • 5 (Non-Condensing) percentage relative humidity
    • Minimum Operating Ambient Temperature
      • 4 degree Celsius
      • 40 degree Fahrenheit
    • Maximum Operating Ambient Temperature
      • 140 degree Fahrenheit
      • 60 degree Celsius
    • Connection Size
      • 1/4 inch
      • 6 millimetre
    • Mounting Type
      • Inline inch
      • Wall inch
      • panel inch
    • Connection Type
      • Barb
      • Barbed
    • Brand
      • Honeywell BMS NA
    • Maximum Operating Humidity : 95 (Non-Condensing) percentage relative humidity
    • Minimum Operating Humidity : 5 (Non-Condensing) percentage relative humidity
    • Minimum Operating Ambient Temperature : 4 degree Celsius|40 degree Fahrenheit
    • Maximum Operating Ambient Temperature : 140 degree Fahrenheit|60 degree Celsius
    • Connection Size : 1/4 inch|6 millimetre
    • Mounting Type : Inline inch|Wall inch|panel inch
    • Connection Type : Barb|Barbed
    • Brand : Honeywell BMS NA
