Relays & Switches

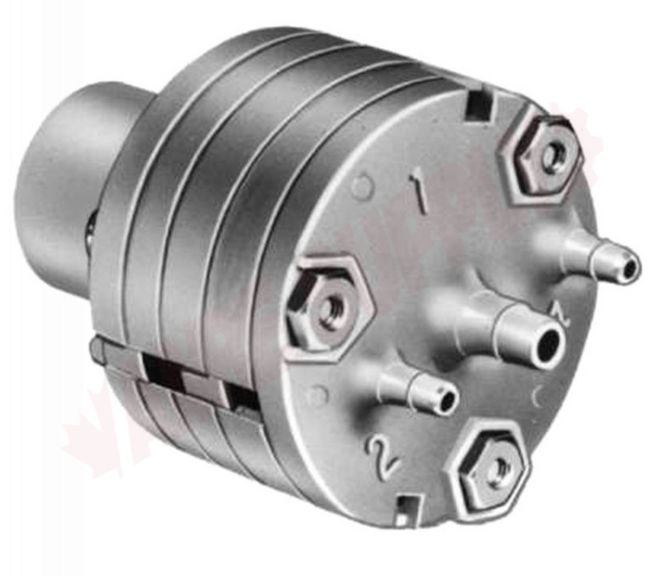

RP972A Pneumatic Reversing Relay

RP972A pneumatic reversing relays are modulating relays suitable for all types of heating and air conditioning control systems. They are used as reversing relays to reverse and increase the capacity of branchline pressure to the control element.

Overview

RP972A pneumatic reversing relays are modulating relays suitable for all types of heating and air conditioning control systems. They are used as reversing relays to reverse and increase the capacity of branchline pressure to the final control element.

Features & Benefits:
  • Reverse-acting
  • In-line mounting; or can be surface- or panel-mounted with standard 1 1/2-inch diameter cable clamp
  • Neoprene diaphragm
  • Stainless steel valve seats
Sort
Engineering Specifications
Document Title
Document Type
File Size
Document Language
Brand
Engineering Specifications
8.16 MB
Engineering Specifications
0.07 MB
Installation Instructions
Document Title
Document Type
File Size
Document Language
Brand
Installation Manual
0.35 MB
Document Title
Document Type
File Size
Document Language
Brand
Engineering Specifications
8.16 MB
Installation Manual
0.35 MB
Engineering Specifications
0.07 MB
Product Number
SKU
Description
alt
RP972A1006/U
Pneumatic Reversing Relay, 0 to 18psi
SKU
Description
alt
RP972A1006/U
Pneumatic Reversing Relay, 0 to 18psi
