    Wall Modules

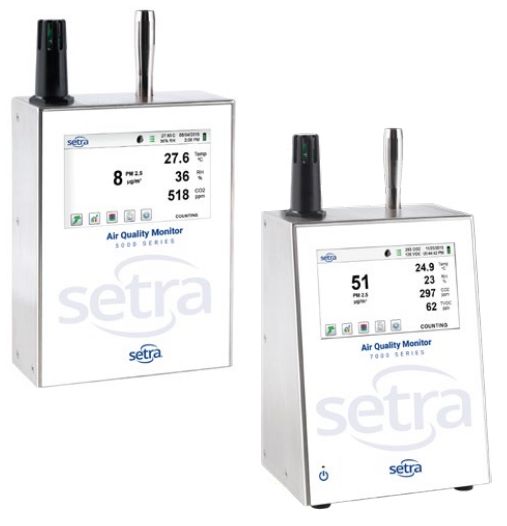

    AQM5000 Series Air Quality Monitor

    These Air Quality Monitors measure 0.3 μm to 25 μm sized particles. It makes it easy and affordable to monitor indoor air quality in a single device - perfect for monitoring indoor air quality in healthcare facilities and other public spaces.

    Overview

    The Setra Systems AQM5000 and AQM7000 Series Air Quality Monitors measure 0.3 μm to 25 μm sized particles with mass concentration and stores indoor air quality measurements of temperature, relative humidity, Carbon diaoxide, and TVOC in select configurations. Setra’s AQM Series monitors make it easy and affordable to monitor indoor air quality in a single device - perfect for monitoring indoor air quality in healthcare facilities, cleanrooms, office building lobbies and other public spaces. The AQM5000 and AQM7000 can store up to 45,000 time stamped particle counts and environmental data records which provides data redundancy on every instrument.

    The instruments’ mass concentration mode approximates density in μg/m³ and allows for density and refractive index corrections to ensure accuracy. The AQMs reports and displays 6 user-selectable particle size channels, as well as carbon dioxide, temperature, and relative humidity. The instrument monitors PM 1, PM 2.5, PM 5, PM 10 & TPM (and any other PM size value the user specifies) with an easy-to-use Channel Management control panel.

    Features & Benefits:
    • Large colour touch screen display
    • Approximates mass concentration in μg/m³ and indicates simultaneous PM values
    • User-selectable, adjustable particle channel sizes.
    • Stores up to 45,000 sample records
    • Connect using Ethernet, USB or (optional) WiFi
    • Static or dynamic IP address (DHCP) connection
    • Modbus RTU, ASCII or TCP connectivity
    • Included software permits remote operations, data management, diagnostics & more
    • Internal audible alarm with user selectable thresholds
    • User-friendly field calibration
    Certifications:
    • ISO 21501-4
    • JIS B9921
    • CE
    • RoHS
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    AQM53011SM
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53011SM
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53011SS
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, Standard Calibration, Standard Connectivity
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53011SS
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, Standard Calibration, Standard Connectivity
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53011SW
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, Standard Calibration, WiFi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53011SW
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, Standard Calibration, WiFi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53012SM
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, TVOC Sensor, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53012SM
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, TVOC Sensor, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53012SS
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, TVOC Sensor, Standard Calibration, Standard Connectivity
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53012SS
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, TVOC Sensor, Standard Calibration, Standard Connectivity
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53012SW
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, TVOC Sensor, Standard Calibration, WiFi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM53012SW
    Air Quality Monitor, 5000 Series, 0.3micron, 0.1cfm, TVOC Sensor, Standard Calibration, WiFi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55011SM
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55011SM
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55011SS
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, Standard Calibration, Standard Connectivity
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55011SS
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, Standard Calibration, Standard Connectivity
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55011SW
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, Standard Calibration, WiFi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55011SW
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, Standard Calibration, WiFi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55012SM
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, TVOC Sensor, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
    AQM55012SM
    Air Quality Monitor, 5000 Series, 0.5micron, 0.1cfm, TVOC Sensor, Standard Calibration, Modbus
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-aqm53011sm-setra-systems-aqm5000-series-air-quality-monitor-primaryimage
