X47 Universal Relay Pack
Discontinued

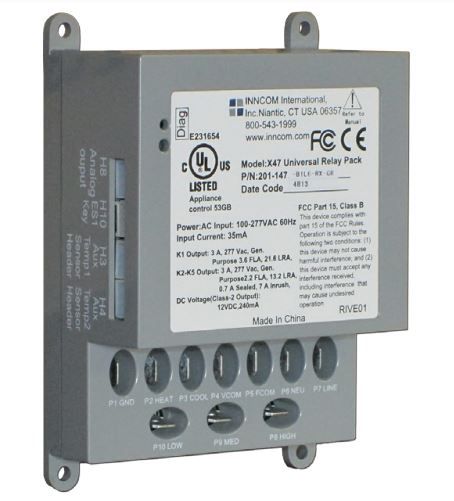

The X47 Universal Relay Pack is a Honeywell INNCOM Integrated Room Automation System device designed for guestroom controls.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
X47 provides five relay outputs used to switch a variety of loads, including fan coil units (FCU) and light-duty general loads. The X47 can integrate with and receive data from multiple points throughout the system using low-voltage wired communication (S5bus) or radio frequency (RF) communication (when connected to a PC502). The X47 comes in 24VAC (low-power) or 100-277VAC (line-power) versions.
X47 FCU Controller: In combination with the INNCOM Digital Thermostats, the X47 FCU controller is a feature-rich, cost-saving energy management tool. Communication using RF adds to its installation versatility.
Features & Benefits:- Five power relays and a local logic controller card combined in one assembly
- Blade connectors for 110VAC–2277VAC option; 10-pin Molex connector for 24VAC option
- Low voltage connection headers that provide 12VDC output and low-voltage control signals
- Four screw openings in the bottom enclosure for mounting in a NEMA enclosure
- One diagnostic LED, which will blink on and off to indicate activity. It also signals during startup and the commissioning process
