USB Charging Sockets

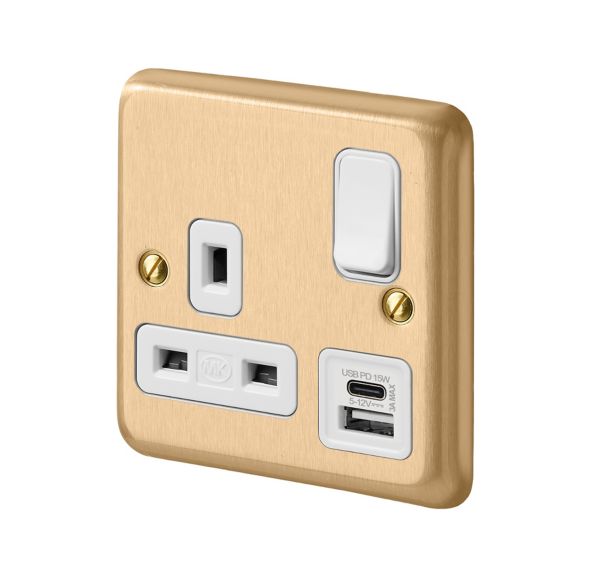

Albany USB Socket
Charge your Portable Device via A or C Type USB using 15W of Total Power within a Albany Plus Wiring Device Offer
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Albany Plus™ 13A USB sockets are a comprehensive range of sockets offering additional USB charging capability available in 4 high quality metallic finishes. All the sockets have double pole switching as standard.
Products are suitable for a wide array of applications, as they are available in 1 Gang and 2 Gang form factors, all with dual earth capability
Designed for total quality, safety and reliability, the sockets boast a wealth of features that make them one of the safest and most advanced sockets available.
Features & Benefits:- If two devices are connected to USB outlets the total rated current is divided between the two outlets.
- If the total charging current exceeds the rated power then the device will enter a current limiting safety mode.
- Electronically protected against an overload or short circuit on either USB outlet.
- 3 Pin "child resistant" safety shutter stystem on 13A socket outlets inhibits access to power unless all 3 pins of a BS plug are inserted.

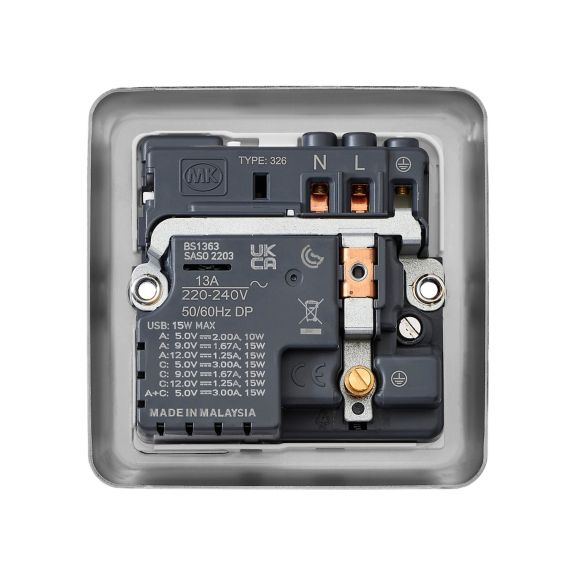

- Backed out, in line terminals for easier installation.
- Double Pole Switching with additional electrical safety from the neutral pole contact "makes first" & "breaks last" after the live contact.
- Dual earth terminals for added user safety.
- Printed terminal markings on grey rear moulding for clearer identification.
- 5 year guarantee
Specifications
Others
- Brand
- MK Electric
- Minimum Mounting Box Depth
- 25
- Number of Terminal Cables
- 3
- Cable Securing Mechanism
- Screw Clamp
- Regulatory Approvals
- BS1363-2
- USB Supply Voltage
- 5-12 volt
- Terminal Capacity
- 3 x 2.5mm² ; 3 x 4mm² ; 2 x 6mm²
- Plug Type Options
- USB Type A ; USB Type C
- Operating Voltage
- 220-240 volt
- USB-Anschlüsse
- 2
- Overall Height
- 86 millimetre
- Fixing Centers
- 60.3 millimetre
- Current Rating
- 13
- Overall Width
- 86 millimetre
- Overall Depth
- 19.5 millimetre
- Insert Color
- White
- USB Outlets
- 2
- USB Current
- 3 ampere
- Material
- Metal
- Includes
- Fixing Screws
- Finish

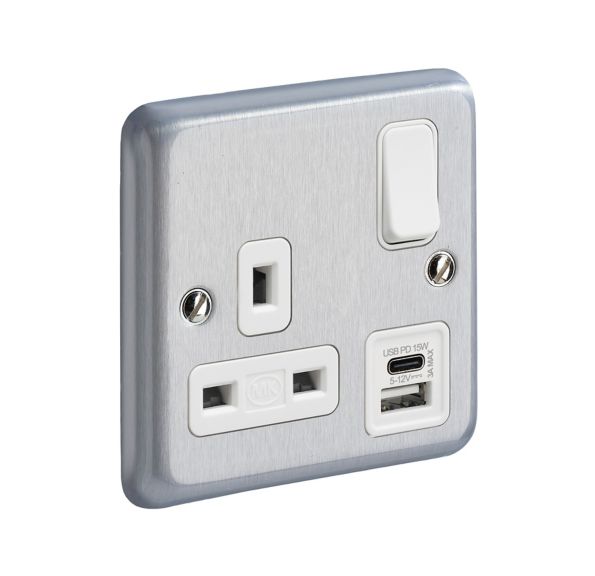

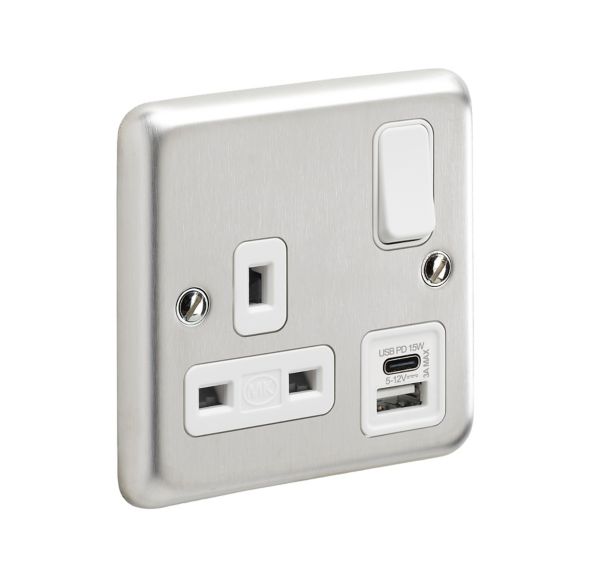

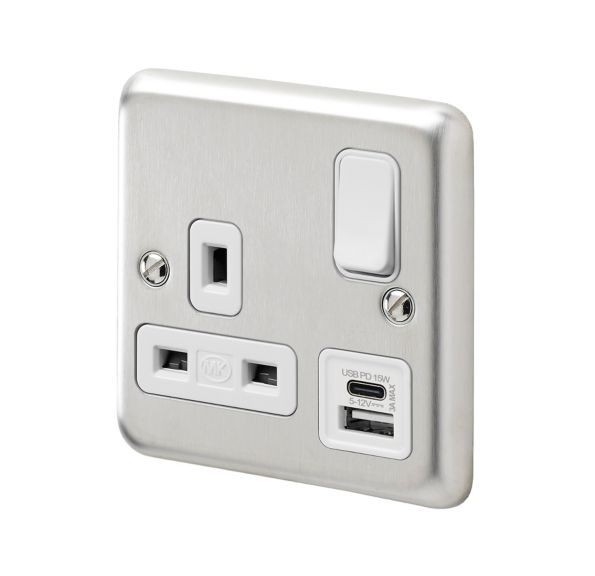

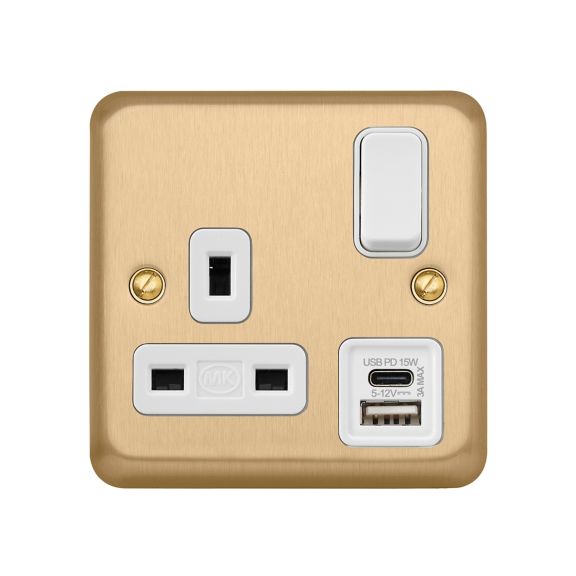

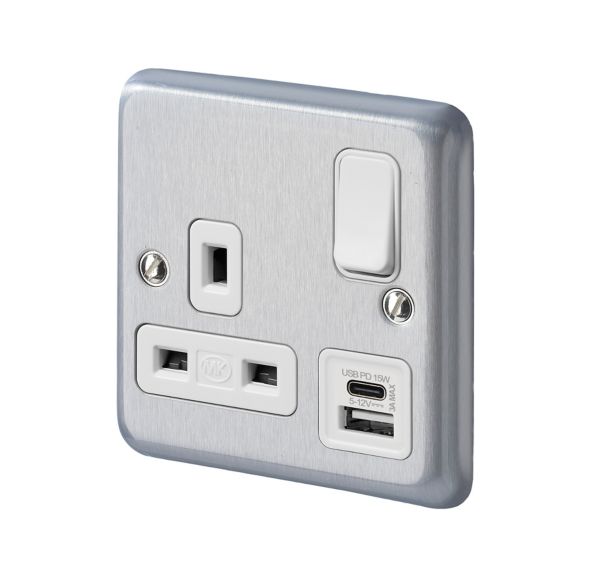

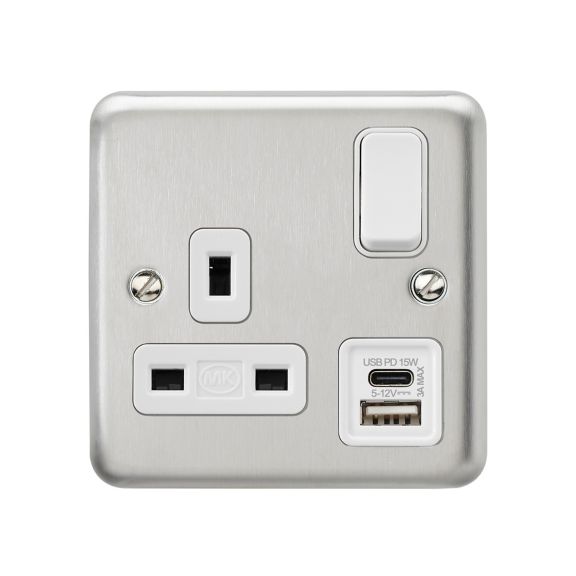

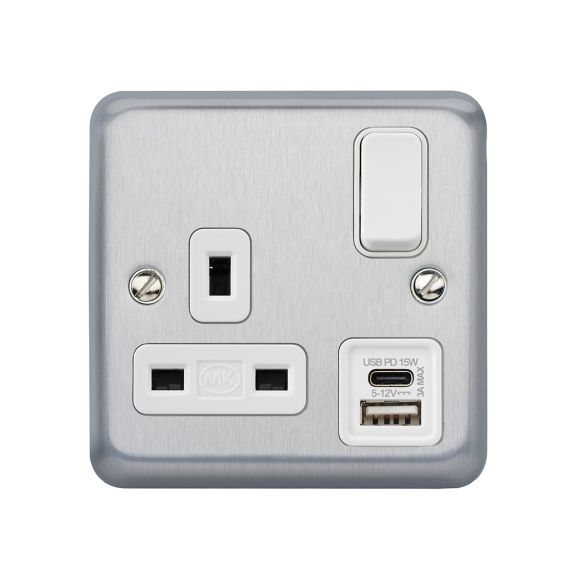

- Brushed Stainless Steel ; Brushed Chrome ; Satin Gold ; Matt Black
- Gangs
- 1 volt
