Power Amplifiers
EVS Intelligent Amplifier
Discontinued
The EVS Series intelligent amplifiers are used with Version 14.0 or newer 6820EVS to amplify audio messages for distribution throughout a facility.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
EVS intelligent amplifiers areused to amplify audio messages for distribution throughout a facility. They are used with 5820XL-EVS or 6820EVS and arecapable of producing 50, 100, or 125W of audio power. These amplifiers arefully supervised by the main panel for trouble conditions.
Features & Benefits:- Comes with 4 fully programmable Class A or Class B speaker circuits
- 25 or 70.7 Vrms operation
- Expansion up to 8 speaker circuits with the EVS-CE4
- Six wire connection to the 6820EVS system: two wires for the Voice Bus (VBUS) and four wires for the SBUS connections
- Can be mounted up to 6000 feet away from the 6820EVS control panel
- 120 VAC or 240 VAC operation
- UL 864 and UL 2572
- Meets the requirements for NFPA 72 Local Protective Signaling Systems & Emergency Communication Systems
- CSFM: 7165-0559:0500 (EVS-100W, EVS-125W)
- CSFM: 7165-559:0172 (EVS-50W)
Specifications
Others
- Brand
- Farenhyt
- Silent Knight
Others
- Brand
- Farenhyt
- Silent Knight
- Brand : Farenhyt|Silent Knight
Name
Date
Size
_blank
Brand@brand
Please sign in to view part numbers available for purchase based on your account Sign In
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list

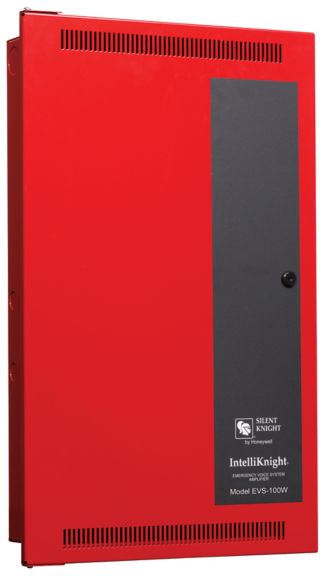

EVS-100W
Intelligent Amplifier: 50100W
https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-evs-100w-assy-fnl-evs-100w-amp-module-sk
EVS-100W
Intelligent Amplifier: 50100W
https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-evs-100w-assy-fnl-evs-100w-amp-module-sk
EVS-100WBU
External Backup Amplifier for EVS-100W: 100W
EVS-100WBU
External Backup Amplifier for EVS-100W: 100W

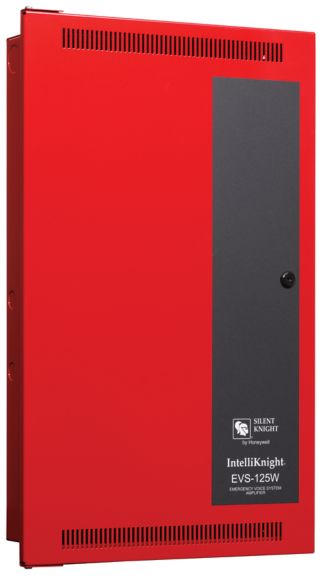

EVS-125W
Intelligent Amplifier: 125W
https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-evs-125w-assy-fnl-amplifier-evs-125w-sk
EVS-125W
Intelligent Amplifier: 125W
https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-evs-125w-assy-fnl-amplifier-evs-125w-sk

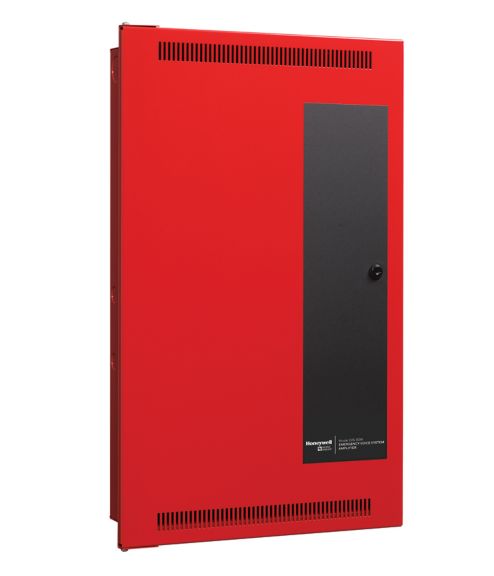

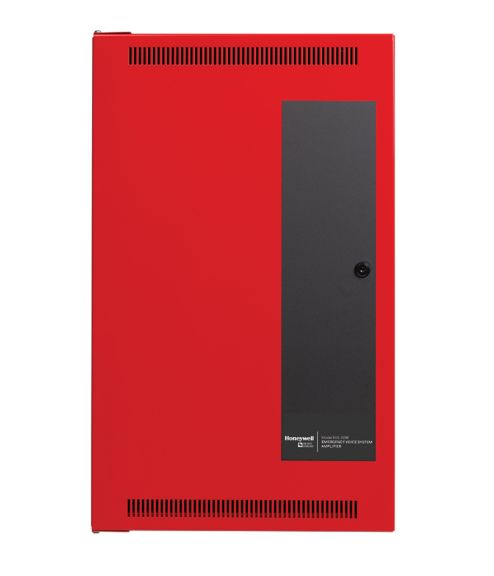

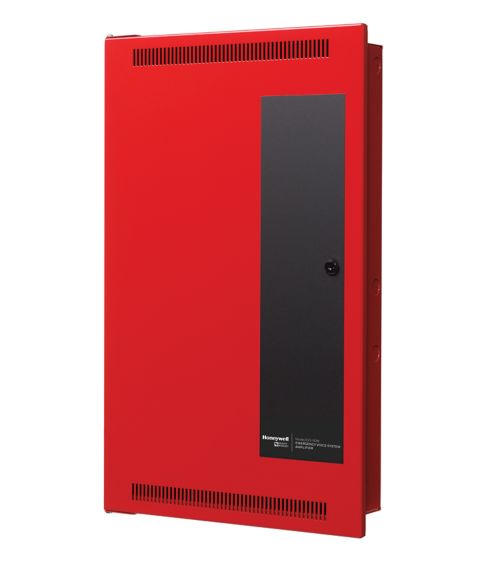

EVS-50W
Intelligent Amplifier: 50W
https://honeywell.scene7.com/is/image/Honeywell65/HBT-Fire-EVS-50W-STRAIGHT-HiRes
EVS-50W
Intelligent Amplifier: 50W
https://honeywell.scene7.com/is/image/Honeywell65/HBT-Fire-EVS-50W-STRAIGHT-HiRes
