Power Amplifiers
Intelligent 125-Watt Amplifier
ECS-125W Amplifiers are capable of producing 125-watts of audio power. Up to eight ECS-125Ws can be used on the voice evacuation system.
Overview
Each ECS-125W Amplifier is capable of producing 125-watts of audio power. Up to eight ECS-125Ws can be used on the voice evacuation system. The ECS-125W amplifier has its own power supply with battery backup and four speaker circuits which can be expanded to eight speaker circuits with the optional ECS-CE4. The ECS-125W is fully supervised by the main panel for trouble conditions.
Features & Benefits:- SBUS addressable, up to eight ECS-125Ws per system for a total of 1000 watts
- Each ECS-125W is supervised and has four onboard audio circuits expandable to eight for a system total of 64 audio circuits
- ECS-125W uses an easy to install wire harness to connect the ECS-CE4 audio circuit expander
- Can be mounted up to 6000 feet away from ECS-Series panel
- The ECS-125W has it’s own power supply and backup battery
- Two-wires for the voice bus and four-wires for the SBUS connections

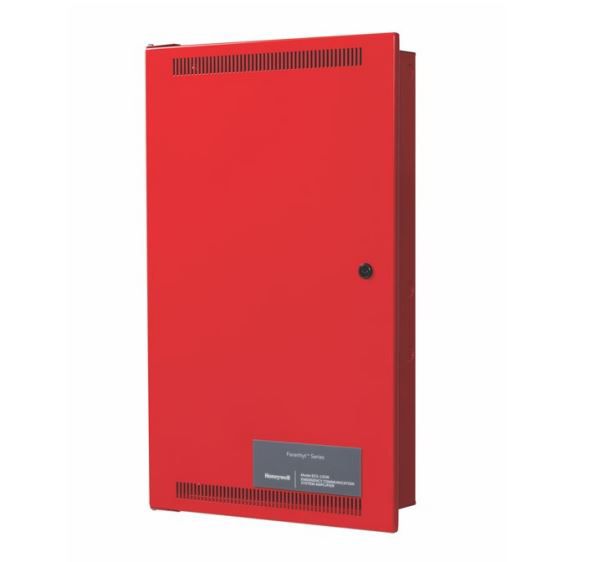

- Available in a red or black cabinet
- 120V AC or 240V AC operation
- NFPA 13
- NFPA 70
- NFPA 72
- UL 1711
- UL 2572
- UL 864
Others
Name
Description
File Size
Date
Size
ECS-125W Amplificador inteligente de 125 vatios Data Sheet
application/pdf 372.77 KB
5/14/2023
372.77 KB
PGWM.S2766 Control and Communication Equipment-Listing
application/pdf 17.55 KB
5/14/2023
17.55 KB
Regulatory Information
Name
Description
File Size
Date
Size
IFP-100ECS-IFP-1000ECS Fire Listing
application/pdf 169.31 KB
5/14/2023
169.31 KB
IFP-100ECS and IFP1000ECS Fire Alarm Control Units
application/pdf 169.29 KB
5/14/2023
169.29 KB
Name
Description
File Size
Date
Size
IFP-100ECS-IFP-1000ECS Fire Listing
application/pdf 169.31 KB
5/14/2023
169.31 KB
ECS-125W Amplificador inteligente de 125 vatios Data Sheet
application/pdf 372.77 KB
5/14/2023
372.77 KB
PGWM.S2766 Control and Communication Equipment-Listing
application/pdf 17.55 KB
5/14/2023
17.55 KB
IFP-100ECS and IFP1000ECS Fire Alarm Control Units
application/pdf 169.29 KB
5/14/2023
169.29 KB
Name
Description
File Size
Date
Size
ECS-125W Amplificador inteligente de 125 vatios Data Sheet
372.77 KB
5/14/2023
PGWM.S2766 Control and Communication Equipment-Listing
17.55 KB
5/14/2023
IFP-100ECS and IFP1000ECS Fire Alarm Control Units
169.29 KB
5/14/2023
Product Number
Please Sign In to view part numbers available for purchase based on your account
Part Number
Description
Add to list
ECS-125W
Intelligent 125-Watt Amplifier
ECS-125WB
Watt Amplifier, 120V AC, 60Hz, 125W, 7 -35AH
ECS-125WBCB
CABINET ONLY FOR ECS-125W - BLACK CABINET
ECS-125WBD
Assembly: Fnl: ECS A 125 W Board Only: SK
ECS-125WHV
Watt Amplifier, 240V AC, 50Hz, 125W, 7 -35AH
