ANN-100 Remote Annunciator

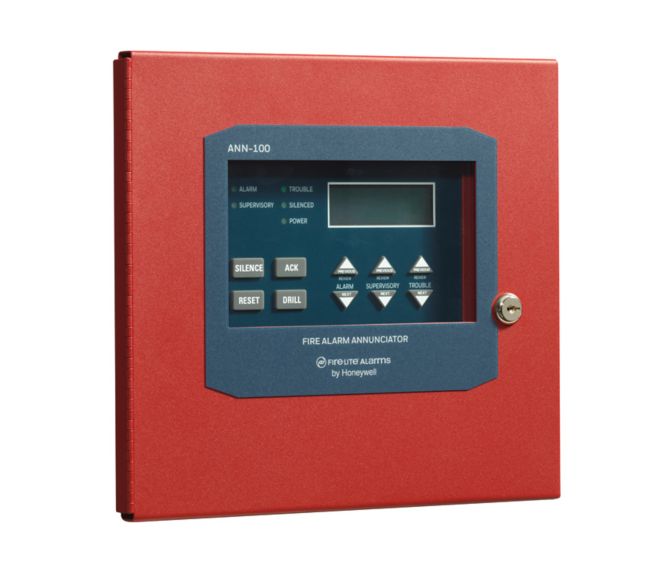

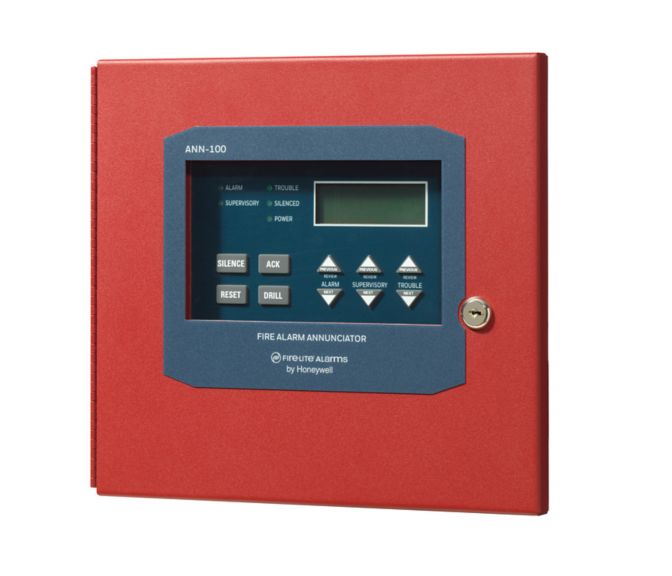

The ANN-100 annunciator is a backlit, 80-character LCD fireannunciator that mimics the Fire Alarm Control Panel (FACP) display.

Overview

The ANN-100 annunciator provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions. The ANN-100 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Connected devices are powered via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.

Features & Benefits:
  • Approved for use in Canada
  • Control switches for System Acknowledge, Signal Silence, Drill, and Reset
  • Control switches can be independently enabled or disabled at the FACP
  • Keyswitch enables/disables control switches and mechanically locks annunciator enclosure
  • Enclosure supervised for tamper
  • Local sounder can be enabled or disabled at the FACP
  • Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alphalabels
  • Surface mount directly to wall
  • Can be remotely located up to 6,000 feet (1,800 m) from the panel
  • Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs
Certifications:
  • UL Listed: S2424
  • ULC Listed
  • FM Approved
  • CSFM: 7120-0075:0211
  • MEA: 442-06-E
Specifications

Others

  • Product Type
    • Annunciator
  • Brand
    • Fire-Lite

Others

  • Product Type
    • Annunciator
  • Brand
    • Fire-Lite
  • Product Type : Annunciator
  • Brand : Fire-Lite
Sort
Others
Document Title
Document Type
File Size
Document Language
Brand
Drawing or Diagram
0.08 MB
Installation Instructions
Document Title
Document Type
File Size
Document Language
Brand
Document Title
Document Type
File Size
Document Language
Brand
Drawing or Diagram
0.08 MB
Product Number
SKU
Description
alt
ANN-100
Remote Annunciator, Backlit 80-Character LCD, 24VDC
SKU
Description
alt
ANN-100
Remote Annunciator, Backlit 80-Character LCD, 24VDC
