LCD Annunciator
LCD Annuciators by Honeywell are provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.
Overview

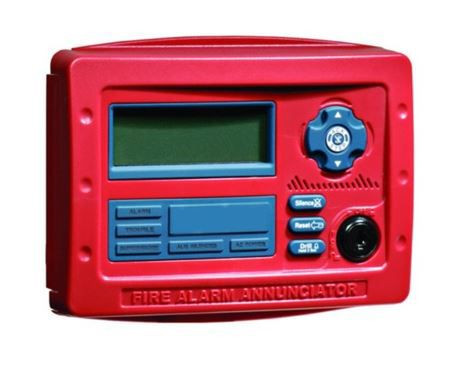

The 315-080 annunciator is a compact, backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions. The 315-080 and the FACP communicate over a two-wire serial interface employing the Repeater-Bus communication format. Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.
Features & Benefits:- Enclosure supervised for tamper
- System status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silence
- Local sounder can be enabled or disabled at the FACP
- 315-080 connects to the Repeater-Bus terminal on the FACP and requires minimal panel programming
- Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels
- Time and date display field
- UL Listed: S36108
Specifications
Others
- Display Size
- 20 Characters x 4 Lines
- Maximum Operating Humidity
- ±93 Percentage
- Minimum Operating Humidity
- ±2 Percentage
- Compatible Environments
- Yes
- Maximum Wire Size
- 14
- 2.08 mm²
- Light Bulb Type
- LED
- Minimum Wire Size
- 0.75 mm²
- 18
- Brand
- Morley-IAS
- Addressing Style
- ANN-Bus Unique
Others
- Display Size
- 20 Characters x 4 Lines
- Maximum Operating Humidity
- ±93 Percentage
- Minimum Operating Humidity
- ±2 Percentage
- Compatible Environments
- Yes
- Maximum Wire Size
- 14
- 2.08 mm²
- Light Bulb Type
- LED
- Minimum Wire Size
- 0.75 mm²
- 18
- Brand
- Morley-IAS
- Addressing Style
- ANN-Bus Unique
- Display Size : 20 Characters x 4 Lines
- Maximum Operating Humidity : ±93 Percentage
- Minimum Operating Humidity : ±2 Percentage
- Compatible Environments : Yes
- Maximum Wire Size : 14|2.08 mm²
- Light Bulb Type : LED
- Minimum Wire Size : 0.75 mm²|18
- Brand : Morley-IAS
- Addressing Style : ANN-Bus Unique
Product Number
SKU
Description
315-080
LCD Annunciator, 220-240V AC, 50-60Hz, 3.4W-3.9VA
SKU
Description
315-080
LCD Annunciator, 220-240V AC, 50-60Hz, 3.4W-3.9VA
