Annunciators & Keypads

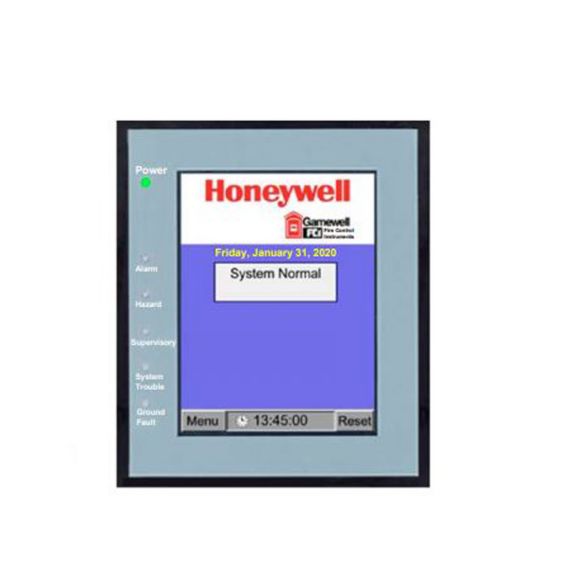

NGA Network Graphic Annunciator

NGA network graphic annunciators are used with Gamewell-FCI® E3 Series® systems and feature a bright, backlit 1/4-inch video graphics array (VGA) display.

Overview

NGA network graphic annunciators are used with Gamewell-FCI® E3 Series® systems. The bright, backlit 1/4-inch video graphics array (VGA) display is supplemented with an intuitive, easy-to-use touchscreen interface that provides up to 512 user-defined messages (up to 77 characters in length) with a selectable font and color for each message. These annunciators indicate events stored in the system event log, the status of analog addressable monitor and control points, and provide diagnostic fault codes/messages. They can be mounted in an enclosure or remotely located.

Features & Benefits:
  • 1/4-inch VGA display multipurpose touchscreen provides 512 user-defined messages (up to 77 characters in length) with a selectable font and color for each message
  • Software programmable touchscreen interface
  • 625K baud ARCNET communications
  • User-friendly design
  • Includes an RS-232 interface
Certifications:
  • UL Standard 864, 9th Edition
  • UL Standard UL2572 for Mass Notification
  • UL Listed: S1869
  • FM Approved 3017416
  • MEA FDNY: COA# 6077
  • CSFM: 7165-1703-0125
  • City of Chicago: Class 1, Class 2 and High Rise
  • City of Denver
Specifications

Others

  • Maximum Operating Humidity
    • 93 Percentage
  • Minimum Operating Humidity
    • 0 Percentage
  • Alarm Current
    • 0.2 ampere
  • Brand
    • Gamewell-FCI

Others

  • Maximum Operating Humidity
    • 93 Percentage
  • Minimum Operating Humidity
    • 0 Percentage
  • Alarm Current
    • 0.2 ampere
  • Brand
    • Gamewell-FCI
  • Maximum Operating Humidity : 93 Percentage
  • Minimum Operating Humidity : 0 Percentage
  • Alarm Current : 0.2 ampere
  • Brand : Gamewell-FCI
Sort
Others
Document Title
Document Type
File Size
Engineering Specifications
0.08 MB
Engineering Specifications
0.35 MB
Engineering Specifications
0.08 MB
Engineering Specifications
0.35 MB
Engineering Specifications
0.08 MB
Engineering Specifications
0.41 MB
Engineering Specifications
Document Title
Document Type
File Size
Engineering Specifications
0.10 MB
Manuals and Guides
Document Title
Document Type
File Size
Data Sheet
Document Title
Document Type
File Size
Catalog
Document Title
Document Type
File Size
Product Number
SKU
Description
alt
1100-0505
Network graphic annunciator, 512 User-Defined Messages, 24V DC, 0.2A, 0 to 49C
alt
NGA
Network Graphic Annunciator, 512 User-Defined Messages, 24V DC
SKU
Description
alt
1100-0505
Network graphic annunciator, 512 User-Defined Messages, 24V DC, 0.2A, 0 to 49C
alt
NGA
Network Graphic Annunciator, 512 User-Defined Messages, 24V DC
