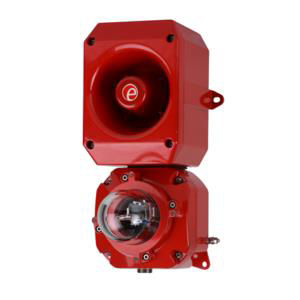

D2xC2XH2 UL464/UL1971 Horn & Xenon Strobe Synchronized

The D2xC2XH2 is a 63.73cd auto-synchronizing alarm horn & Xenon warning light / beacon tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications.

Multiple D2xC2XH2 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules in the circuit. The horn & strobe can be powered from the same source, simplifying installation and reducing cabling costs. The unit is UL/cUL & ULC approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 hazardous area applications.

• Public mode fire use UL464/UL1971 & CAN/ULC-S525/S526
• Auto-synchronized for over 2 hours per UL1971
• 63.73 eff. candela – UL1971 Public mode fire
• 107dB(A) @ 10ft/3m max. sound output – UL464
• 64 alarm tones, 4 remotely selectable alarm stages/channels
• Ultra low combined operating current of 405mA
• In rush limiting circuit – 2.3A for 9ms
• Choice of three UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz
• Marine grade aluminum enclosure
• Ingress protection Type 4/4X/3R/13, IP66
• High impact resistant Borosilicate glass lens
• Duplicate, pluggable cable terminations
• Supervisory diode
• Dual 1/2"NPT entries
• Supplied with haz loc rated stopping plugs/adaptors

• UL File ref: E230764
• IECEx cert: IECEx ULD 14.0004X
• ATEX cert: DEMKO 14 ATEX 4786493904X
• CSFM certificate: 7136-2279:0501
