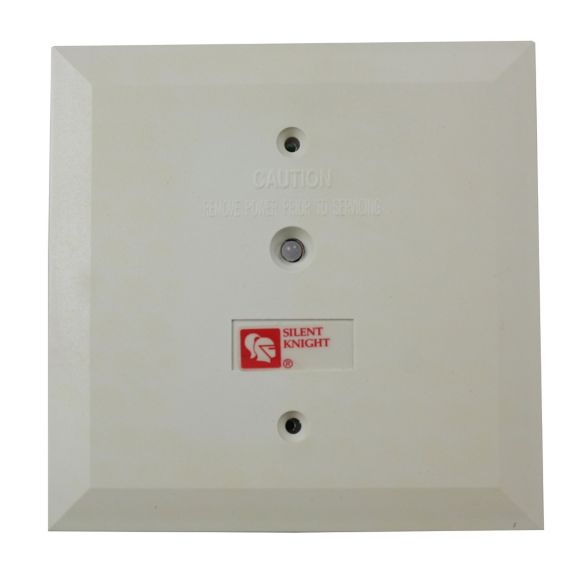

SD500-ANM Addressable Notification Module

SD500-ANM addressable notification modules are for use with the Honeywell Silent Knight® fire alarm control panel (FACP). SD500-ANM addressable notification modulesprovide a single class A or B circuit that is controlled by the IntelliKnight® signaling line circuit (SLC). Power for the circuit is provided to the SD500-ANM module from a separate power supply, making it easy to power remote devices. The notification circuit, remote power, and communication to the SD500-ANM are supervised by the FACP. Each notification module is programmed with a unique SLC loop address. When an event that controls the notification module occurs, the notification switches its built-in relay feeding power from the auxiliary power input to the notification appliance. SD500-ANM addressable notification modulescan produce all 16 of the notification patterns available on the fire alarm control panel.

• Flexible solution for adding notification circuits where needed
• DIP switch programming for fast installation
• Support for Class B (Style Y) or Class A (Style Z) wiring
• Attractive ivory cover plate
• Polling LED visible through the cover plate
• Adds up to 127 independent output circuits on each SLC loop
• One auxiliary power source input
• Completely supervised

• UL Listed, Complies with NFPA 72
• CSFM
• MEA 429-92-E, Vol 9
• FM Approved
