    Combination Strobes

    L-Series Ceiling Chime Strobe

    L-Series chime strobes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and to take appropriate action.

    Overview

    L-Series chime strobes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and to take appropriate action. Security guard and nurse workstations are ideal locations for these chimes and chime strobes.

    All devices feature plug-in design with minimal intrusion into the backbox, making the installation fast and foolproof while virtually eliminating costly and time-consuming ground faults. Installers can easily adapt devices to a wide range of application requirements using field-selectable candela settings, automatic selection of 12 or 24V operation, and a rotary switch for chime tones and two volume selections.

    Features & Benefits:
    • Updated modern aesthetics
    • Plug-in design with minimal intrusion into the backbox
    • Mounting plate shorting spring feature checks wiring continuity before device installation
    • Captive mounting screw
    • Tamper-resistant construction
    • Field-selectable candela settings for ceiling-mount devices: 15, 30, 75, 95, 115, 150, 177
    • Automatic selection of 12 or 24V operation at 15 and 30 candela
    • Rotary switch for tone and volume selections
    • Five selectable tones with high and low volume settings
    • Electrically compatible with legacy SpectrAlert and SpectrAlert
    Certifications:
    • UL Listed: S4011
    • ULC Listed: S4011
    • FM Approved: 3057383; 3057072
    • CSFM: 7135-1653:0503
    Specifications

    Others

    • Mounting Type
      • Ceiling
    • Product Type
      • Chime Strobe
    • Brand
      • Farenhyt
      • Gamewell-FCI
      • NOTIFIER
      • System Sensor

    Others

    • Mounting Type
      • Ceiling
    • Product Type
      • Chime Strobe
    • Brand
      • Farenhyt
      • Gamewell-FCI
      • NOTIFIER
      • System Sensor
    • Mounting Type : Ceiling
    • Product Type : Chime Strobe
    • Brand : Farenhyt|Gamewell-FCI|NOTIFIER|System Sensor
    Others
    Name
    Description
    File Size
    Date
    Size
    L-Series Chime Strobe Engineering Specification
    application/pdf 95.65 KB
    10/3/2024
    95.65 KB
    AV L-Series Products Brochure
    application/pdf 2.36 MB
    10/3/2024
    2.36 MB
    CHSCWL BIM File
    application/x-tika-msoffice 1.54 MB
    10/3/2024
    1.54 MB
    CHSCRL BIM File
    application/x-tika-msoffice 1.54 MB
    10/3/2024
    1.54 MB
    L-Series Selectable Output Chimes and Chime-Strobes Datasheet
    application/pdf 2.57 MB
    2/11/2017
    2.57 MB
    AV Appliance Applications Guide
    application/pdf 622.15 KB
    10/3/2024
    622.15 KB
    L-Series: Chime Strobe (Ceiling) CAD-BIM
    application/zip 3.27 MB
    10/3/2024
    3.27 MB
    L-Series: Horn Strobe (Ceiling) CAD-BIM
    application/zip 3.75 MB
    10/3/2024
    3.75 MB
    L-Series Chimes and Chime - Strobes Data Sheet
    application/pdf 290.48 KB
    2/1/2018
    290.48 KB
    L-Series: Eng. Specs - Chime Strobes Engineering Specs
    application/pdf 95.76 KB
    10/3/2024
    95.76 KB
    Chime Strobes Engineering Specs
    application/pdf 59.39 KB
    5/14/2023
    59.39 KB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    L-Series: Horn Strobes, Chime Strobes, and Strobes - Ceiling (I56-5846) Manual
    application/pdf 2.41 MB
    10/3/2024
    2.41 MB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    L-Series Chimes and Chime-Strobes Data Sheet
    application/pdf 196.54 KB
    3/1/2018
    196.54 KB
    Selectable OutputChimes and Chime-Strobes Datasheet
    application/pdf 2.99 MB
    3/1/2017
    2.99 MB
    Catalog
    Name
    Description
    File Size
    Date
    Size
    Flyer: L-Series-SAA X-Ref Brochure
    application/pdf 181.48 KB
    10/3/2024
    181.48 KB
    Name
    Description
    File Size
    Date
    Size
    L-Series Chime Strobe Engineering Specification
    application/pdf 95.65 KB
    10/3/2024
    95.65 KB
    Flyer: L-Series-SAA X-Ref Brochure
    application/pdf 181.48 KB
    10/3/2024
    181.48 KB
    AV L-Series Products Brochure
    application/pdf 2.36 MB
    10/3/2024
    2.36 MB
    CHSCWL BIM File
    application/x-tika-msoffice 1.54 MB
    10/3/2024
    1.54 MB
    CHSCRL BIM File
    application/x-tika-msoffice 1.54 MB
    10/3/2024
    1.54 MB
    L-Series Selectable Output Chimes and Chime-Strobes Datasheet
    application/pdf 2.57 MB
    2/11/2017
    2.57 MB
    AV Appliance Applications Guide
    application/pdf 622.15 KB
    10/3/2024
    622.15 KB
    L-Series: Chime Strobe (Ceiling) CAD-BIM
    application/zip 3.27 MB
    10/3/2024
    3.27 MB
    L-Series: Horn Strobe (Ceiling) CAD-BIM
    application/zip 3.75 MB
    10/3/2024
    3.75 MB
    L-Series: Horn Strobes, Chime Strobes, and Strobes - Ceiling (I56-5846) Manual
    application/pdf 2.41 MB
    10/3/2024
    2.41 MB
    L-Series Chimes and Chime - Strobes Data Sheet
    application/pdf 290.48 KB
    2/1/2018
    290.48 KB
    L-Series: Eng. Specs - Chime Strobes Engineering Specs
    application/pdf 95.76 KB
    10/3/2024
    95.76 KB
    L-Series Chimes and Chime-Strobes Data Sheet
    application/pdf 196.54 KB
    3/1/2018
    196.54 KB
    Chime Strobes Engineering Specs
    application/pdf 59.39 KB
    5/14/2023
    59.39 KB
    Selectable OutputChimes and Chime-Strobes Datasheet
    application/pdf 2.99 MB
    3/1/2017
    2.99 MB
    Name
    Description
    File Size
    Date
    Size
    L-Series Chime Strobe Engineering Specification
    95.65 KB
    10/3/2024
    AV L-Series Products Brochure
    2.36 MB
    10/3/2024
    CHSCWL BIM File
    1.54 MB
    10/3/2024
    CHSCRL BIM File
    1.54 MB
    10/3/2024
    L-Series Selectable Output Chimes and Chime-Strobes Datasheet
    2.57 MB
    2/11/2017
    AV Appliance Applications Guide
    622.15 KB
    10/3/2024
    L-Series: Chime Strobe (Ceiling) CAD-BIM
    3.27 MB
    10/3/2024
    L-Series: Horn Strobe (Ceiling) CAD-BIM
    3.75 MB
    10/3/2024
    L-Series Chimes and Chime - Strobes Data Sheet
    290.48 KB
    2/1/2018
    L-Series: Eng. Specs - Chime Strobes Engineering Specs
    95.76 KB
    10/3/2024
    Chime Strobes Engineering Specs
    59.39 KB
    5/14/2023
    L-Series: Horn Strobes, Chime Strobes, and Strobes - Ceiling (I56-5846) Manual
    2.41 MB
    10/3/2024
    L-Series Chimes and Chime-Strobes Data Sheet
    196.54 KB
    3/1/2018
    Selectable OutputChimes and Chime-Strobes Datasheet
    2.99 MB
    3/1/2017
    Flyer: L-Series-SAA X-Ref Brochure
    181.48 KB
    10/3/2024
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    CHSCRL

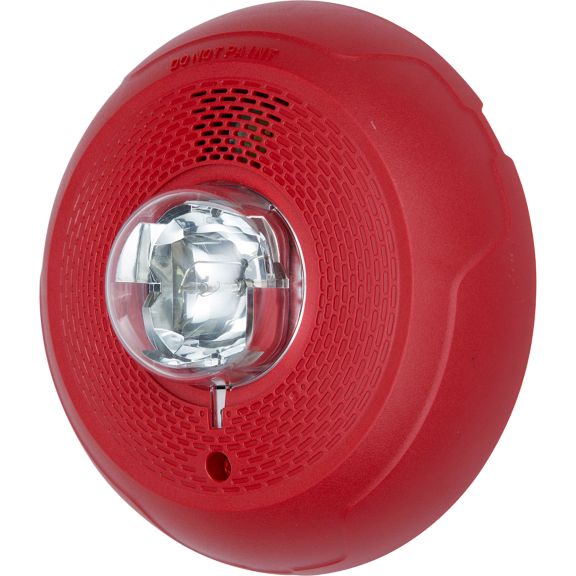

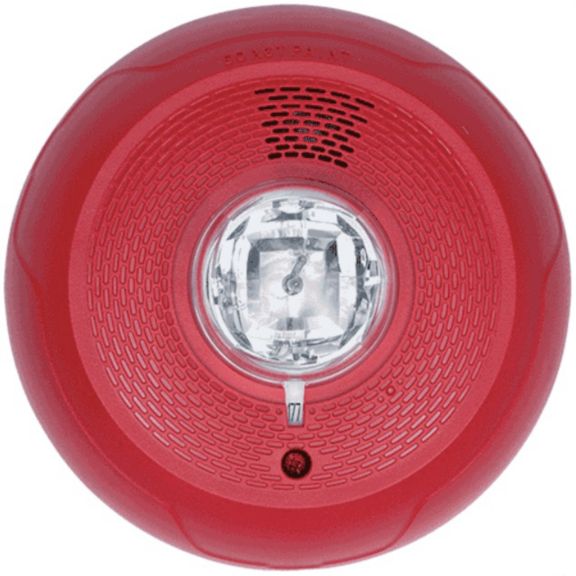

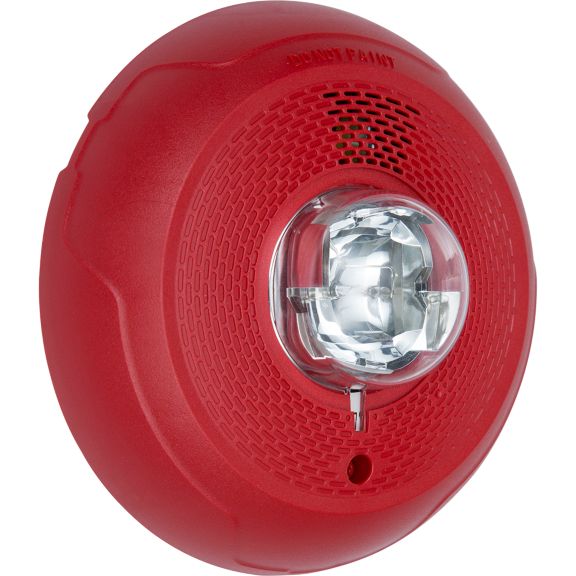

    Chime Strobe: Ceiling Mount: Red: 4x4in Backbox
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-CHSCRL-CEILING-primaryimage
    CHSCRL
    Chime Strobe: Ceiling Mount: Red: 4x4in Backbox
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-CHSCRL-CEILING-primaryimage
    CHSCWL

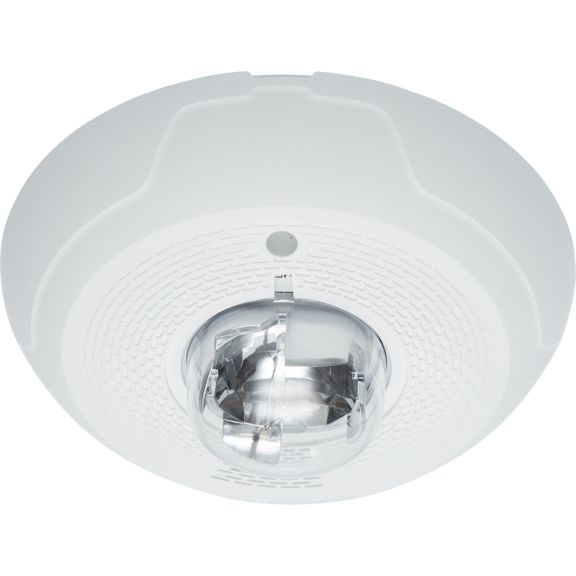

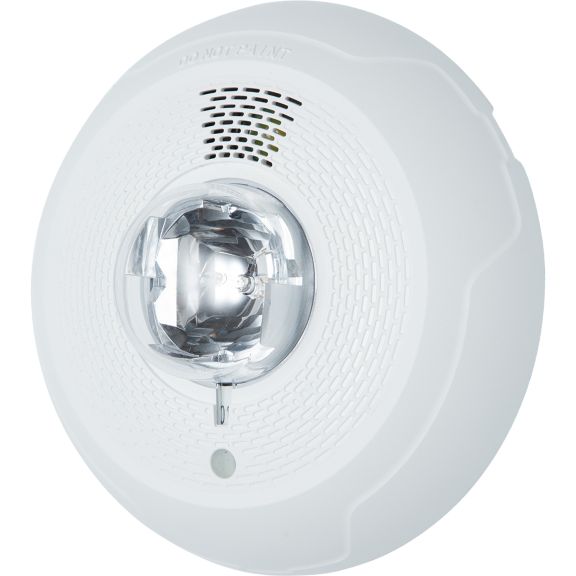

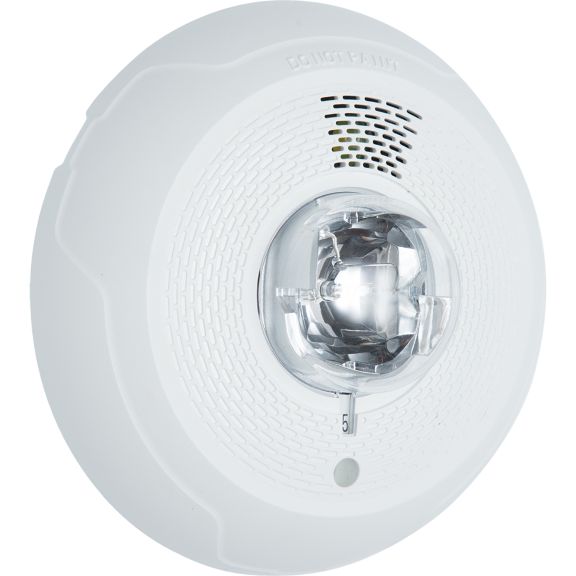

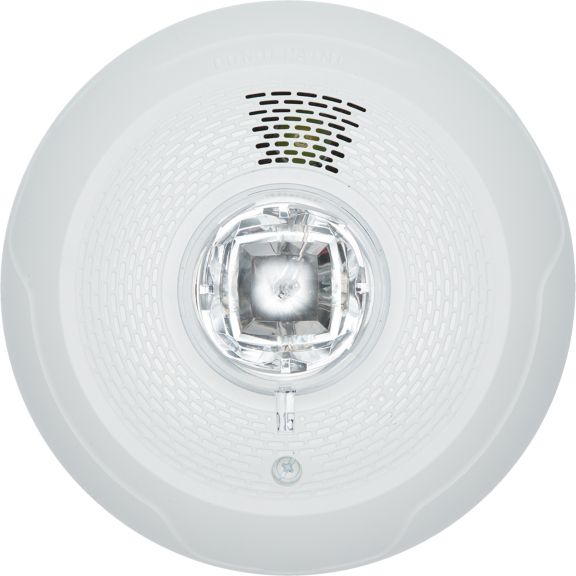

    Chime Strobe: Ceiling Mount: White: 4x4in Backbox
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-CHSCWL-CEILING
    CHSCWL
    Chime Strobe: Ceiling Mount: White: 4x4in Backbox
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-CHSCWL-CEILING
