    Temperature Sensors

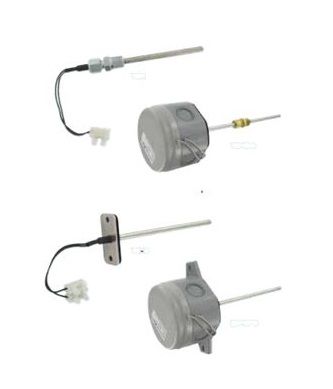

    TE Duct and Immersion Temperature Sensor

    TE Duct Temperature Sensor can be used to monitor air or water temperature throughout a building management system or air handler unit. Flanged duct sensors monitor the supply or return air and provide a thermistor output to the digital controller.

    Overview

    The Series TE Duct and Immersion Temperature Sensor can be used to monitor air or water temperature throughout a building management system or an air handler unit. Flanged duct sensors monitor the supply or return air and provide a thermistor or RTD output to the digital controller. Immersion sensors which are supplied with compression fittings are typically used to monitor the hot or chilled water lines throughout a building. Thermowells are recommended, but not required on the immersion sensors. For variable air volume applications, the Series TE can be configured to have 8´ plenum rated cable with flying leads. Standard units come with 4˝ leads with an integral terminal block to eliminate carrying extra wire nuts. For housing models, multiple knockouts provide easy conduit access to any side of the housing. The 1/4 turn lid comes with a chain to prevent it from being lost during installation

    Features & Benefits:
    • Easy to mount external tab housing and flange options for duct applications
    • 1/4 turn housing cover with chain to prevent dropping
    • Multiple conduit knockouts for easy installation positioning
    • 4" leads with an integral terminal block
    • Terminal connector eliminates need for wire nuts
    • 1/4" diameter probe
    Certifications:
    • CE Approval
    • GOST-R Certificate
    • RoHS Letter of Compliance
    Specifications

    Others

    • Minimum Operating Ambient Temperature
      • -40 degree Celsius
      • -40 degree Fahrenheit
    • Maximum Operating Ambient Temperature
      • 150 degree Celsius
      • 302 degree Fahrenheit
    • Brand
      • Alerton
    • Detector Type
      • Duct Temperature
    • Product Type
      • Sensor Degrees Celsius
    • Mounting Type
      • Duct inch

    Others

    • Minimum Operating Ambient Temperature
      • -40 degree Celsius
      • -40 degree Fahrenheit
    • Maximum Operating Ambient Temperature
      • 150 degree Celsius
      • 302 degree Fahrenheit
    • Brand
      • Alerton
    • Detector Type
      • Duct Temperature
    • Product Type
      • Sensor Degrees Celsius
    • Mounting Type
      • Duct inch
    • Minimum Operating Ambient Temperature : -40 degree Celsius|-40 degree Fahrenheit
    • Maximum Operating Ambient Temperature : 150 degree Celsius|302 degree Fahrenheit
    • Brand : Alerton
    • Detector Type : Duct Temperature
    • Product Type : Sensor Degrees Celsius
    • Mounting Type : Duct inch
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    TE-DFG-B0444-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 4in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b0444-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B0444-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 4in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b0444-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B0644-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 6in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b0644-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B0644-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 6in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b0644-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B0844-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 8in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b0844-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B0844-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 8in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b0844-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B1244-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 12in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b1244-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B1244-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 12in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b1244-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B1844-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 18in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b1844-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B1844-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 18in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b1844-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B2544-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 2.5in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b2544-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-B2544-00
    Air Duct Temperature Sensor with Housing, 10K ohm Type II Thermistor, 2.5in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-b2544-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C0444-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 4in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c0444-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C0444-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 4in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c0444-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C0644-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 6in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c0644-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C0644-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 6in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c0644-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C0844-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 8in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c0844-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C0844-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 8in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c0844-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C1244-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 12in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c1244-00-te-duct-and-immersion-temperature-sensor-primaryimage
    TE-DFG-C1244-00
    Air Duct Temperature Sensor with Housing, 3K ohm Thermistor, 12in Probe
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-te-dfg-c1244-00-te-duct-and-immersion-temperature-sensor-primaryimage
