    Emergency Voice / Alarm Communications System

    A Release Control Panel

    MX-2002 is a six-zone FACP for single and dual hazard agent releasing applications. The MX-2002 provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring agent-based releasing.

    Overview

    MX-2002 is a six-zone FACP for single and dual hazard agent releasing applications. The MX-2002 provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring agent-based releasing. The MX-2002 is compatible with System Sensor’s i3 detectors which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory ‘freeze’ signal when the ambient temperature falls below the detector rating of approximately 45°F (7.22°C). In addition, the control panel is compatible with conventional input devices such as two-wire smoke detectors, four-wire smoke detectors, pull stations, water flow devices, tamper switches and other normally-open contact devices.

    Features & Benefits:
    • Designed for agent releasing standards NFPA 12, 12A, 12B, and 2001
    • Disable/Enable control per input zone and output zone
    • Extensive transient protection
    • Dual hazard operation
    • Adjustable pre-discharge, discharge and water flow delay timers
    • Cross-zone (double-interlock) capability
    • Six programmable Style B (Class B) IDCs (Initiating Device Circuit)
    • System Sensor i3 series detector compatible
    • Four programmable Style Y (Class B) output circuits - (special application power)
    • 80-character LCD display (backlit).
    Certifications:
    • Listed to UL Standard 864, 9th edition
    • FM Approved
    Others
    Name
    Description
    File Size
    Date
    Size
    CE Declaration of Conformity
    application/pdf 132.87 KB
    5/14/2023
    132.87 KB
    Minimax DCD
    application/pdf 357.17 KB
    10/5/2023
    357.17 KB
    Name
    Description
    File Size
    Date
    Size
    CE Declaration of Conformity
    application/pdf 132.87 KB
    5/14/2023
    132.87 KB
    Minimax DCD
    application/pdf 357.17 KB
    10/5/2023
    357.17 KB
    Name
    Description
    File Size
    Date
    Size
    CE Declaration of Conformity
    132.87 KB
    5/14/2023
    Minimax DCD
    357.17 KB
    10/5/2023
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list

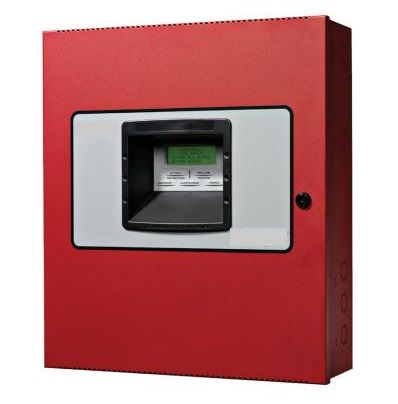

    MX-2002
    Agent Release Control Panel, Six- Zone, 24V DC, 120V AC, 60Hz, 3.66 Amps
    https://s7d1.scene7.com/is/image/Honeywell65/hbt-fire-mx2002-areleasecontrolpanel-primaryimage
    MX-2002
    Agent Release Control Panel, Six- Zone, 24V DC, 120V AC, 60Hz, 3.66 Amps
    https://s7d1.scene7.com/is/image/Honeywell65/hbt-fire-mx2002-areleasecontrolpanel-primaryimage
    MX-2002E
    Agent Release Control Panel, Six- Zone, 24V DC, 240V AC, 50Hz, 2.085 Amps
    https://s7d1.scene7.com/is/image/Honeywell65/hbt-fire-mx2002-areleasecontrolpanel-primaryimage
    MX-2002E
    Agent Release Control Panel, Six- Zone, 24V DC, 240V AC, 50Hz, 2.085 Amps
    https://s7d1.scene7.com/is/image/Honeywell65/hbt-fire-mx2002-areleasecontrolpanel-primaryimage
