Fire Alarm Control Panels

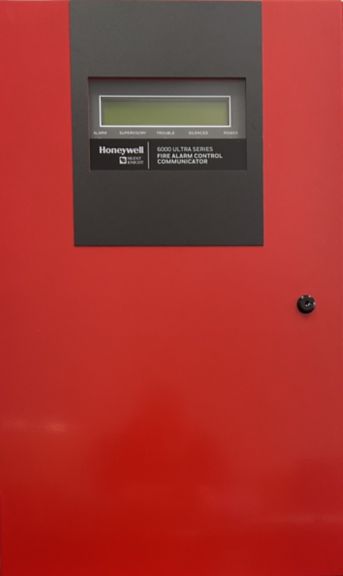

6820U ULTRA SERIES
The 6820U features an expandable SLC circuit, six Flexput circuits, dual-line DACT, powerful software features, and connectivity for up to 17 panels
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 6820U is the latest intelligent addressable FACP (Fire Alarm Control Panels) from Silent Knight and is a direct replacement for the 6820/5820XL FACP. The FACP has one built-in SLC (signaling line circuit), which can support 159 System Sensor® SK detectors and 159 SK modules, or 127 Hochiki® SD protocol devices. Additional SLC loops can be added for a maximum of 1110 (SK) or 635 (SD) points per panel
Features & Benefits:- Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards
- Expandable SLC loops to 1110 (SK) or 635 (SD) point capacity
- Eight Flexput circuits for NAC outputs or auxiliary power
- Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices
- Built-in DACT with IP and optional cellular reporting
- Built-in USB interface for quick and easy programming
- JumpStart® auto programming reduces installation time
- 999 software zones and 999 output groups for flexible design options
- 23 preset notification cadence patterns (including ANSI® 3.41)
- Allows up to 24 SBUS devices
- Four programmable function keys
- Two programmable relays and one fixed trouble relay
- Compatible with SWIFT® wireless devices
- Convenient field-upgradeable firmware
- Common Communications Link for up to 17 sites
- Network card allows copper network connection with a multi-mode or singlemode fiber connection
- Real-time clock/calendar with automatic daylight savings control
- History file with 1,000 event capacity
- Available in a red cabinet
- Surface mounting or flush mounting cabinet
