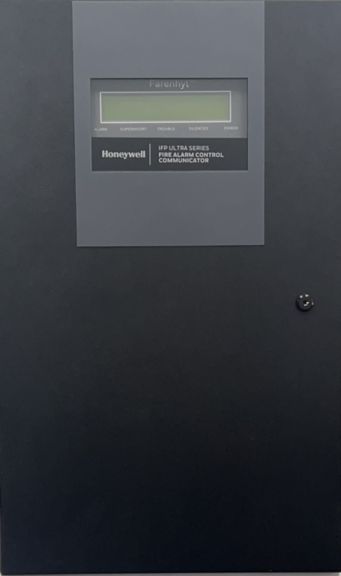

IFP-1100U ULTRA SERIES

The IFP-1100U (red) and IFP-1100B (black) are the latest intelligent addressable FACPs (Fire Alarm Control Panels) from Honeywell’s Farenhyt™ line and are direct replacements for the IFP-1000 and IFP-2000 FACPs. The FACPs have one built-in SLC (signaling line circuit), which can support 159 System Sensor® IDP/SK detectors and 159 IDP/SK modules, or 127 Hochiki® SD protocol devices. Additional SLC loops can be added for a maximum of 1100 (IDP/SK) or 2032 (SD) points per panel.

• Complies with UL 864 10th Edition and UL 2572 2nd Edition Standards
• Expandable SLC loops to 1100 (IDP/SK) or 2032 (SD) point capacity
• Eight Flexput circuits that can be setup for NAC outputs, auxiliary power, soundbase power, or conventional detector zone
• Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices
• Built-in DACT with IP and optional cellular reporting
• Built-in USB interface for quick and easy programming
• JumpStart® auto programming reduces installation time
• 999 software zones and 999 output groups for flexible design options
• 23 preset notification cadence patterns (including ANSI® 3.41)
• Allows up to 63 SBUS devices
• Four line LCD display with 40 characters per line
• Four programmable function keys
• Two programmable relays and one fixed trouble relay
• Compatible with SWIFT® wireless devices
• Convenient field-upgradeable firmware
• Network support for up to 32 Farenhyt Series Black panels
• Network card allows copper network connection with a multi-mode or single mode fiber connection
• Real-time clock/calendar with automatic daylight savings control
• History file with 1,000 event capacity
• Available in a red cabinet
• Surface mounting or flush mounting cabinet
