    Flame Detectors

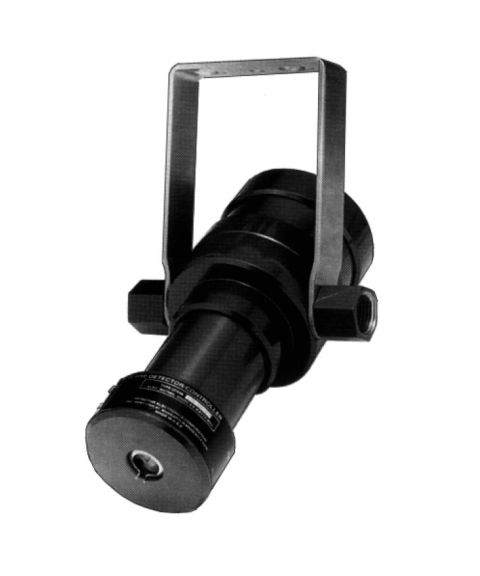

    Pyrotector 30-2056B IR Flame Detector

    Pyrotector 30-2056B IR flame detectors are compact, unitized packages containing an IR detection cell, solid state electronics, and dry Form C (SPDT) contacts for alarm and fault conditions.

    Overview

    Pyrotector 30-2056B IR flame detectors are compact, unitized packages containing an IR detection cell, solid state electronics, and dry Form C (SPDT) contacts for alarm and fault conditions. The detectors are engineered to respond to the nominal 4.45 micron band of infrared radiation, which is commonly known as the CO2 spike. A characteristic of burning hydrocarbons is the emission of unusually high levels of IR radiation in this narrow portion of the radiation spectrum. On the other hand, extraneous light sources that are capable of triggering an alarm in other types of fire detectors emit very low levels of radiation in this range. By concentrating on this narrow band of the spectral range that is highly specific to burning hydrocarbons, combined with the use of optical filters to discriminate against most extraneous background radiation from a variety of sources, including hot objects, the Model 30-2056B is able to provide a high level of reliable fire detection, while being relatively immune to false alarm signals. The detector is compatible with most 24V filtered DC 4-wire fire alarm control panels.

    Features & Benefits:
    • High immunity to false alarms caused by lightning, arc welding, X-rays, and sunlight
    • Compatible with standard alarm systems
    • Remote test feature assures reliable response
    • Explosion-proof and water-tight housing for use in a variety of applications
    Certifications:
    • SO 9001 Certified
    Specifications

    Others

    • Maximum Spectral Sensitivity
      • 4.7 µm
    • Maximum Standby Current
      • 300 µA
    • Detection Range
      • 50 foot
    • Minimum Spectral Sensitivity
      • 4.2 µm
    • Maximum Storage Temperature
      • 185 degree Fahrenheit
      • 85 degree Celsius
    • Minimum Storage Temperature
      • -55 degree Celsius
      • -67 degree Fahrenheit
    • Enclosure Material
      • Aluminum
    • Detector Type
      • Infrared
    • Compatible Environments
      • Indoor
      • Outdoor

    Others

    • Maximum Spectral Sensitivity
      • 4.7 µm
    • Maximum Standby Current
      • 300 µA
    • Detection Range
      • 50 foot
    • Minimum Spectral Sensitivity
      • 4.2 µm
    • Maximum Storage Temperature
      • 185 degree Fahrenheit
      • 85 degree Celsius
    • Minimum Storage Temperature
      • -55 degree Celsius
      • -67 degree Fahrenheit
    • Enclosure Material
      • Aluminum
    • Detector Type
      • Infrared
    • Compatible Environments
      • Indoor
      • Outdoor
    • Maximum Spectral Sensitivity : 4.7 µm
    • Maximum Standby Current : 300 µA
    • Detection Range : 50 foot
    • Minimum Spectral Sensitivity : 4.2 µm
    • Maximum Storage Temperature : 185 degree Fahrenheit|85 degree Celsius
    • Minimum Storage Temperature : -55 degree Celsius|-67 degree Fahrenheit
    • Enclosure Material : Aluminum
    • Detector Type : Infrared
    • Compatible Environments : Indoor|Outdoor
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    30-2056B Infrared Flame Detector Data Sheet
    application/pdf 275.14 KB
    5/14/2023
    275.14 KB
    30-2056B Data Sheet
    application/pdf 222.77 KB
    5/14/2023
    222.77 KB
    30-2056B Data Sheet
    application/pdf 222.77 KB
    5/14/2023
    222.77 KB
    Name
    Description
    File Size
    Date
    Size
    30-2056B Infrared Flame Detector Data Sheet
    application/pdf 275.14 KB
    5/14/2023
    275.14 KB
    30-2056B Data Sheet
    application/pdf 222.77 KB
    5/14/2023
    222.77 KB
    30-2056B Data Sheet
    application/pdf 222.77 KB
    5/14/2023
    222.77 KB
    Name
    Description
    File Size
    Date
    Size
    30-2056B Infrared Flame Detector Data Sheet
    275.14 KB
    5/14/2023
    30-2056B Data Sheet
    222.77 KB
    5/14/2023
    30-2056B Data Sheet
    222.77 KB
    5/14/2023
    Product Number
    Part Number
    Description
    Add to list
    30-2056B
    Infrared Flame Detector, Dry Form C (SPDT) Contacts, 18 to 32V DC
