    Multi-Criteria/Multi-Sensor Detectors

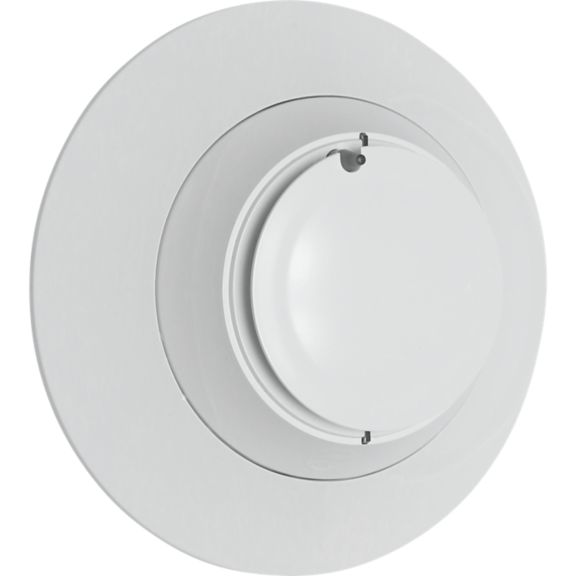

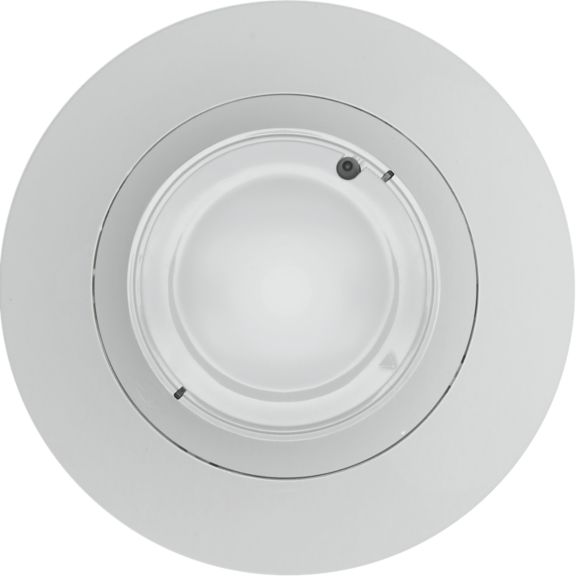

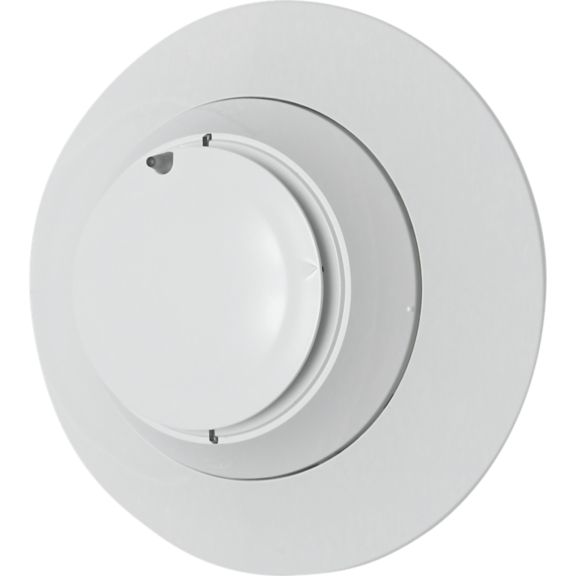

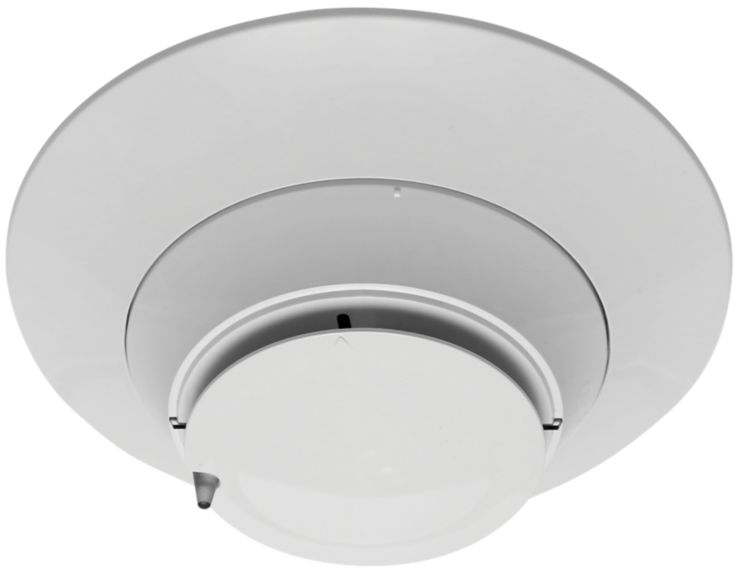

    AD365 Multi-Criteria Detector

    AD365 multi-criteria detectors are plug-in addressable detectors that combine photoelectric, thermal, and infrared (PTIR) sensors in one unit to sense multiple components of a fire.

    Overview

    AD365 multi-criteria detectors are plug-in addressable detectors that combine photoelectric, thermal, and infrared (PTIR) sensors in one unit to sense multiple components of a fire. This approach enables enhanced sensitivity to real fire with heightened immunity to nuisance particulates. Multiple sensors can greatly reduce nuisance alarms compared to single sensing methods, and sophisticated algorithms maximize the advantages of the sensor types. Photoelectric sensors detect airborne particles associated with smoke.

    Thermal sensors detect heat and rate-of-rise (135 °F fixed-temperature threshold), infrared sensors discern light patterns in the environment as an additional data-point for alarm determination. This ability to reject certain nuisance alarm triggers, such as theater smoke, supports the use of the detector in applications where moderate to heavy nuisance conditions exist that might cause single sensing detectors to trigger a false-alarm. The PTIR detector meets both UL 268 and UL 521 listing requirements and can indicate distinct smoke and heat alarms. This dual nature supports a local alarm setting for photoelectric detection and a general evacuation setting based on thermal detection.

    Features & Benefits:
    • Multi-criteria detection
    • Modern aesthetic
    • Analog communications
    • Low standby current
    • Rotary address switches
    • Dual LEDs for 360° visibility
    • Expanded color options
    • LiteSpeed™ protocol support on all models
    Certifications:
    • UL 268 CAN
    • UL S1059
    • ULC S529
    • FM Approved
    • CSFM: 7272-0075:0507
    Specifications

    Others

    • Brand
      • Fire-Lite
      • System Sensor

    Others

    • Brand
      • Fire-Lite
      • System Sensor
    • Brand : Fire-Lite|System Sensor
    Others
    Name
    Description
    File Size
    Date
    Size
    New Addressable Detectors from Fire-Lite Alarms Canada Press Release
    application/pdf 142.54 KB
    5/16/2023
    142.54 KB
    AD365 BIM File
    application/x-tika-msoffice 816 KB
    7/24/2023
    816 KB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    AD365 and AD365-IV Installation Manual
    application/pdf 635.91 KB
    5/8/2023
    635.91 KB
    Manuals and Guides
    Name
    Description
    File Size
    Date
    Size
    AD365(-IV) Multi-Criteria Detector Manual
    application/pdf 634.31 KB
    5/11/2023
    634.31 KB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    AD365(-IV) Multi-Criteria Detector Data Sheet
    application/pdf 173 KB
    8/1/2023
    173 KB
    Name
    Description
    File Size
    Date
    Size
    New Addressable Detectors from Fire-Lite Alarms Canada Press Release
    application/pdf 142.54 KB
    5/16/2023
    142.54 KB
    AD365 BIM File
    application/x-tika-msoffice 816 KB
    7/24/2023
    816 KB
    AD365 and AD365-IV Installation Manual
    application/pdf 635.91 KB
    5/8/2023
    635.91 KB
    AD365(-IV) Multi-Criteria Detector Data Sheet
    application/pdf 173 KB
    8/1/2023
    173 KB
    AD365(-IV) Multi-Criteria Detector Manual
    application/pdf 634.31 KB
    5/11/2023
    634.31 KB
    Name
    Description
    File Size
    Date
    Size
    New Addressable Detectors from Fire-Lite Alarms Canada Press Release
    142.54 KB
    5/16/2023
    AD365 BIM File
    816 KB
    7/24/2023
    AD365 and AD365-IV Installation Manual
    635.91 KB
    5/8/2023
    AD365(-IV) Multi-Criteria Detector Manual
    634.31 KB
    5/11/2023
    AD365(-IV) Multi-Criteria Detector Data Sheet
    173 KB
    8/1/2023
    Product Number
    Part Number
    Description
    Add to list
    AD365
    Addressable Multi-Criteria Detector, LiteSpeed, UL listed, White
    AD365-IV
    Smoke Detector, Multi-Criteria ThermalInfrared Photoelectric, Ivory
