Expansion Modules

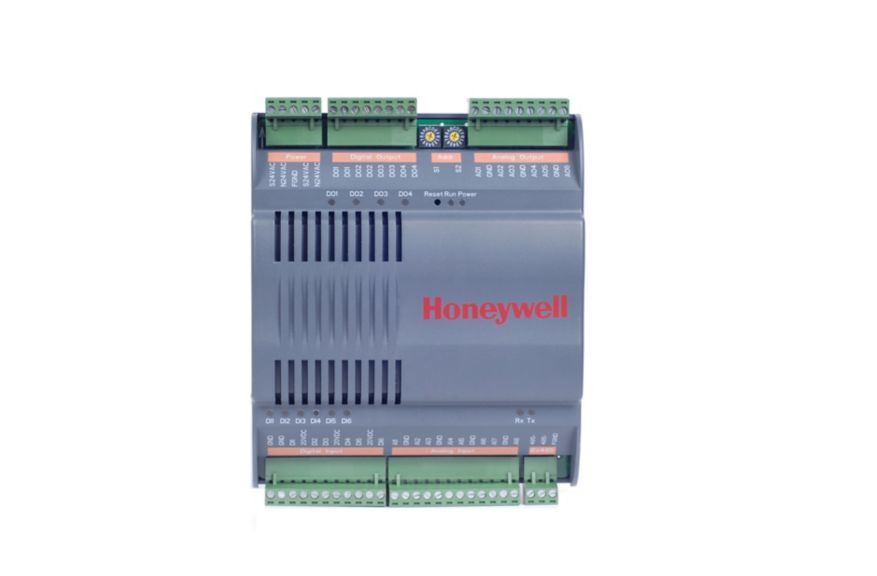

CPO Expansion I/O Board
Discontinued
Expand point capacity of the supported CPO plant controllers to a maximum of 256 physical I/Os.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
Expand point capacity of the supported plant controllers to a maximum of 256 physical I/Os for firmware 2.1 and later versions. For firmware 2.1 and earlier versions a maximum of 128 physical I/Os. A maximum of 15 CP-EXPIO modules can be added for
CP-IPC controller and 16 CP-EXPIO modules to CPO-PC-6A. Powerful processor to support faster IO scanning and flexible and easy configuration with ComfortPoint Open Studio.
Features & Benefits:- Powerful Processor - CP-EXPIO Expansion I/O Boards have powerful onboard processors for fast input/output scanning.
- Mixed Inputs and Outputs - CP-EXPIO comes with a mix of 24 input and outputs to suit any application requirements.
- Expandable - The ComfortPoint Open plant controller can connect up to: 15 expansion IO boards (for CP-IPC); 16 expansion IO boards (for CPO-PC-6A).
- All the Expansion IO boards are connected on the same RS485 CP-IO bus.
- Programming and Configuration - ComfortPoint Open Studio allows users to add/delete/modify expansion boards and IO Assignment.
- Addressing - Addressing of CP-EXPIO is done via onboard HEX Switch. The address can be between 1 through 15. For firmware 2.1 and later the address can be selected between 0 through 15.
- Firmware Upgrade - Firmware on the CP-EXPIO can be easily upgraded using ComfortPoint Open Online.
- Flexible mounting options - DIN-rail or Wall mounting.
- CE
- UL 916
- FCC Part 15, Subpart B, Class B
- UUKL Smoke Control Application
