Relays

RIBM Track Mount Control Relay

The RIB M Series control relay systems allows the installer to mount a combination of relays in an attractive metal enclosure. This RIB M Series Relays are available to control most BAS, HVAC, low-horsepower motors and lighting applications.

Overview

The Functional Devices RIB M Series control relay system allows the installer to mount a combination of relays in an attractive metal enclosure. This RIB M Series Relays are available to control most BAS, HVAC, low-horsepower motors and lighting applications. The relay modules snap into a 4" (10.16 cm) wide plastic track. This system provides a convenient and cost-saving method of mixing and matching relays of different ratings to suit the requirements of the application.

Features & Benefits:
  • Convenient and economical to use
  • Handy, track-mounted modules
  • Attractive, stackable metal enclosure
  • Relay status indicator via LED
  • Coil uses low current and accepts wide range of AC & DC voltages
  • Closed/Open/Auto switch option available
  • High density relay packaging
Certifications:
  • CE Certified
  • CSFM
  • cUL listed
  • UL FIle E68805
  • UL listed, UL 916 Energy Management, UL 864 Fire
Specifications

Others

  • Maximum Operating Humidity
    • 95% (Non-Condensing)
  • Maximum Operating Ambient Temperature
    • 140 degree Fahrenheit
  • Minimum Operating Humidity
    • 5% (Non-Condensing)
  • Minimum Operating Ambient Temperature
    • -30°F
  • Mounting Type
    • Track inch
  • Product Type
    • Relay Degrees Celsius
  • Brand
    • Alerton

Others

  • Maximum Operating Humidity
    • 95% (Non-Condensing)
  • Maximum Operating Ambient Temperature
    • 140 degree Fahrenheit
  • Minimum Operating Humidity
    • 5% (Non-Condensing)
  • Minimum Operating Ambient Temperature
    • -30°F
  • Mounting Type
    • Track inch
  • Product Type
    • Relay Degrees Celsius
  • Brand
    • Alerton
  • Maximum Operating Humidity : 95% (Non-Condensing)
  • Maximum Operating Ambient Temperature : 140 degree Fahrenheit
  • Minimum Operating Humidity : 5% (Non-Condensing)
  • Minimum Operating Ambient Temperature : -30°F
  • Mounting Type : Track inch
  • Product Type : Relay Degrees Celsius
  • Brand : Alerton
Sort
Document Title
Document Type
File Size
Product Number
SKU
Description
alt

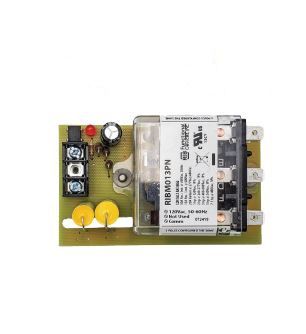

RIBM013PN
Track Mount Control Relay, 4in, 3PDT, 30A, 120V AC Coil, -30 to 140F
alt
RIBM12S
Track Mount Control Relay, 4in, SPST, 15A, 12VACDC Coil, -30 to 140F, Override
alt
RIBM2401D
Track Mount Control Relay, 4in, DPDT, 10A, 24V ACDC120V AC Coil, -30 to 140F
alt
RIBM2401SB
Track Mount Control Relay, 4in, SPST, 20A, 24V ACDC120V AC Coil, -30 to 140F, Override
alt
RIBM2401SBC
Track Mount Control Relay, 4in, SPDT, 20A, 24V ACDC120V AC Coil, -30 to 140F, Override
alt
RIBM2402B
Track Mount Control Relay, 4in, SPDT, 20A, 24V ACDC208 to 277V AC Coil, -30 to 140F
alt
RIBM2402SBC
Track Mount Control Relay, 4in, SPDT, 20A, 24V ACDC208 to 277V AC Coil, -30 to 140F, Override
alt
RIBM24C
Track Mount Control Relay, 4in, SPDT, 15A, 24V ACDC Coil, -30 to 140F
alt
RIBM24S
Track Mount Control Relay, 4in, SPST, 15A, 24V ACDC Coil, -30 to 140F, Override
alt
RIBM24ZL
Track Mount Control Relay, 4in, DPST, 30A, 24V ACDC Coil, -30 to 140F
SKU
Description
alt
RIBM013PN
Track Mount Control Relay, 4in, 3PDT, 30A, 120V AC Coil, -30 to 140F
alt
RIBM12S
Track Mount Control Relay, 4in, SPST, 15A, 12VACDC Coil, -30 to 140F, Override
alt
RIBM2401D
Track Mount Control Relay, 4in, DPDT, 10A, 24V ACDC120V AC Coil, -30 to 140F
alt
RIBM2401SB
Track Mount Control Relay, 4in, SPST, 20A, 24V ACDC120V AC Coil, -30 to 140F, Override
alt
RIBM2401SBC
Track Mount Control Relay, 4in, SPDT, 20A, 24V ACDC120V AC Coil, -30 to 140F, Override
alt
RIBM2402B
Track Mount Control Relay, 4in, SPDT, 20A, 24V ACDC208 to 277V AC Coil, -30 to 140F
alt
RIBM2402SBC
Track Mount Control Relay, 4in, SPDT, 20A, 24V ACDC208 to 277V AC Coil, -30 to 140F, Override
alt
RIBM24C
Track Mount Control Relay, 4in, SPDT, 15A, 24V ACDC Coil, -30 to 140F
alt
RIBM24S
Track Mount Control Relay, 4in, SPST, 15A, 24V ACDC Coil, -30 to 140F, Override
alt
RIBM24ZL
Track Mount Control Relay, 4in, DPST, 30A, 24V ACDC Coil, -30 to 140F
