Rotary Actuators
MSxx20F 175 lb-in. Fire and Smoke Damper Actuators
The MS4120, MS4620, and MS8120 are spring return direct coupled actuators (DCA) for Fire and Smoke dampers.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The MS4120F, MS4620F, MS8120F Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for on/off damper control. The actuator accepts an on/off signal from a single-pole, single-throw (spst) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation.
Features & Benefits:- 175 lb-in. (20 Nm) minimum driving torque at 350°F (176°C)
- Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation
- Integral spring return ensures level of return torque
- Stainless steel internal spring
- Fifteen-second spring return timing
- No special cycling required during long-term holding
- No audible noise during holding
- Models available for 24, 120, and 230 Vac applications
- Ninety-five degree angle of rotation
- Actuator holds rated torque at reduced power level
- Die-cast aluminum housing
- Housing design allows flush mounting to damper
- Patented Self-Centering Shaft Adapter (SCSA). Patent Number: US 6,505,991
- Designed to operate reliably in smoke control systems requiring Underwriter’s Laboratories Inc. UL555S ratings up to 350°F.
Honeywell will provide product support until
Name
Date
Size
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list

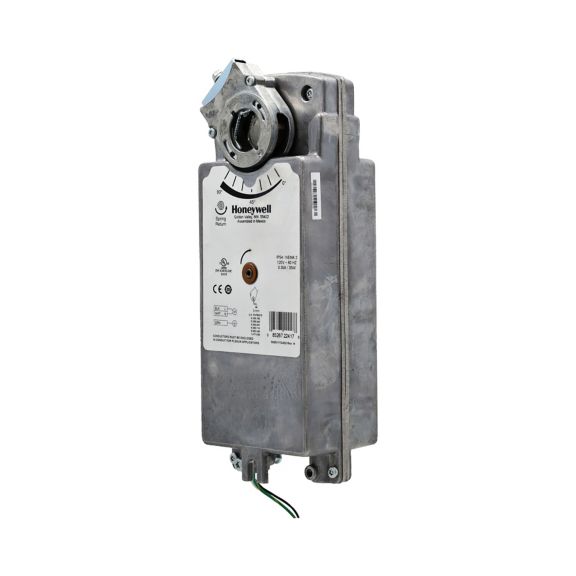

MS4120F1006/B
Fire and Smoke Actuator, Spring Return, 175 lb-in, 20 Nm,120 Vac, 2-position (SPST), Bulk Pack
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-MS4120F1006-U-left-1
MS4120F1006/B
Fire and Smoke Actuator, Spring Return, 175 lb-in, 20 Nm,120 Vac, 2-position (SPST), Bulk Pack
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-MS4120F1006-U-left-1
MS4120F1006/U
Fire and Smoke Actuator, Spring Return, 175 lb-in, 20 Nm,120 Vac, 2-position (SPST)
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-MS4120F1006-U-left-1
MS4120F1006/U
Fire and Smoke Actuator, Spring Return, 175 lb-in, 20 Nm,120 Vac, 2-position (SPST)
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-MS4120F1006-U-left-1

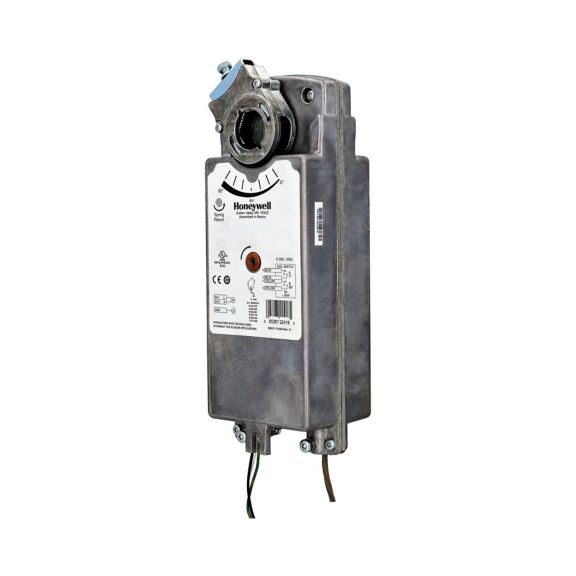

MS4120F1204/B
