    Relays & Switches

    P658 Surface Mounted Pneumatic/Electric Switch

    P658 pneumatic/electric switches convert a controller's pneumatic signal to electrical switching, providing start and stop control.

    Overview

    P658 pneumatic/electric switches convert a controller's pneumatic signal to electrical switching, providing start and stop control. Replacements available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell pneumatic/ electric switches.

    Features & Benefits:
    • Models available for surface or panel mounting
    • Barb protected by open cage
    • All ferrous parts plated to prevent corrosion
    • Factory calibrated setpoint field adjustable to meet job requirements
    • Neoprene diaphragm element
    Certifications:
    • UL Listing: Category SDYF; intended for direct separate installation in the field
    • CSA Listing: Volume II
    Specifications

    Others

    • Maximum Operating Humidity
      • 95 (Non-Condensing) percentage relative humidity
    • Minimum Operating Humidity
      • 5 (Non-Condensing) percentage relative humidity
    • Minimum Operating Ambient Temperature
      • 4 degree Celsius
      • 40 degree Fahrenheit
    • Connection Size
      • 1/4 inch
      • 6 millimetre
    • Switch Configuration
      • SPDT
    • Connection Type
      • Barb
      • Barbed
    • Brand
      • Honeywell BMS NA

    Others

    • Maximum Operating Humidity
      • 95 (Non-Condensing) percentage relative humidity
    • Minimum Operating Humidity
      • 5 (Non-Condensing) percentage relative humidity
    • Minimum Operating Ambient Temperature
      • 4 degree Celsius
      • 40 degree Fahrenheit
    • Connection Size
      • 1/4 inch
      • 6 millimetre
    • Switch Configuration
      • SPDT
    • Connection Type
      • Barb
      • Barbed
    • Brand
      • Honeywell BMS NA
    • Maximum Operating Humidity : 95 (Non-Condensing) percentage relative humidity
    • Minimum Operating Humidity : 5 (Non-Condensing) percentage relative humidity
    • Minimum Operating Ambient Temperature : 4 degree Celsius|40 degree Fahrenheit
    • Connection Size : 1/4 inch|6 millimetre
    • Switch Configuration : SPDT
    • Connection Type : Barb|Barbed
    • Brand : Honeywell BMS NA
    Engineering Specifications
    Name
    Description
    File Size
    Date
    Size
    Specification Data
    application/pdf 89.57 KB
    5/10/2023
    89.57 KB
    Installation Instructions
    Name
    Description
    File Size
    Date
    Size
    Installation Instructions
    application/pdf 371.88 KB
    5/8/2023
    371.88 KB
    Name
    Description
    File Size
    Date
    Size
    Specification Data
    application/pdf 89.57 KB
    5/10/2023
    89.57 KB
    Installation Instructions
    application/pdf 371.88 KB
    5/8/2023
    371.88 KB
    Name
    Description
    File Size
    Date
    Size
    Specification Data
    89.57 KB
    5/10/2023
    Installation Instructions
    371.88 KB
    5/8/2023
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list

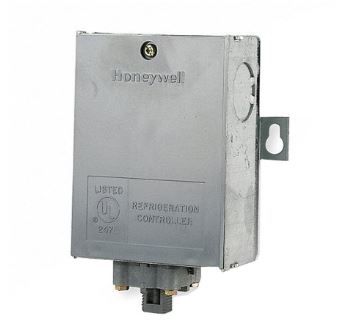

    P658A1013/U
    PneumaticElectric Switch, Surface Mount, Factory Calibrated at 10psi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-p658a1013-u-pneumatic-electric-switch-primaryimage
    P658A1013/U
    PneumaticElectric Switch, Surface Mount, Factory Calibrated at 10psi
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-p658a1013-u-pneumatic-electric-switch-primaryimage
    P658B1012/U
    PneumaticElectric Switch, Panel Mount, Factory Calibrated at 10psi
    P658B1012/U
    PneumaticElectric Switch, Panel Mount, Factory Calibrated at 10psi
    P658E1001/U
    PneumaticElectric Switch, Panel Mount, No Factory Calibration, 2 to 17psi Setpoint Range
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-p658b1012-u-pneumatic-electric-switch
    P658E1001/U
    PneumaticElectric Switch, Panel Mount, No Factory Calibration, 2 to 17psi Setpoint Range
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-p658b1012-u-pneumatic-electric-switch
    P658E1167/U
    PneumaticElectric Switch, Panel Mount, No Factory Calibration, 2 to 25psi Setpoint Range
    P658E1167/U
    PneumaticElectric Switch, Panel Mount, No Factory Calibration, 2 to 25psi Setpoint Range
    P658F1000/U
    PneumaticElectric Switch, Panel Mount, Double D Hole Secured with Hex Nut, No Factory Calibration
    P658F1000/U
    PneumaticElectric Switch, Panel Mount, Double D Hole Secured with Hex Nut, No Factory Calibration
