Linear Valves

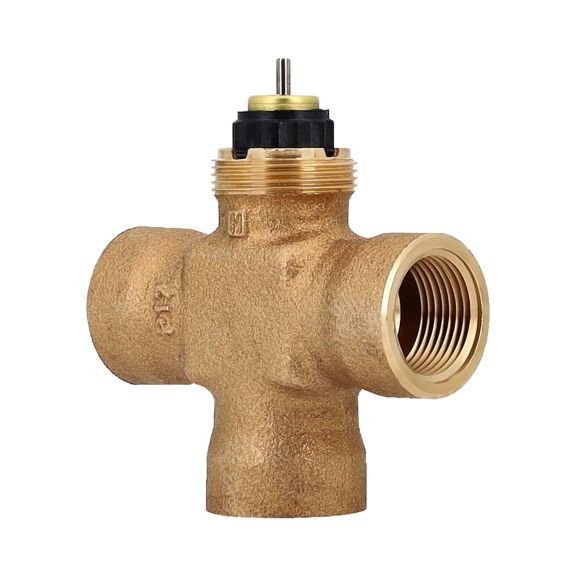

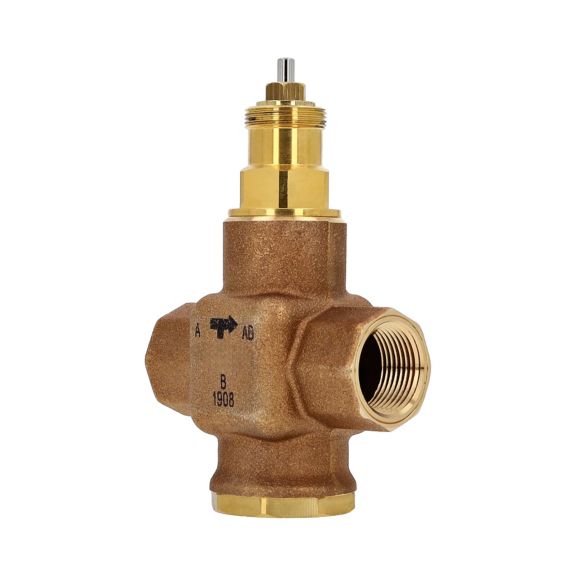

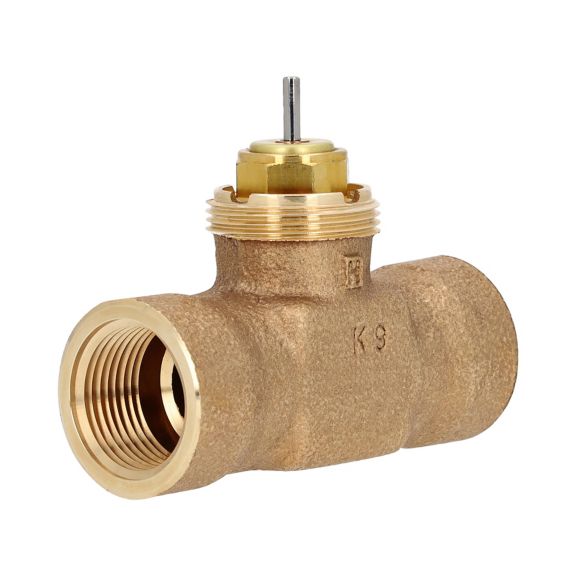

V58 Series 2-Way and 3-Way Cartridge Globe Valves
V58 Series 2-way and 3-way Cartridge Globe Valves control hot and chilled water for VAV terminals, fan coil units, small re-heaters and other unitary equipment in HVAC systems.
Overview
V58 Series 2-way and 3-way Cartridge Globe Valves control hot and chilled water for VAV terminals, fan coil units, small re-heaters and other unitary equipment in HVAC systems. Valves are used with M6410 floating and M7410 modulating Non-Spring Return actuators or M6435 floating and M7435 modulating Spring Return Actuators.
Features & Benefits:- For closed loop HVAC systems with up to 50% glycol, not for use with steam
- Maximu static pressure 235 psi
- Soft seat provides low leakage rate
- Valves 1 inch and larger feature pressure balanced design for enhanced close-off levels
- Brass body and stainless steel stem
- Threaded plastic valve cover allows manual operation
Sort
Others
Document Title
Document Type
File Size
Engineering Specifications
0.33 MB
Engineering Specifications
0.38 MB
Reference Guides
Document Title
Document Type
File Size
Installation Instructions
Document Title
Document Type
File Size
Data Sheet
Document Title
Document Type
File Size
Document Title
Document Type
File Size
Engineering Specifications
0.33 MB
Engineering Specifications
0.38 MB
Product Number
SKU
Description
V5852A2007
Cartridge Globe Valve, 12 in. Sweat, 2-way, 0.19 Cv, Equal Percentage
V5852A2015
Cartridge Globe Valve, 12 in. Sweat, 2-way, 0.29 Cv, Equal Percentage
V5852A2023
Cartridge Globe Valve, 12 in. Sweat, 2-way, 0.47 Cv, Equal Percentage
V5852A2031
Cartridge Globe Valve, 12 in. Sweat, 2-way, 0.74 Cv, Equal Percentage
V5852A2049
Cartridge Globe Valve, 12 in. Sweat, 2-way, 1.2 Cv, Equal Percentage
V5852A2056
Cartridge Globe Valve, 12 in. Sweat, 2-way, 1.9 Cv, Equal Percentage
V5852A2064
Cartridge Globe Valve, 34 in. Sweat, 2-way, 2.9 Cv, Equal Percentage
V5852A2072
Cartridge Globe Valve, 34 in. Sweat, 2-way, 4.9 Cv, Equal Percentage
V5853A1008
Cartridge Globe Valve, 34 in. Sweat, 3-way Mixing, 2.9 Cv, Equal Percentage
V5853A1016
Cartridge Globe Valve, 34 in. Sweat, 3-way Mixing, 4.9 Cv, Equal Percentage
