Pressure Independent Control Valves

VRN Pressure Independent Control Valves And Actuators

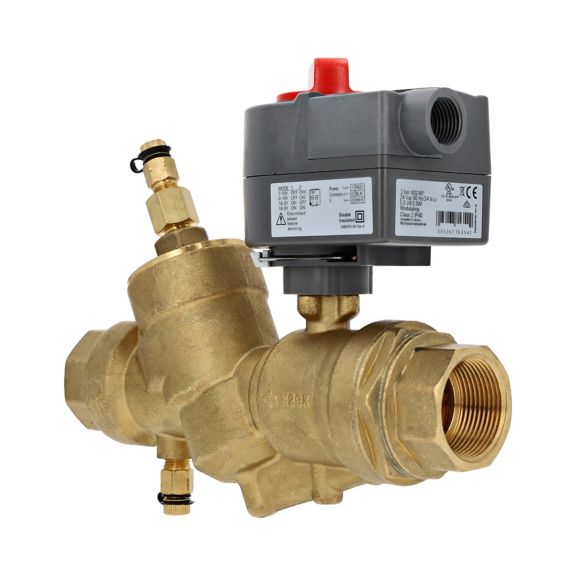

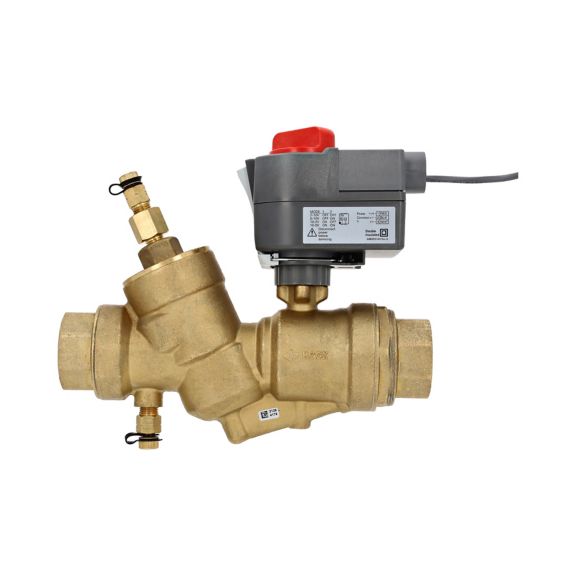

The VRN2 two-way dynamic pressure-regulating control valves maintain constant flow of hot or chilled water in HVAC systems.

Overview

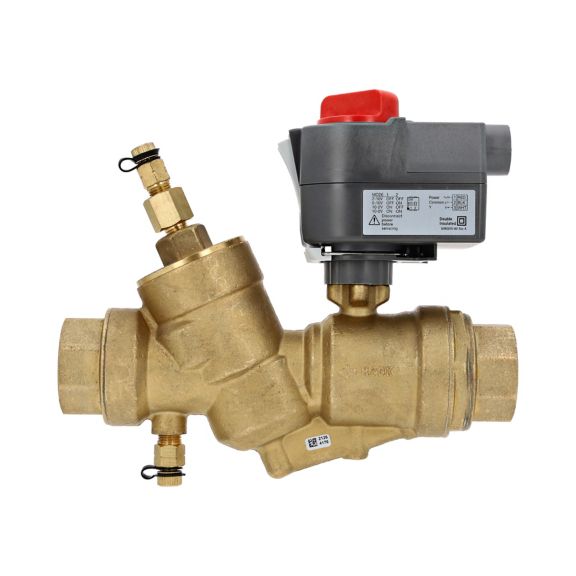

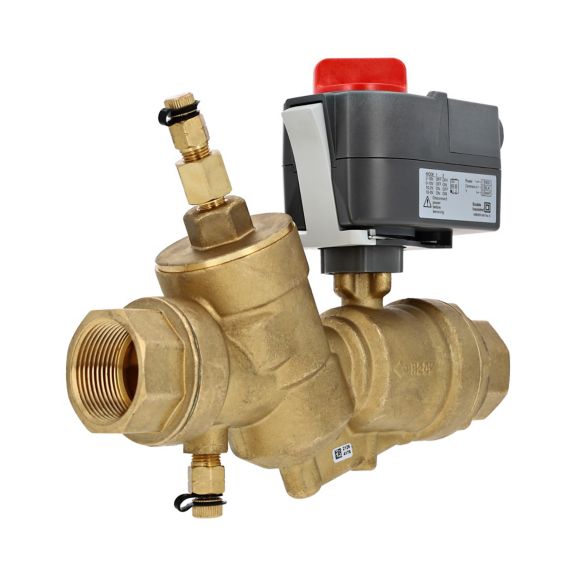

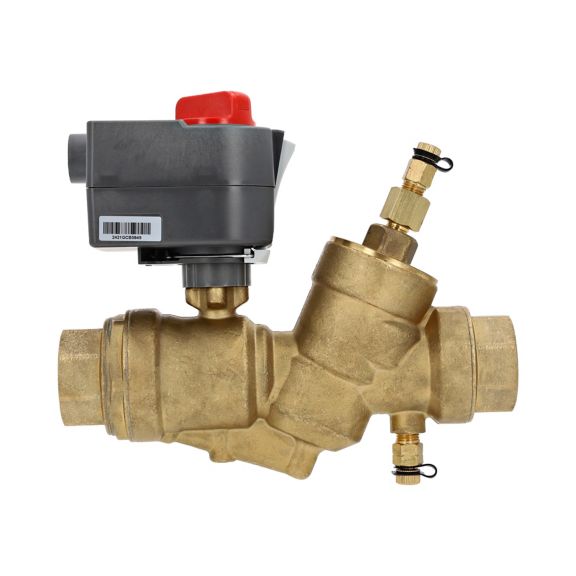

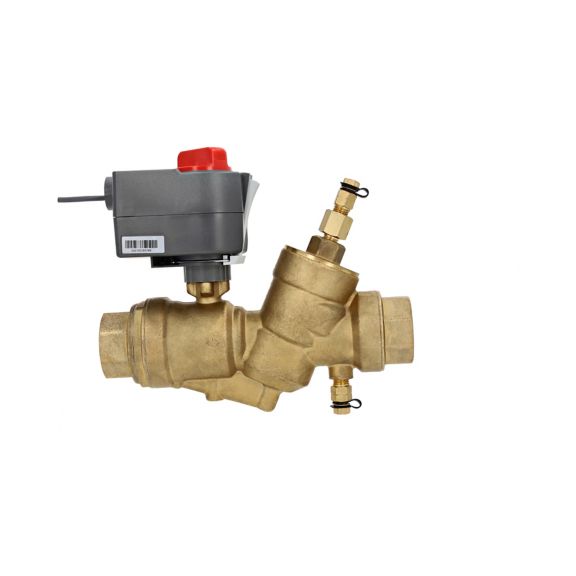

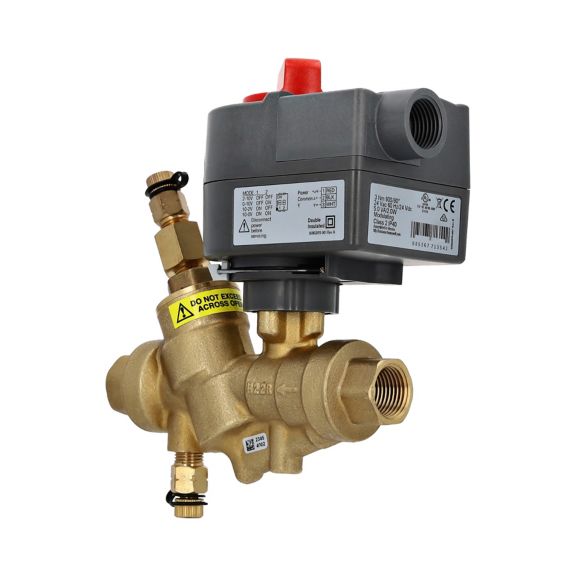

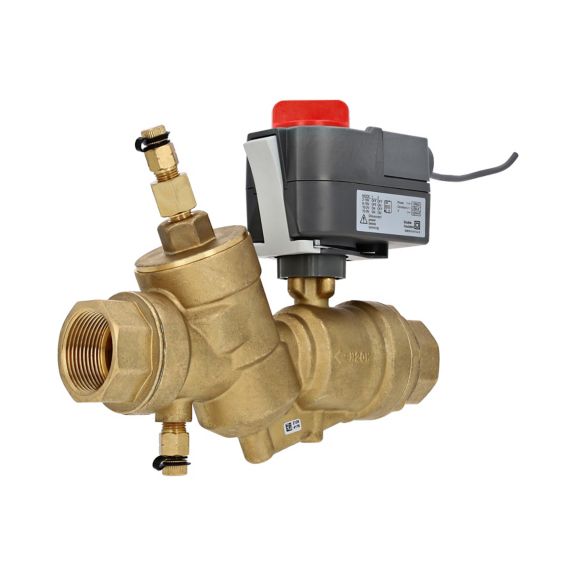

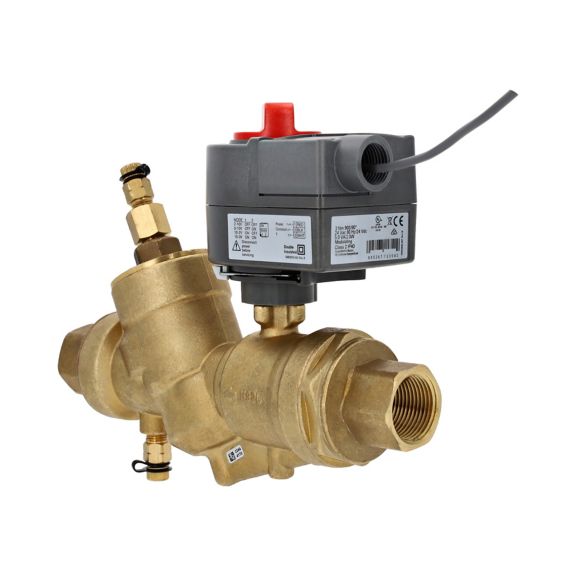

The VRN2 two-way dynamic pressure-regulating control valves maintain constant flow of hot or chilled water with glycol solutions up to 50% in closed-loop heating, ventilating, and air conditioning systems, within the specified pressure drop ranges of each model number. These valve assemblies can be ordered with or without factory-mounted actuators.

Features & Benefits:
  • Sizes from 1/2 to 3 in. with internal (female) NPT connections.
  • Regulated flow rates available from 1 to 95 gpm with multiple maximum flow rates available per valve size.
  • Differential pressure regulator for constant pressure drop across valve seat.
  • Positive pressure, rolling diaphragm regulator design for flow control accuracy of ±5%.
  • Equal percentage flow characteristic using patented flow control ball insert.
  • Patented ball seals for low operating torque.
  • Nickel-chrome plated brass or stainless steel trim.

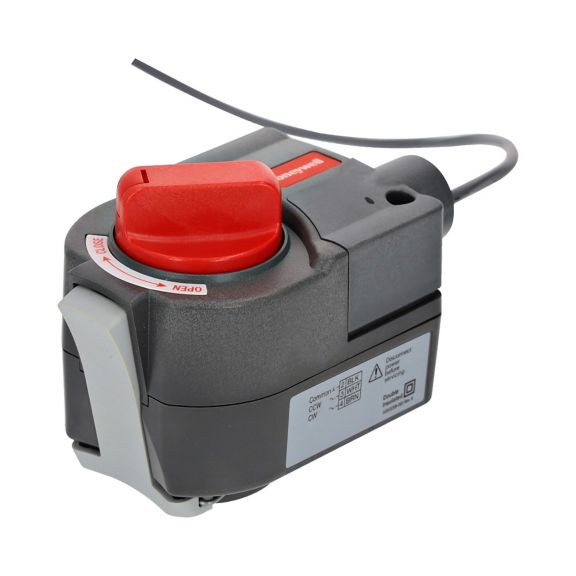

  • Choice of factory-installed actuation: floating, modulating (2-10 V), spring return or non-spring return 2-Position, Spring Return Modulating/Floating, Spring Return Sylk-enabled.
  • Removable, manual operating handle to control valve during installation or in an event of power failure.
  • Upstream Test Port for venting or pressure gauge attachment.
  • Three actuator orientations on the valve for cramped spaces.
  • Integral snubber eliminates effect of system pressure fluctuations and entrapped air while improving flow performance.
Sort
Others
Document Title
Document Type
File Size
Document Language
Brand
Brochure
2.67 MB
0.65 MB
Data Sheet
2.61 MB
Document Title
Document Type
File Size
Document Language
Brand
Brochure
2.67 MB
0.65 MB
Data Sheet
2.61 MB
Product Number
SKU
Description
alt
VRN262SX0000
VRN2E075.00SX--1-12in 2-way 75 GPM Stainless Trim DCA Profile
alt
VRN262SX4000
VRN2E075.00SX+MN6105A1011--1-12in 2-way 75 GPM Stainless Trim+Floating OnOff Fail in Place 24 VAC
alt
VRN262SX4002
VRN2E075.00SX+MN6105A1011+3R--1-12in 2-way 75 GPM Stainless Trim+Floating OnOff Fail in Place 24 VAC
alt
VRN262SX5000
VRN2E075.00SX+MN7505A2001--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail in Place 24 VAC
alt
VRN262SX5002
VRN2E075.00SX+MN7505A2001+3R--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail in Place 24 VAC
alt
VRN262SX6100
VRN2E075.00SX+MS7505A2030+FSO--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Open 24 VAC
alt
VRN262SX6102
VRN2E075.00SX+MS7505A2030+FSO+3R--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Open 24 VAC
alt
VRN262SX6200
VRN2E075.00SX+MS7505A2030+FSC--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Closed 24 VAC
alt
VRN262SX6202
VRN2E075.00SX+MS7505A2030+FSC+3R--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Closed 24 VAC
alt
VRN262SX7100
VRN2E075.00SX+MS8105A1030+FSO--1-12in 2-way 75 GPM Stainless Trim+On Off Fail Safe Open 24 VAC
SKU
Description
alt
VRN262SX0000
VRN2E075.00SX--1-12in 2-way 75 GPM Stainless Trim DCA Profile
alt
VRN262SX4000
VRN2E075.00SX+MN6105A1011--1-12in 2-way 75 GPM Stainless Trim+Floating OnOff Fail in Place 24 VAC
alt
VRN262SX4002
VRN2E075.00SX+MN6105A1011+3R--1-12in 2-way 75 GPM Stainless Trim+Floating OnOff Fail in Place 24 VAC
alt
VRN262SX5000
VRN2E075.00SX+MN7505A2001--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail in Place 24 VAC
alt
VRN262SX5002
VRN2E075.00SX+MN7505A2001+3R--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail in Place 24 VAC
alt
VRN262SX6100
VRN2E075.00SX+MS7505A2030+FSO--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Open 24 VAC
alt
VRN262SX6102
VRN2E075.00SX+MS7505A2030+FSO+3R--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Open 24 VAC
alt
VRN262SX6200
VRN2E075.00SX+MS7505A2030+FSC--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Closed 24 VAC
alt
VRN262SX6202
VRN2E075.00SX+MS7505A2030+FSC+3R--1-12in 2-way 75 GPM Stainless Trim+Modulating Floating Fail Safe Closed 24 VAC
alt
VRN262SX7100
VRN2E075.00SX+MS8105A1030+FSO--1-12in 2-way 75 GPM Stainless Trim+On Off Fail Safe Open 24 VAC
