    Pressure Independent Control Valves

    VRW2 Dynamic Pressure-Regulating Flanged Control Valves

    VRW2 2-way dynamic pressure-regulating control valves maintain constant flow of hot and chilled water in closed-loop HVAC systems regardless of head pressure fluctuations above minimum specified pressure drop.

    Overview

    VRW2 2-way dynamic pressure-regulating control valves maintain constant flow of hot and chilled water in closed-loop HVAC systems regardless of head pressure fluctuations above minimum specified pressure drop. These valves come complete with proportional, stay-in-place or electronic fail-safe actuators.

    The built-in differential pressure regulator maintains fluid flow through the valve independent of changes in supply pressure, eliminating "hunting" by the control system, even at low coil flow. The pressure regulator virtually eliminates cavitation in the valve, and decouples the control valve from the effects of piping components such as reducers and elbows.

    Pressure independent control valves are sized to match design coil flow regardless of coil size. VRW2 valves eliminate the need to balance the system for proper flow, and allow chillers to be operated at design temperature differential for maximum efficiency at every load condition. When used in a system with variable-speed pump drives, 3-way valves and coil bypass lines are not required.

    Features & Benefits:
    • 2 1/2 to 6 inch pipes with wafer-flanged connections
    • Combination ANSI/ASME Class 150/300 flange connections
    • Controls hot or chilled water with up to 50% glycol
    • Regulated flow rates available from 40.7 to 468 gpm
    • Stainless steel pressure regulator maintains constant pressure drop across valve seat
    • Positive pressure rolling diaphragm regulator design for long service life provides flow control accuracy of ±5%
    • Equal percentage flow characteristic using multi-turn, non-rising, characterized plug
    • High close-off rating
    • 50 discrete, selectable flow rates available per valve size
    • Stainless steel trim
    Certifications:
    • Actuators: Safety Extra-Low Voltage, Class II wiring only
    Brochure
    Name
    Description
    File Size
    Date
    Size
    Pressure Independent Control Valve Quick Selection Guide
    application/pdf 1.02 MB
    9/1/2014
    1.02 MB
    Commercial HVAC Components
    application/pdf 2.93 MB
    7/19/2024
    2.93 MB
    White Paper
    Name
    Description
    File Size
    Date
    Size
    Advantages of Pressure Independent Control Valves
    application/pdf 666.01 KB
    4/1/2016
    666.01 KB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    VRW2 Dynamic Pressure-Regulating Flanged Control Valves Product Data
    application/pdf 1017.99 KB
    1/1/2018
    1017.99 KB
    Name
    Description
    File Size
    Date
    Size
    Advantages of Pressure Independent Control Valves
    application/pdf 666.01 KB
    4/1/2016
    666.01 KB
    Pressure Independent Control Valve Quick Selection Guide
    application/pdf 1.02 MB
    9/1/2014
    1.02 MB
    Commercial HVAC Components
    application/pdf 2.93 MB
    7/19/2024
    2.93 MB
    VRW2 Dynamic Pressure-Regulating Flanged Control Valves Product Data
    application/pdf 1017.99 KB
    1/1/2018
    1017.99 KB
    Name
    Description
    File Size
    Date
    Size
    Pressure Independent Control Valve Quick Selection Guide
    1.02 MB
    9/1/2014
    Commercial HVAC Components
    2.93 MB
    7/19/2024
    Advantages of Pressure Independent Control Valves
    666.01 KB
    4/1/2016
    VRW2 Dynamic Pressure-Regulating Flanged Control Valves Product Data
    1017.99 KB
    1/1/2018
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list

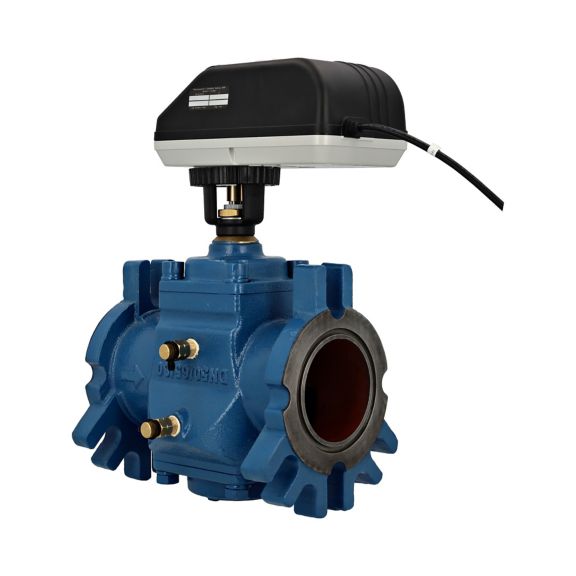

    VRW2JV4SMB/M
    Modg Flange PICV 2-12 and 3 in. 39 -112
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left
    VRW2JV4SMB/M
    Modg Flange PICV 2-12 and 3 in. 39 -112
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left
    VRW2JV4SMD/M
    Mod FS Flange PICV 2-12 and 3 in. 39 -
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left
    VRW2JV4SMD/M
    Mod FS Flange PICV 2-12 and 3 in. 39 -
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left
    VRW2JW4SMB/M
    Modg Flange PICV 2-12 and 3 in. 56-155
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left
    VRW2JW4SMB/M
    Modg Flange PICV 2-12 and 3 in. 56-155
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left
    VRW2JW4SMD/M
    Mod FS Flange PICV 2-12 and 3 in. 56-1
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left
    VRW2JW4SMD/M
    Mod FS Flange PICV 2-12 and 3 in. 56-1
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2JV4SMB-M-left

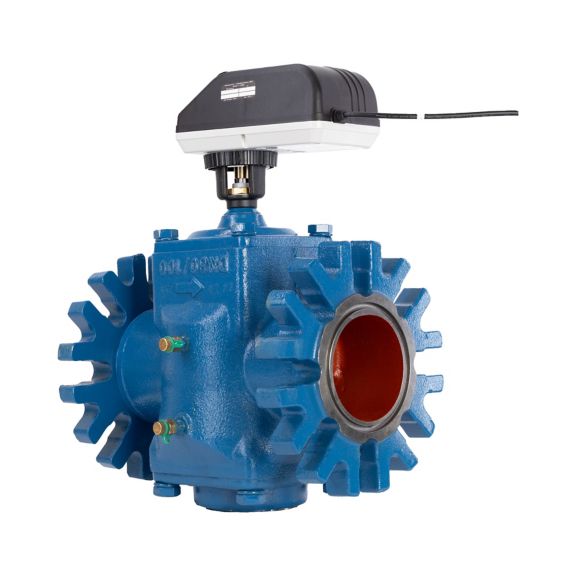

    VRW2KV4SMB/M
    Modg Flange PICV 3 and 4 in. 55-147 gpm
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2KV4SMB/M
    Modg Flange PICV 3 and 4 in. 55-147 gpm
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2KV4SMD/M
    Mod FS Flange PICV 3 and 4 in. 55-147 g
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2KV4SMD/M
    Mod FS Flange PICV 3 and 4 in. 55-147 g
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2KW4SMB/M
    Modg Flange PICV 3 and 4 in. 73-222 gpm
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2KW4SMB/M
    Modg Flange PICV 3 and 4 in. 73-222 gpm
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2KW4SMD/M
    Mod FS Flange PICV 3 and 4 in. 73-222 g
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2KW4SMD/M
    Mod FS Flange PICV 3 and 4 in. 73-222 g
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2KV4SMB-M-left
    VRW2LV4SMB/M
    Modg Flange PICV 5 and 6 in. 103-370 gpm
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2LV4SMB-M-left
    VRW2LV4SMB/M
    Modg Flange PICV 5 and 6 in. 103-370 gpm
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2LV4SMB-M-left
    VRW2LV4SMD/M
    Mod FS Flange PICV 5 and 6 in. 103-370
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2LV4SMB-M-left
    VRW2LV4SMD/M
    Mod FS Flange PICV 5 and 6 in. 103-370
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VRW2LV4SMB-M-left
