Network Cards & Modules

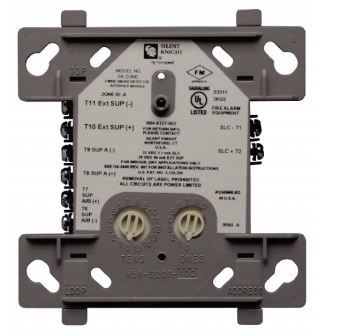

Farenhyt Two-Wire Interface Module

Honeywell's farenhyt two wire interface modules have been designed for use with Silent Knight IFP-series fire alarm control panels (FACPs).

The IDP-Zone allows a Silent Knight FACP to interface and monitor two-wire conventional smoke detectors. This means you can retrofit an existing building and use existing conventional devices. The IDP-Zone is addressed through the signaling line circuit loop of the FACP. It transmits the status of one full zone of two-wire detectors to the FACP. Status conditions are reported as normal, open, or alarm. The IDP-Zone supervises the zone of detectors and the connection of the external power supply. All two-wire detectors being monitored must be UL compatible with the IDP-Zone.

Features & Benefits:
  • Converts a conventional two-wire loop to an SLC loop
  • Fully supervised
  • Support for Style B and Style D wiring
  • Attractive ivory cover plate
  • Rotary address switches for fast installation
  • SEMS screws for easy wiring
Certifications:
  • UL Listed
Others
Name
Description
File Size
Date
Size
Dispositivos direccionales con Protocolo de dispositivo inteligente Data Sheet
application/pdf 319.51 KB
5/9/2022
319.51 KB
IFP-1000 Sales Guide
application/pdf 654.91 KB
5/9/2022
654.91 KB
IDP-Zone Addressable Zone Interface Module Fire Listing
application/pdf 166.94 KB
5/9/2022
166.94 KB
Analog-Addressable Devices with Intelligent Device Protocol Data Sheet
application/pdf 273.93 KB
5/7/2022
273.93 KB
IDP-ZONE Addressable Two-Wire Interface Module Data Sheet
application/pdf 617 KB
5/7/2022
617 KB
350292 H IDP-Zone Datasheet
0 Bytes
5/5/2022
0 Bytes
Isolator Load Rating Table Brochure
application/pdf 38.09 KB
3/9/2022
38.09 KB
Name
Description
File Size
Date
Size
Dispositivos direccionales con Protocolo de dispositivo inteligente Data Sheet
319.51 KB
5/9/2022
319.51 KB
IFP-1000 Sales Guide
654.91 KB
5/9/2022
654.91 KB
IDP-Zone Addressable Zone Interface Module Fire Listing
166.94 KB
5/9/2022
166.94 KB
Analog-Addressable Devices with Intelligent Device Protocol Data Sheet
273.93 KB
5/7/2022
273.93 KB
IDP-ZONE Addressable Two-Wire Interface Module Data Sheet
617 KB
5/7/2022
617 KB
350292 H IDP-Zone Datasheet
0 Bytes
5/5/2022
0 Bytes
Isolator Load Rating Table Brochure
38.09 KB
3/9/2022
38.09 KB
SKU
Description
alt
IDP-ZONE
MODULE SINGLE ZONE SK
