Interface Cards

Cellular Fire Alarm Communicator

Cellular Fire Alarm Communicators provide cellular communication as an alternate method of central station reporting. These models include a GSM communicator within a metal cabinet enclosure with lock/key, and includes an external antenna.

Cellular Fire Alarm Communicators provide cellular communication as an alternate method of central station reporting. Combined with the FACP’s onboard communicator, they provide dual path cellular and IP reporting capability, while eliminating the need and cost of separate dialer capture modules and special programming. Battery backup from the control panel maximizes overall system efficiency. Small in size, easy to install, with a programmable supervision time of 1 to 60 minutes, these communicators can be positioned remotely from the fire alarm control panel via 4-wire serial bus for optimum reception. These devices are UL 864 and NFPA 72 fire code compliant for sole, primary, or backup communications. They work with AlarmNet® to provide a UL Listed connection to the central station. CELL-CAB models include a GSM communicator within a metal cabinet enclosure with lock/key, and includes an external antenna.

Features & Benefits:
  • Easy installation — no need for special programming or separate dialer module
  • Battery backup provided by the panel to increase system efficiency and decrease cost
  • Dual path cellular and IP reporting capability
  • UL 864 and NFPA 72 code compliant for sole, primary, and backup communications
  • Easily managed accounts through on-line management tools
  • Remote mounting up to 6,000 feet (1,828.8m)
  • Quality of Service (QOS) diagnostics via AlarmNet conveys vital communicator information such as when messages are received, signal strength, and message path used
  • Programmable supervision time from 1 to 60 minutes
  • Provides full data reporting using Contact ID format
Certifications:
  • UL: S2424;
  • ULC: S2424
  • CSFM: 7300-0075:0504;
  • FCC ID: CFS8DLPHS8-US

Others

  • Alarm Current
    • 100 milliampere
  • Brand
    • Fire-Lite
  • Maximum Operating Humidity
    • 93Percentage

Others

  • Alarm Current
    • 100 milliampere
  • Brand
    • Fire-Lite
  • Maximum Operating Humidity
    • 93Percentage
  • Brand : Fire-Lite
  • Maximum Operating Humidity : 93Percentage
  • Alarm Current : 100 milliampere
Catalog
Name
Description
File Size
Date
Size
Engineering and Applications Catalog
application/pdf 131.74 KB
5/18/2022
131.74 KB
Data Sheet
Name
Description
File Size
Date
Size
CELL-CAB-GWF and CELL-MOD Cellular Fire Alarm Communicators Data Sheet
application/pdf 125.68 KB
5/18/2022
125.68 KB

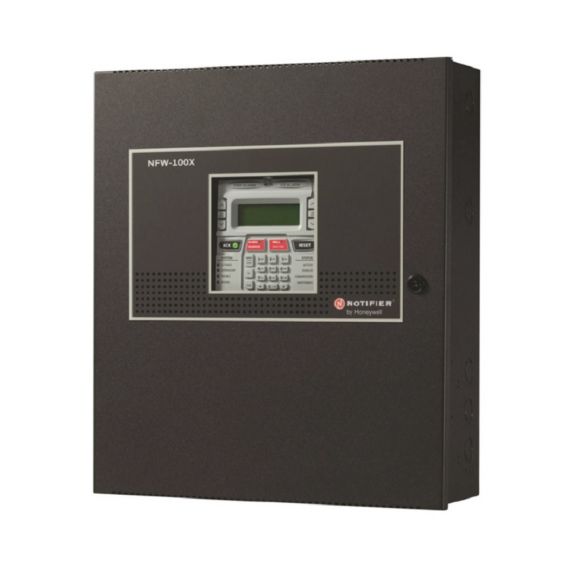

NFW-100X Intelligent Addressable FACP with Communicator Data Sheet
application/pdf 262.5 KB
5/3/2022
262.5 KB
Manuals and Guides
Name
Description
File Size
Date
Size
ES-200X User Manual
application/pdf 3.22 MB
4/29/2022
3.22 MB
ES-50X and ES-50XC Manual
application/pdf 3.08 MB
4/29/2022
3.08 MB
Others
Name
Description
File Size
Date
Size
CELL-MOD - CELL-CAB-SK Cellular Module Data Sheet
application/pdf 116.19 KB
5/7/2022
116.19 KB
CELL-CAB-FL and CELL-MOD Data Sheet
application/pdf 157.03 KB
3/14/2022
157.03 KB
CELL-CAB-FL Series Product Installation Document
application/pdf 207.68 KB
3/14/2022
207.68 KB
CELL-CAB-SK Manual
application/pdf 180.47 KB
3/13/2022
180.47 KB
CELL-CAB-SK Installation Document
application/pdf 180.47 KB
3/13/2022
180.47 KB
CELL-CAB-SK - CELL-MOD Data Sheet
application/pdf 105.17 KB
3/13/2022
105.17 KB
Name
Description
File Size
Date
Size
Engineering and Applications Catalog
131.74 KB
5/18/2022
131.74 KB
CELL-CAB-GWF and CELL-MOD Cellular Fire Alarm Communicators Data Sheet
125.68 KB
5/18/2022
125.68 KB
CELL-MOD - CELL-CAB-SK Cellular Module Data Sheet
116.19 KB
5/7/2022
116.19 KB
NFW-100X Intelligent Addressable FACP with Communicator Data Sheet
262.5 KB
5/3/2022
262.5 KB
ES-200X User Manual
3.22 MB
4/29/2022
3.22 MB
ES-50X and ES-50XC Manual
3.08 MB
4/29/2022
3.08 MB
CELL-CAB-FL and CELL-MOD Data Sheet
157.03 KB
3/14/2022
157.03 KB
CELL-CAB-FL Series Product Installation Document
207.68 KB
3/14/2022
207.68 KB
CELL-CAB-SK Manual
180.47 KB
3/13/2022
180.47 KB
CELL-CAB-SK Installation Document
180.47 KB
3/13/2022
180.47 KB
CELL-CAB-SK - CELL-MOD Data Sheet
105.17 KB
3/13/2022
105.17 KB
SKU
Description
alt
CELL-CAB-FL
Cellular Module, Metal Lock-and-Key Cabinet, Includes External Antenna
