    INSPIRE N16X CAB-5 Series Cabinets

    CAB-5 Series cabinets for INSPIRE N16X Series to build a custom panel to fit your application and scale as the system grows.

    Overview

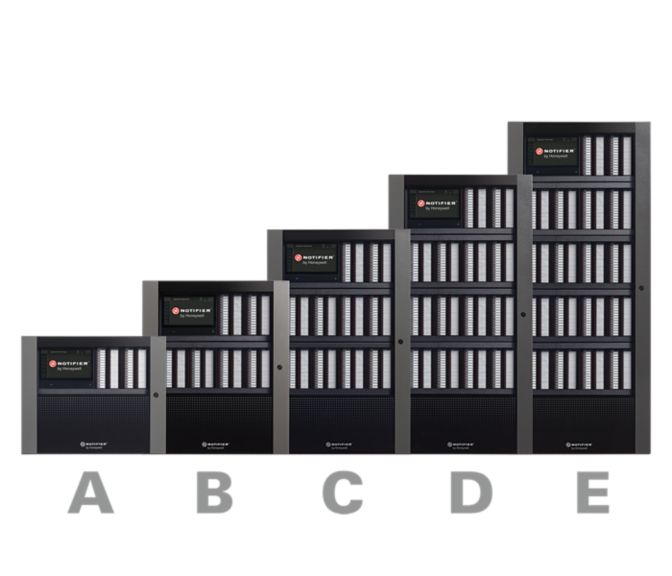

    All CAB-5 cabinets for fire alarm control panels are fabricated from 16-gauge steel. A complete cabinet assembly consists of: a door, dress panels, a backbox, an optional battery plate, and an optional cladding kit (red color). For each cabinet required, order one “DR” door, one “SBB” backbox and dress panels. Cabinets are available in black, with or without windows in five sizes A(1 tier) ,B (2 tier),C(3 tier),D(4 tier) or E(5 tier). The window model provides a tasteful combination to accent the decor of the finest lobby setting.

    Features & Benefits:
    • The key-locked door is provided with a pin-type hinge for easy door removal during installation, two keys, and the necessary hardware to mount the door to the backbox.
    • The backbox has been engineered to provide ease-of-entry for the installer.
    • Knockouts are positioned at numerous points to aid the installer in bringing a conduit into the enclosure with a minimum of hardship.
    • Right- or left-hand hinges, selectable in the field. Door opens 120°.
    • Cabinets are arranged in five standard sizes, A (one tier) through E (five tiers)
    • Red cladding kits available for ease of customization when red cabinets are required
    • Modular design of dress panel enables re-use across different CAB sizes
    • Seismic Listed
    Certifications:
    • •UL Listed: S635.
    • •FM approved: FM23FPUS0095
    • •CSFM: 7165-0028:0516
    • •City of Chicago approved: Class1, Class 2
    • •FDNY COA#001761
    • •Certified for Seismic applications in accordance with IBC 2024 :
    • VMA-45894-01C
    • •OSHPD Approved : OSP-0072
    Honeywell will provide product support until
    Others
    Name
    Description
    File Size
    Date
    Size
    NOTIFIER INSPIRE CAB-5 Infographic [Rev C]
    application/pdf 1.49 MB
    11/15/2024
    1.49 MB
    NOTIFIER INSPIRE N16x Configuration Guide [Rev F]
    application/pdf 12.13 MB
    11/15/2024
    12.13 MB
    CAB-5 Series Cabinets Backboxes with Locking Doors Datasheet
    application/pdf 376.7 KB
    11/15/2024
    376.7 KB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    XLS-CAB-5 SERIES Cabinets with Locking Doors Datasheet
    application/pdf 605.62 KB
    3/1/2023
    605.62 KB
    Name
    Description
    File Size
    Date
    Size
    XLS-CAB-5 SERIES Cabinets with Locking Doors Datasheet
    application/pdf 605.62 KB
    3/1/2023
    605.62 KB
    NOTIFIER INSPIRE CAB-5 Infographic [Rev C]
    application/pdf 1.49 MB
    11/15/2024
    1.49 MB
    NOTIFIER INSPIRE N16x Configuration Guide [Rev F]
    application/pdf 12.13 MB
    11/15/2024
    12.13 MB
    CAB-5 Series Cabinets Backboxes with Locking Doors Datasheet
    application/pdf 376.7 KB
    11/15/2024
    376.7 KB
    Name
    Description
    File Size
    Date
    Size
    NOTIFIER INSPIRE CAB-5 Infographic [Rev C]
    1.49 MB
    11/15/2024
    NOTIFIER INSPIRE N16x Configuration Guide [Rev F]
    12.13 MB
    11/15/2024
    CAB-5 Series Cabinets Backboxes with Locking Doors Datasheet
    376.7 KB
    11/15/2024
    XLS-CAB-5 SERIES Cabinets with Locking Doors Datasheet
    605.62 KB
    3/1/2023
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    ABP-1
    Annunciator Blank Plate, For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    ABP-1
    Annunciator Blank Plate, For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    BP-5
    Battery Dress Panel For CAB-5 Series, for assembly with batteriespower supply in the lowest row
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    BP-5
    Battery Dress Panel For CAB-5 Series, for assembly with batteriespower supply in the lowest row
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    CGW-DACT-CH
    CHASSIS FOR MOUNTING THE DS DIALER BOARD IN A CAB-4 OR CAB-5 SERIES ENCLOSURE
    CGW-DACT-CH
    CHASSIS FOR MOUNTING THE DS DIALER BOARD IN A CAB-4 OR CAB-5 SERIES ENCLOSURE
    CHS-ADP
    Adapter Plate To Mount CAB-4 Chassis In CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    CHS-ADP
    Adapter Plate To Mount CAB-4 Chassis In CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-4A
    Dress Panel; Mounts 4 Acm-30 Annunciators, For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-4A
    Dress Panel; Mounts 4 Acm-30 Annunciators, For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-4A-CB4
    Dress Panel; Mounts 4 Acm-30 Annunciators In CAB-4
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-4A-CB4
    Dress Panel; Mounts 4 Acm-30 Annunciators In CAB-4
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-BLN
    Dress Panel Blank; Covers Unused Cabinet Row For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-BLN
    Dress Panel Blank; Covers Unused Cabinet Row For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-T2A-CB4
    Dress Panel; Mounts 10 Touch Screen Display And 2 Acm-30 In CAB-4
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DP-T2A-CB4
    Dress Panel; Mounts 10 Touch Screen Display And 2 Acm-30 In CAB-4
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DR-A5
    A Size Door, Lock & Keys For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DR-A5
    A Size Door, Lock & Keys For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DR-A5B
    A Size Blank Door, Lock & Keys For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
    DR-A5B
    A Size Blank Door, Lock & Keys For CAB-5
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-NF-INSPIRE-Cab-AtoE--primaryimage
