Communicators

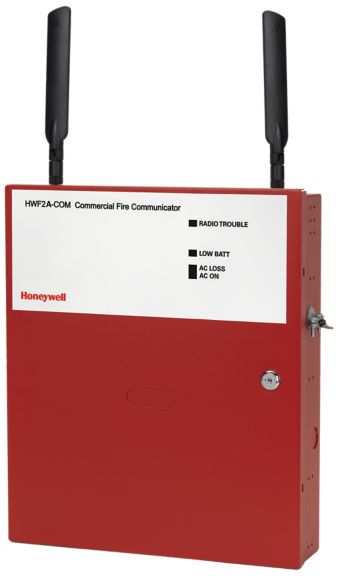

AlarmNet Fire Alarm Communicator

The HWF2-COM Series LTE / IP fire communicators offer Contact ID reporting with any FACP with a built-in dialer.

Three selectable reporting paths include: LTE cellular only, IP only, or IP primary with LTE cellular backup. All signals from the HWF2-COM Series are delivered to the AlarmNet® network control center which routes highly encrypted, cybersecured Ethernet data packets via a customer-provided Internet connection or LTE cellular network to the appropriate central station. The AlarmNet® network control center is fully redundant and monitored 24/7. Installation and programming are easy using the handheld 7720P Programming tool.

Features & Benefits:
  • LTE service options include Verizon and AT&T
  • Saves the cost of two dedicated phone lines
  • Selectable reporting paths and supervision intervals to meet NFPA, Chapter 26 requirements
  • Operates over the following communication protocols: LTE, HSPA+ (4G), HSPA (3G)
  • Built-in power supply module: onboard charging circuit design accommodates backup battery
  • Communicators connect directly to the primary and secondary telephone ports with no change required to the existing FACP
Certifications:
  • UL Listed: S789
  • CSFM: 7300-1645:0511
  • FDNY: Approved
Others
Name
Description
File Size
Date
Size
HWF2-COM Series Inspection and Testing Procedure
application/pdf 73.75 KB
4/6/2022
73.75 KB
HWF2-COM Series Inspection and Testing Procedure
application/pdf 125.7 KB
4/1/2022
125.7 KB
HWF2-COM Series Drawings
application/zip 667.83 KB
4/1/2022
667.83 KB
HWF2-COM Series Installation Guide
application/pdf 1.06 MB
3/21/2022
1.06 MB
Name
Description
File Size
Date
Size
HWF2-COM Series Inspection and Testing Procedure
73.75 KB
4/6/2022
73.75 KB
HWF2-COM Series Inspection and Testing Procedure
125.7 KB
4/1/2022
125.7 KB
HWF2-COM Series Drawings
667.83 KB
4/1/2022
667.83 KB
HWF2-COM Series Installation Guide
1.06 MB
3/21/2022
1.06 MB
SKU
Description
alt
HWF2A-COM
LTE / IP Single or Dual Path Commercial Fire Alarm Communicator for AT&T
alt
HWF2V-COM
LTE / IP Single or Dual Path Commercial Fire Alarm Communicator for Verizon
