Combination Strobes

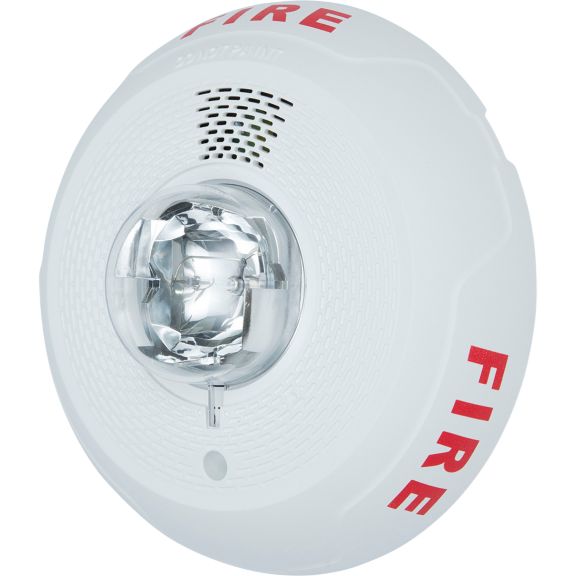

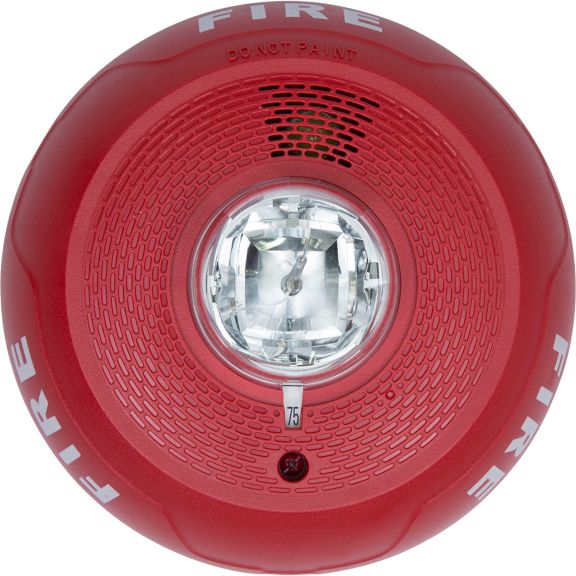

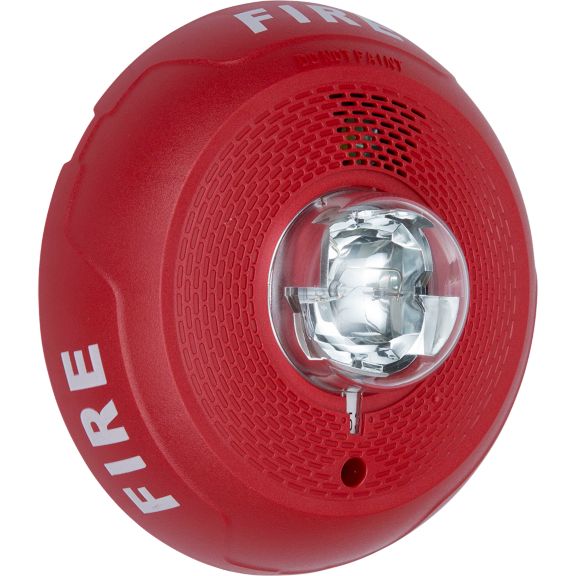

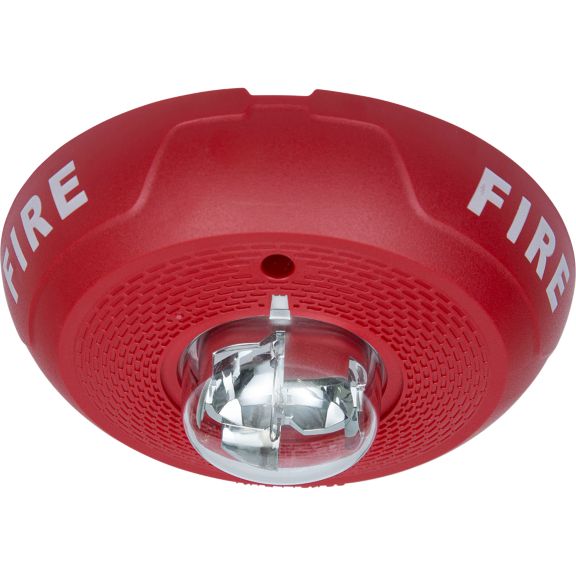

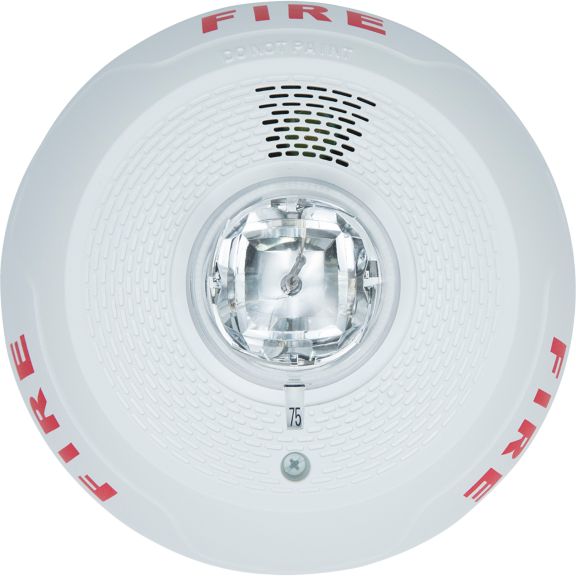

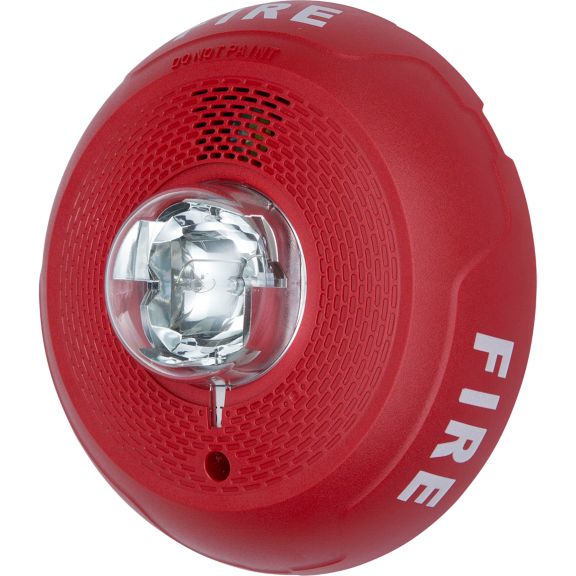

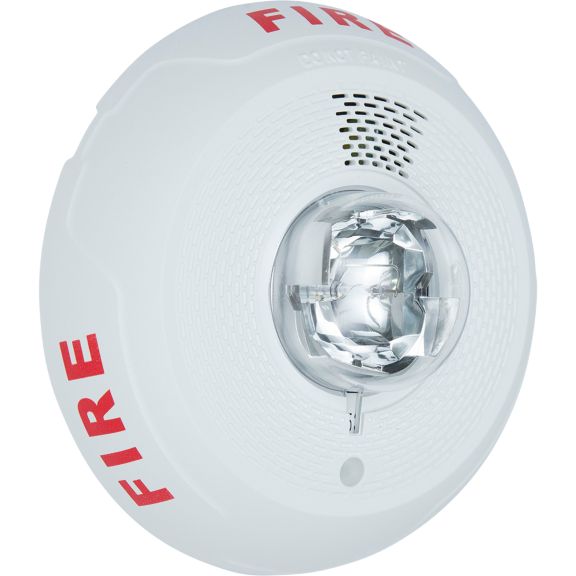

L-Series 2-Wire Ceiling Horn Strobe

L-Series 2-wire horn strobes include a variety of features that increase their application versatility while simplifying installation.

Overview

The L-Series line of ceiling-mount horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.

To further simplify installation and protect devices from construction damage, the L-Series utilizes a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12 or 24V operation, and a rotary switch for horn tones with two volume selections.

Features & Benefits:
  • Updated modern aesthetics
  • Small profile devices for Horn Strobes
  • Plug-in design with minimal intrusion into the backbox
  • Tamper-resistant construction
  • Automatic selection of 12- or 24-volt operation at 15 and 30 candela
  • Field-selectable candela settings for ceiling units: 15, 30, 75, 95, 115, 150, and 177
  • Horn rated at 88+ dBA at 16 volts
  • Rotary switch for horn tone and two volume selections
  • Mounting plate shorting spring checks wiring continuity before device installation
  • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
  • Compatible with MDL3 sync module
Certifications:
  • UL Listed: S4011- S5512
  • ULC Listed: S4011- S5512
  • FM Approved
  • CSFM: 7125-1653:0504- 7135-1653:0503
Specifications

Others

  • Brand
    • Farenhyt
    • Gamewell-FCI
    • Notifier
    • System Sensor
  • Product Type
    • Horn Strobe
  • Mounting Type
    • Ceiling

Others

  • Brand
    • Farenhyt
    • Gamewell-FCI
    • Notifier
    • System Sensor
  • Product Type
    • Horn Strobe
  • Mounting Type
    • Ceiling
  • Brand : Farenhyt|Gamewell-FCI|Notifier|System Sensor
  • Product Type : Horn Strobe
  • Mounting Type : Ceiling
Sort
Others
Document Title
Document Type
File Size
Document Language
Brand
Installation Instructions
Document Title
Document Type
File Size
Document Language
Brand
Data Sheet
Document Title
Document Type
File Size
Document Language
Brand
Product Number
SKU
Description
alt
PC2WL
Horn Strobe: 2-wire: Ceiling: White: Marked FIRE
SKU
Description
alt
PC2WL
Horn Strobe: 2-wire: Ceiling: White: Marked FIRE
