    Combination Strobes

    L-Series Low Frequency Ceiling Sounder Strobe

    System Sensor L-Series low frequency sounder strobes are rich with features guaranteed to maximize profits with lower current draw and modern aesthetics.

    Overview

    The L-Series offers the most versatile and easy-to-use line of low frequency sounderstrobes in the industry. With white and red plastic housings, listed for wall and ceiling mounting, L-Series Low Frequency can meet virtually any application requirement. The low frequency sounder strobes were designed to address the NFPA 72 sleeping space requirements that require a low frequency notification appliance that operates within frequency range of 520 Hz ± 10% and is of a square wave tone. Like the entire L-Series product line they include a variety of features thatincrease their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.To further simplify installation and protect devices from construction damage, L-Series uses a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed.

    Features & Benefits:
    • 520 Hz ± 10% square wave tone, NFPA compliance
    • Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications
    • Field-selectable candela settings. Wall units: 15, 30, 75, 95, 110, 135, and 185. Ceiling units: 15, 30, 75, 95, 115, 150, and 177
    • Rotary switch for High/Low, Temp3, Temp4, and Continuous settings
    • Plug-in design with minimal intrusion into the back box
    • Mounting plate shorting spring checks wiring continuity before device installation
    • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices (Direct replacement for HW/R-LF and P2R/WH-LF)
    • Compatible with MDL3 sync module
    • Round Sounder Strobes Listed for ceiling and wall
    • Updated modern aesthetics
    Certifications:
    • UL Listed: S4011
    • ULC Listed
    • FM Approved: PR452768
    • CSFM: 7125-1653:0517
    Specifications

    Others

    • Brand
      • Farenhyt
      • Gamewell-FCI
      • NOTIFIER
      • System Sensor
    • Mounting Type
      • Ceiling
    • Product Type
      • Low-Frequency
      • Sounder Strobe

    Others

    • Brand
      • Farenhyt
      • Gamewell-FCI
      • NOTIFIER
      • System Sensor
    • Mounting Type
      • Ceiling
    • Product Type
      • Low-Frequency
      • Sounder Strobe
    • Brand : Farenhyt|Gamewell-FCI|NOTIFIER|System Sensor
    • Mounting Type : Ceiling
    • Product Type : Low-Frequency|Sounder Strobe
    Others
    Name
    Description
    File Size
    Date
    Size
    Low Frequency Sounders and Sounder Strobes FAQ
    application/pdf 137.79 KB
    9/1/2019
    137.79 KB
    AV L-Series Products Brochure
    application/pdf 2.36 MB
    10/3/2024
    2.36 MB
    PC2RL-LF BIM File
    application/x-tika-msoffice 1.04 MB
    10/3/2024
    1.04 MB
    L-Series Low Frequency Sounders and Sounder Strobes
    application/pdf 157.24 KB
    10/3/2024
    157.24 KB
    L-SERIES LOW FREQUENCY : Low Frequency Sounders and Sounder Strobes
    application/pdf 221.4 KB
    3/10/2021
    221.4 KB
    L-Series Low Frequency Sounders and Sounder Strobes
    application/pdf 156.96 KB
    3/10/2021
    156.96 KB
    Low Frequency Sounder Strobes Engineering Specs
    application/pdf 73.91 KB
    10/3/2024
    73.91 KB
    L-Series Low Frequency Sounder Strobes Manual
    application/pdf 2.52 MB
    10/3/2024
    2.52 MB
    L-Series: Horn Strobe (Ceiling) CAD-BIM
    application/zip 3.75 MB
    10/3/2024
    3.75 MB
    L-Series Low Frequency Sounder Strobes Datasheet
    application/pdf 2.28 MB
    11/2/2020
    2.28 MB
    Name
    Description
    File Size
    Date
    Size
    Low Frequency Sounders and Sounder Strobes FAQ
    application/pdf 137.79 KB
    9/1/2019
    137.79 KB
    AV L-Series Products Brochure
    application/pdf 2.36 MB
    10/3/2024
    2.36 MB
    PC2RL-LF BIM File
    application/x-tika-msoffice 1.04 MB
    10/3/2024
    1.04 MB
    L-Series Low Frequency Sounders and Sounder Strobes
    application/pdf 157.24 KB
    10/3/2024
    157.24 KB
    L-SERIES LOW FREQUENCY : Low Frequency Sounders and Sounder Strobes
    application/pdf 221.4 KB
    3/10/2021
    221.4 KB
    L-Series Low Frequency Sounders and Sounder Strobes
    application/pdf 156.96 KB
    3/10/2021
    156.96 KB
    Low Frequency Sounder Strobes Engineering Specs
    application/pdf 73.91 KB
    10/3/2024
    73.91 KB
    L-Series Low Frequency Sounder Strobes Manual
    application/pdf 2.52 MB
    10/3/2024
    2.52 MB
    L-Series: Horn Strobe (Ceiling) CAD-BIM
    application/zip 3.75 MB
    10/3/2024
    3.75 MB
    L-Series Low Frequency Sounder Strobes Datasheet
    application/pdf 2.28 MB
    11/2/2020
    2.28 MB
    Name
    Description
    File Size
    Date
    Size
    Low Frequency Sounders and Sounder Strobes FAQ
    137.79 KB
    9/1/2019
    AV L-Series Products Brochure
    2.36 MB
    10/3/2024
    PC2RL-LF BIM File
    1.04 MB
    10/3/2024
    L-Series Low Frequency Sounders and Sounder Strobes
    157.24 KB
    10/3/2024
    L-SERIES LOW FREQUENCY : Low Frequency Sounders and Sounder Strobes
    221.4 KB
    3/10/2021
    L-Series Low Frequency Sounders and Sounder Strobes
    156.96 KB
    3/10/2021
    Low Frequency Sounder Strobes Engineering Specs
    73.91 KB
    10/3/2024
    L-Series Low Frequency Sounder Strobes Manual
    2.52 MB
    10/3/2024
    L-Series: Horn Strobe (Ceiling) CAD-BIM
    3.75 MB
    10/3/2024
    L-Series Low Frequency Sounder Strobes Datasheet
    2.28 MB
    11/2/2020
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    PC2RL-LF

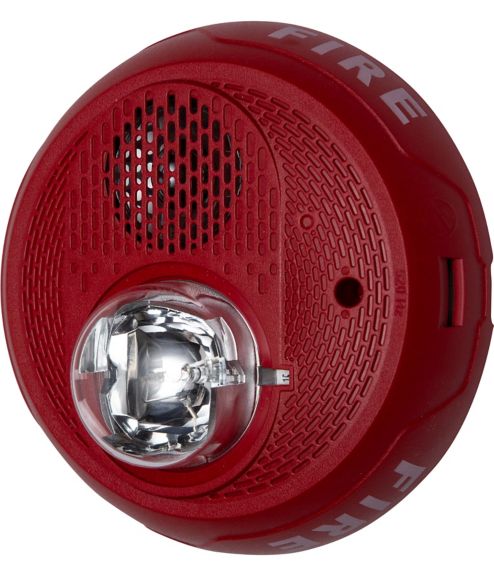

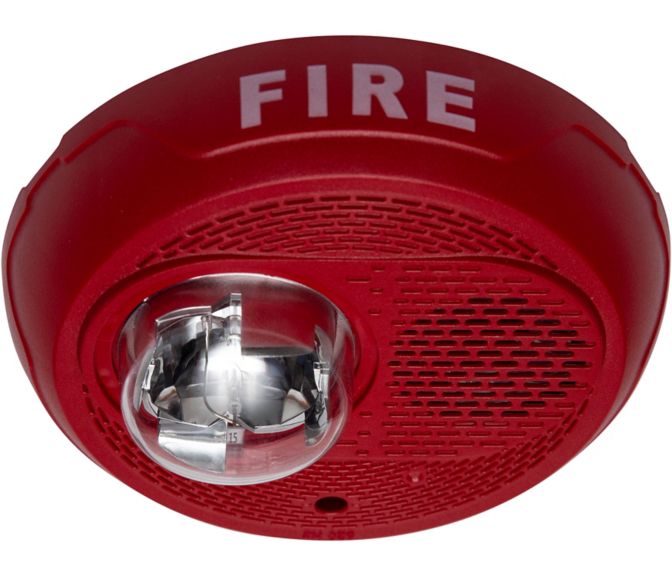

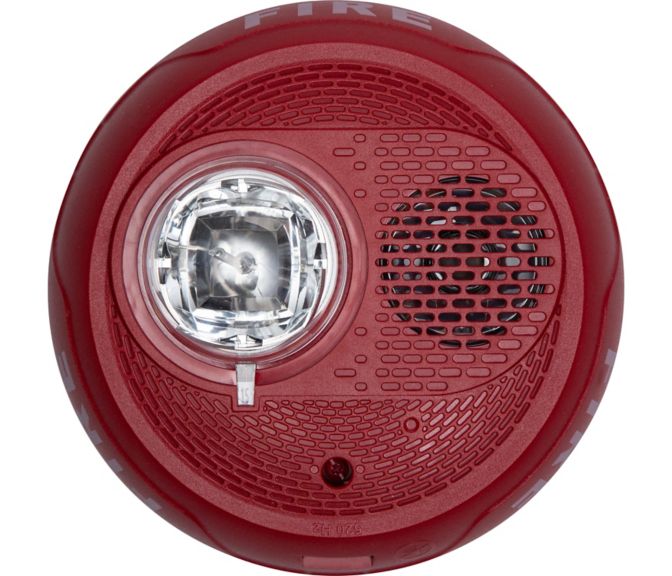

    LF Sounder Strobe: 2-wire: Ceiling: Red: Marked FIRE
    https://honeywell.scene7.com/is/image/Honeywell65/HBT-FIRE-PC2RL-LF_Straight_LowRes
    PC2RL-LF
    LF Sounder Strobe: 2-wire: Ceiling: Red: Marked FIRE
    https://honeywell.scene7.com/is/image/Honeywell65/HBT-FIRE-PC2RL-LF_Straight_LowRes
    PC2WL-LF

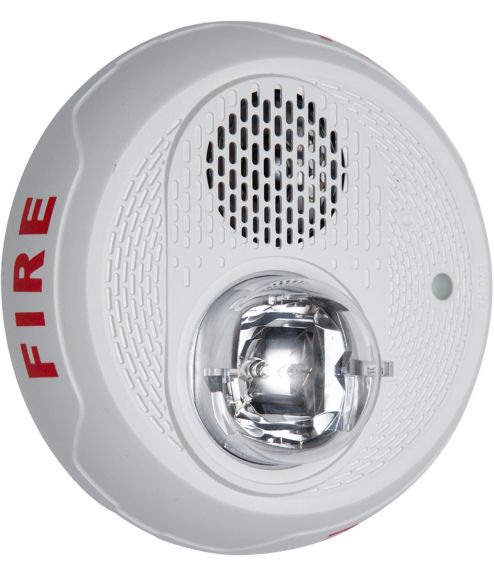

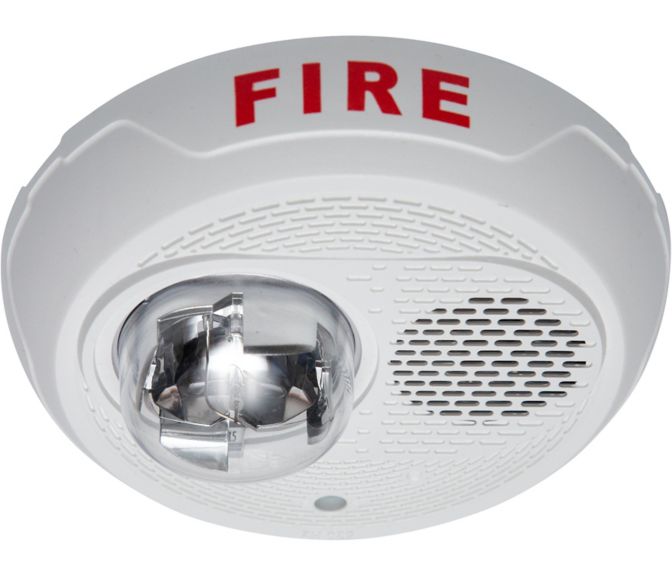

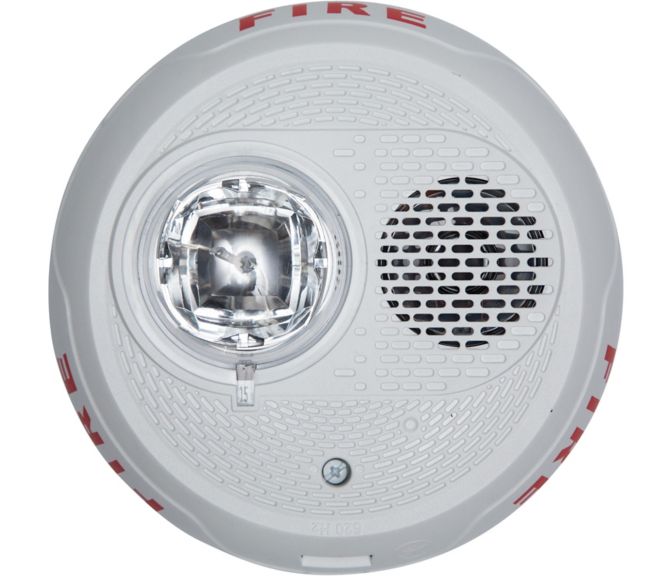

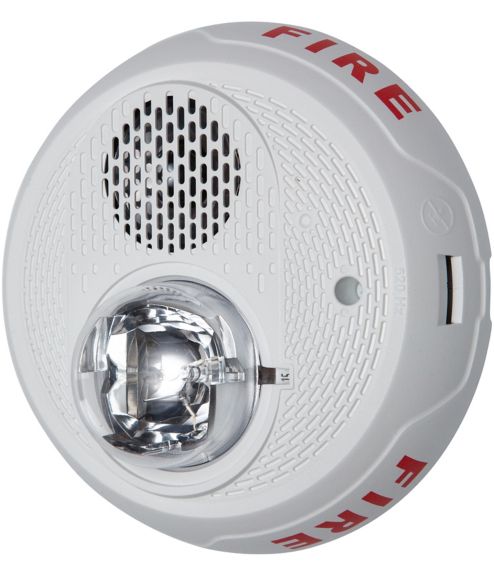

    LF Sounder Strobe: 2-wire: Ceiling: White: Marked FIRE
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-PC2WL-LF-CEILING-HiRes
    PC2WL-LF
    LF Sounder Strobe: 2-wire: Ceiling: White: Marked FIRE
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-PC2WL-LF-CEILING-HiRes
