Combination Strobes

L-Series Low Frequency Wall Sounder Strobe

System Sensor L-Series low frequency sounder strobes are rich with features guaranteed to maximize profits with lower current draw and modern aesthetics.

Overview

The L-Series offers the most versatile and easy-to-use line of low frequency sounderstrobes in the industry. With white and red plastic housings, listed for wall mounting, L-Series Low Frequency can meet virtually any application requirement. The low frequency sounder strobes were designed to address the NFPA 72 sleeping space requirements that require a low frequency notification appliance that operates within frequency range of 520 Hz ± 10% and is of a square wave tone. Like the entire L-Series product line they include a variety of features thatincrease their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.To further simplify installation and protect devices from construction damage, L-Series uses a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed.

Features & Benefits:
  • 520 Hz ± 10% square wave tone, NFPA compliance
  • Full candela range plus high/low tone options to optimize current draw for a wide variety of applications
  • Field-selectable candela settings for wall units: 15, 30, 75, 95, 110, 135, and 185.
  • Rotary switch for High/Low, Temp3, Temp4, and Continuous settings
  • Plug-in design with minimal intrusion into the back box
  • Mounting plate shorting spring checks wiring continuity before device installation
  • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices (Direct replacement for HW/R-LF and P2R/WH-LF)
  • Compatible with MDL3 sync module
  • Round Sounder Strobes listed for ceiling and wall
  • Updated modern aesthetics
Certifications:
  • UL Listed: S4011
  • ULC Listed
  • FM Approved: PR452768
  • CSFM: 7125-1653:0517
Specifications

Others

  • Brand
    • Farenhyt
    • Gamewell-FCI
    • Notifier
    • System Sensor
  • Mounting Type
    • Wall
  • Product Type
    • Low-Frequency
    • Sounder Strobe

Others

  • Brand
    • Farenhyt
    • Gamewell-FCI
    • Notifier
    • System Sensor
  • Mounting Type
    • Wall
  • Product Type
    • Low-Frequency
    • Sounder Strobe
  • Brand : Farenhyt|Gamewell-FCI|Notifier|System Sensor
  • Mounting Type : Wall
  • Product Type : Low-Frequency|Sounder Strobe
Sort
Others
Document Title
Document Type
File Size
Document Language
Brand
Installation Instructions
Document Title
Document Type
File Size
Document Language
Brand
Document Title
Document Type
File Size
Document Language
Brand
Drawing or Diagram
1.32 MB
Drawing or Diagram
1.33 MB
Drawing or Diagram
1.36 MB
Engineering Specifications
0.07 MB
Drawing or Diagram
0.69 MB
Product Number
SKU
Description
alt
P2RL-LF

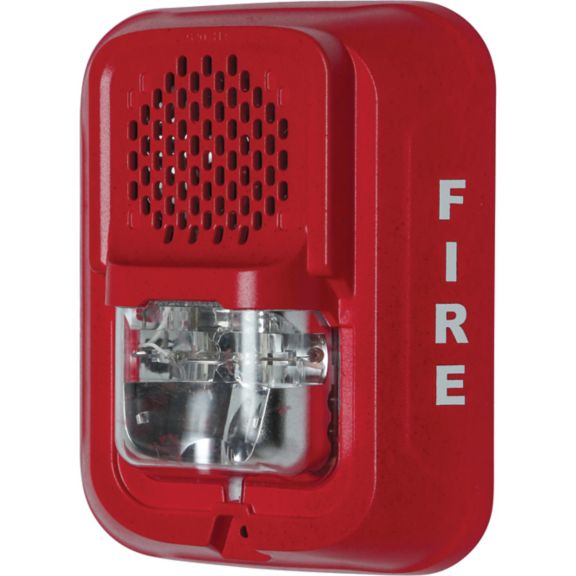

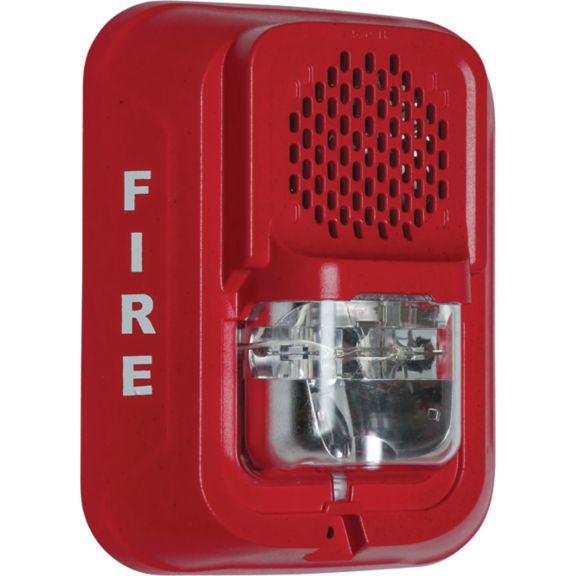

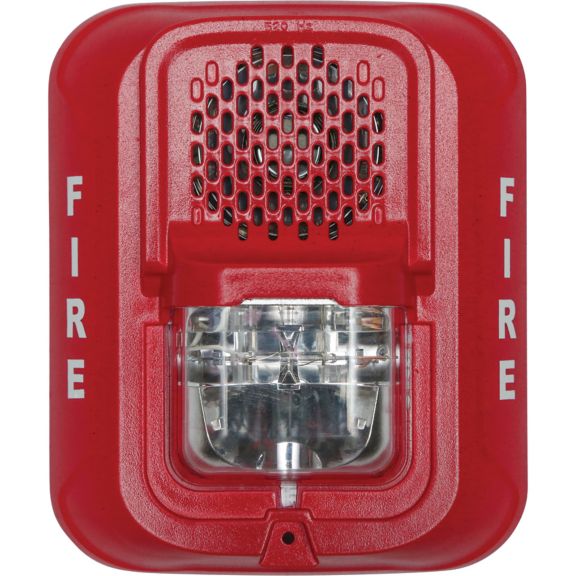

LF Sounder Strobe: 2-wire: Wall: Red: Marked FIRE
alt
P2WL-LF

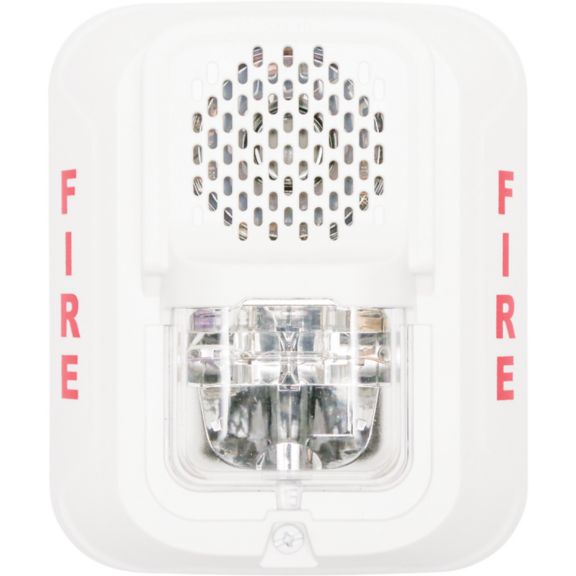

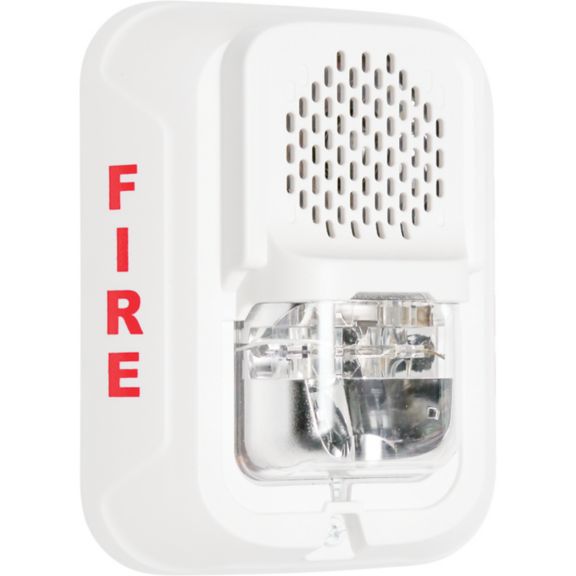

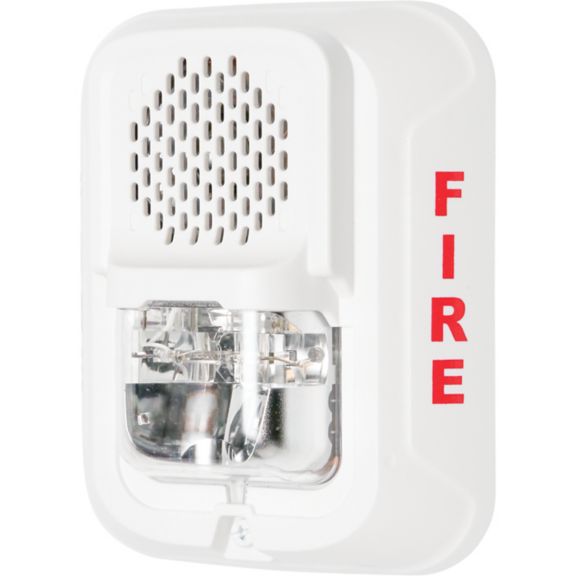

LF Sounder Strobe: 2-wire: Wall: White: Marked FIRE
SKU
Description
alt
P2RL-LF
LF Sounder Strobe: 2-wire: Wall: Red: Marked FIRE
alt
P2WL-LF
LF Sounder Strobe: 2-wire: Wall: White: Marked FIRE
