Strobes & Signal Lights
Strobe
Strobes by System Sensor are offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry.
The SpectrAlert Advance series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry. With red plastic housings, wall and ceiling mounting options, and plain and FIRE-printed devices, SpectrAlert Advance can meet virtually any application requirement. Like the entire SpectrAlert Advance product line, wall-mount horns, strobes, and horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. To further simplify installation and protect devices from construction damage, SpectrAlert Advance utilizes a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to a suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12- or 24-volt operation
Features & Benefits:- Plug-in design with minimal intrusion into the back box
- Tamper-resistant construction
- Rotary switch for horn tone and three volume selections

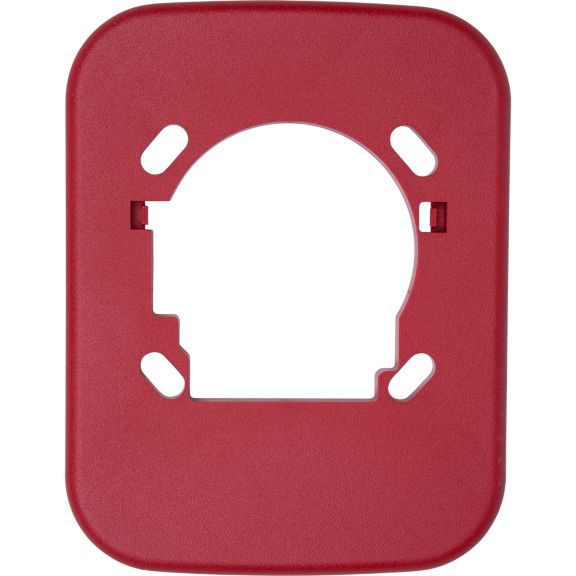

- Universal mounting plate for wall units
- Mounting plate shorting spring checks wiring continuity before device installation
- Electrically Compatible with legacy SpectrAlert devices
- Listed for ceiling or wall mounting
- FM 3023572
- MEA452-05-E
- UL S4011 (chimes, horn strobes, horns) S5512 (strobes)
Others
- Maximum Operating Voltage
- 17.5 (Nominal) volt
- 33 (Nominal) volt
- Minimum Operating Voltage
- 16 (Nominal) volt
- 8 (Nominal) volt
- Light Output Rating
- 110
- 115 cd
- 15
- 15/75
- 30
- 75
- 95
- Current Rating
- 123 (15 cd) milliampere
- 142 (15/75 cd) milliampere
- 158 (75 cd) milliampere
- 181 (95 cd) milliampere
- 202 (110 cd) milliampere
- 210 (115 cd) milliampere
- 66 (15 cd) milliampere
- 77 (15/75 cd) milliampere
- 94 (30 cd) milliampere
- Maximum Operating Humidity
- 93
- Brand
- System Sensor
- Product Type
- Strobe
- Compatible Environments
- Indoor
- Material
- Plastic
- Color
- Red
Others
- Maximum Operating Voltage
- 17.5 (Nominal) volt
- 33 (Nominal) volt
- Minimum Operating Voltage
- 16 (Nominal) volt
- 8 (Nominal) volt
- Light Output Rating
- 110
- 115 cd
- 15
- 15/75
- 30
- 75
- 95
- Current Rating
- 123 (15 cd) milliampere
- 142 (15/75 cd) milliampere
- 158 (75 cd) milliampere
- 181 (95 cd) milliampere
- 202 (110 cd) milliampere
- 210 (115 cd) milliampere
- 66 (15 cd) milliampere
- 77 (15/75 cd) milliampere
- 94 (30 cd) milliampere
- Maximum Operating Humidity
- 93
- Brand
- System Sensor
- Product Type
- Strobe
- Compatible Environments
- Indoor
- Material
- Plastic
- Color
- Red
- Maximum Operating Voltage : 17.5 (Nominal) volt|33 (Nominal) volt
- Minimum Operating Voltage : 16 (Nominal) volt|8 (Nominal) volt
- Light Output Rating : 110|115 cd|15|15/75|30|75|95
- Current Rating : 123 (15 cd) milliampere|142 (15/75 cd) milliampere|158 (75 cd) milliampere|181 (95 cd) milliampere|202 (110 cd) milliampere|210 (115 cd) milliampere|66 (15 cd) milliampere|77 (15/75 cd) milliampere|94 (30 cd) milliampere
- Maximum Operating Humidity : 93
- Brand : System Sensor
- Product Type : Strobe
- Compatible Environments : Indoor
- Material : Plastic
- Color : Red
