Air Quality Sensors

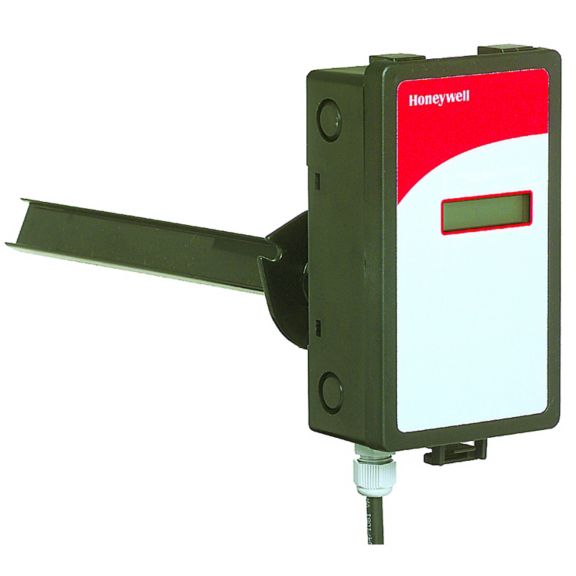

C7232B Duct Mount CO2 Sensor
The C7232 stand-alone Carbon Dioxide (CO2) Sensors and Controllers are used for determining ventilation necessity with HVAC controllers and to manage the amount of fresh outdoor air supplied to maintain acceptable levels of CO2 in the space.
Overview
The C7232 Sensor and Controller is a stand-alone carbon dioxide (CO2) sensor for use in determining ventilation necessity with HVAC controllers. The C7232 measures the CO2 concentration in the ventilated space or duct. The C7232 is used in ventilation and air conditioning systems to control the amount of fresh outdoor air supplied to maintain acceptable levels of CO2 in the space.
Features & Benefits:- Used for CO2 based ventilation control.
- Models available with LCD that provides sensor readings and status information.
- Non-Dispersion-Infrared (NDIR) technology used to measure carbon dioxide gas.
- Device provides voltage or current output based on CO2 levels.
- Models available with SPST relay output.
- Automatic Background Calibration (ABC) algorithm based on long-term evaluation reduces required typical zero-drift check maintenance.
- CE
- Underwriters Laboratories Inc. Listed, File No. E4436
- cUL
- C7232B: Flammability Rating, UL94-5V

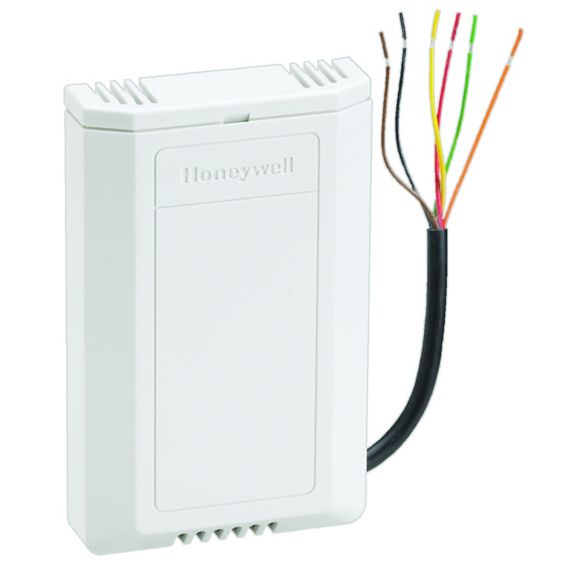

- C7232A: NEMA1
- C7232B: NEMA3
Specifications
Others
- Alarm Relay Output
- 0/4 - 20 milliampere
- Minimum Storage Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- 32 degree Fahrenheit
- Maximum Storage Temperature
- 158 degree Fahrenheit
- 70 degree Celsius
- Brand
- Honeywell BMS NA
- Mounting Type
- Wall inch
- Gases Detected
- CO2
- Product Type
- Carbon Dioxide (CO2) Sensors & Controller Degrees Celsius
Others
- Alarm Relay Output
- 0/4 - 20 milliampere
- Minimum Storage Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- 32 degree Fahrenheit
- Maximum Storage Temperature
- 158 degree Fahrenheit
- 70 degree Celsius
- Brand
- Honeywell BMS NA
- Mounting Type
- Wall inch
- Gases Detected
- CO2
- Product Type
- Carbon Dioxide (CO2) Sensors & Controller Degrees Celsius
- Alarm Relay Output : 0/4 - 20 milliampere
- Minimum Storage Temperature : -20 degree Celsius|-4 degree Fahrenheit
- Minimum Operating Ambient Temperature : 0 degree Celsius|32 degree Fahrenheit
- Maximum Storage Temperature : 158 degree Fahrenheit|70 degree Celsius
- Brand : Honeywell BMS NA
- Mounting Type : Wall inch
- Gases Detected : CO2
- Product Type : Carbon Dioxide (CO2) Sensors & Controller Degrees Celsius
Sort
Reference Guides
Document Title
Document Type
File Size
Data Sheet
Document Title
Document Type
File Size
Document Title
Document Type
File Size
Product Number
SKU
Description
C7232B1006/U
CO2 Sensor, Wall-Mount, Display, 02 to 10V DC or 04 to 20mA Output
C7232B1014/U

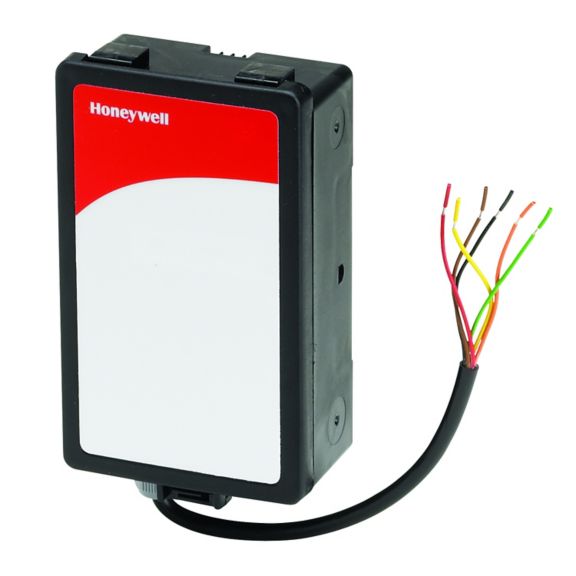

CO2 Sensor, Duct-Mount, 02 to 10V DC or 04 to 20mA
C7232B1022/U
CO2 sensor, Include Display, Duct-Mount, 142 mm H x 84 mm W x 87 mm D, 203 mm Sensing Tube, No Logo
C7232B1030/U
CO2 Sensor, Duct-Mount, 02 to 10V DC or 04 to 20 mA
SKU
Description
C7232B1006/U
CO2 Sensor, Wall-Mount, Display, 02 to 10V DC or 04 to 20mA Output
C7232B1014/U
CO2 Sensor, Duct-Mount, 02 to 10V DC or 04 to 20mA
C7232B1022/U
CO2 sensor, Include Display, Duct-Mount, 142 mm H x 84 mm W x 87 mm D, 203 mm Sensing Tube, No Logo
C7232B1030/U
CO2 Sensor, Duct-Mount, 02 to 10V DC or 04 to 20 mA
