Current Sensors

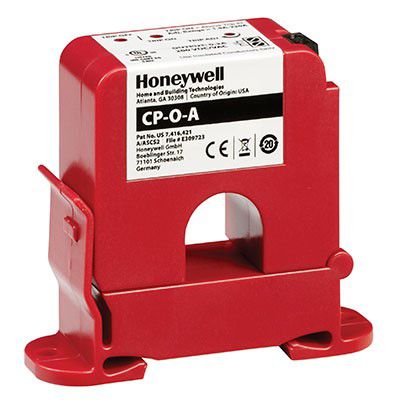

CP-X Split-Core Current Switch

CP-X split-core current switches are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment for equipment failure, preventative maintenance, status, and electrical load status.

CP-X split-core current switches are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment for equipment failure, preventative maintenance, status, and electrical load status. The switches can be used to determine the runtime of your equipment as well as basic load trending applications where the equipment runs when logging the contact closures on the building management system or PLC.

Features & Benefits:
  • Includes 35 mm DIN rail mounting foot for easy installation in panel-mount applications
  • Monitored AC current type
  • Maximum of 600V AC
  • Operating frequency range 40 to 1 KHz
Certifications:
  • UL/CUL US Listed (UL 508) Ind. Control Equipment (File # E309723)
  • RoHS2
  • WEEE

Others

  • Minimum Operating Humidity
    • 0% Non-Condensing
  • Maximum Operating Humidity
    • 95% Non-Condensing
  • Maximum Operating Ambient Temperature
    • 40 degree Celsius
    • 104 degree Fahrenheit
  • Brand
    • Honeywell BMS NA

Others

  • Minimum Operating Humidity
    • 0% Non-Condensing
  • Maximum Operating Humidity
    • 95% Non-Condensing
  • Maximum Operating Ambient Temperature
    • 40 degree Celsius
    • 104 degree Fahrenheit
  • Brand
    • Honeywell BMS NA
  • Brand : Honeywell BMS NA
  • Minimum Operating Humidity : 0% Non-Condensing
  • Maximum Operating Humidity : 95% Non-Condensing
  • Maximum Operating Ambient Temperature : 40 degree Celsius|104 degree Fahrenheit
Installation Instructions
Document Title
File Size
Date Added
0.65 MB
2/17/2022
0.64 MB
2/11/2022
Document Title
File Size
Date Added
0.65 MB
2/17/2022
0.64 MB
2/11/2022
SKU
Description
alt
CP-O-AL
Current Switch, Adjustable, Split-Core, Normally Open, 0.6 to 180A
alt
CP-C-F
Current Switch, Fixed, Split-Core, NC, 1.5A
alt
CP-C-A
Current Switch, Adjustable, Split-Core, Normally Closed
alt
CP-O-FL
Current Switch, Fixed, Split-Core, Normally Open, 0.5A
alt
CP-O-A
Current Switch, Adjustable, Split-Core, Normally Open
alt
CP-O-F
Current Switch, Fixed, Split-Core, Normally Open, 1.5A
