    Current Sensors

    HX22 Series Current Transducer

    HX22 Series Current Transducers provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.

    Overview

    HX22 Series Hawkeye 622-xx, 722, 822, and 922 Current Transducers provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers. Self-powered analog current sensor simplifies installation. No external power is required for sensor. Self-gripping, split-core design is for fast retrofit installation. Hence no need to remove conductor. Economical solid-core models feature adjustable bracket for easy alignment. Factory calibrated ranges are for increased flexibility and resolution. There are no jumpers on unit hence it reduces installation error.

    Features & Benefits:
    • Self-powered analog current sensor
    • No external power required
    • Fast retrofit installation
    • Factory calibrated ranges
    • No jumpers
    Certifications:
    • UL 508 open device listing
    • CE: EN61010-1
    • CAT III, Pollution Degree 2, basic insulation
    Specifications

    Others

    • Minimum Operating Humidity
      • 10 (Non-Condensing) percentage relative humidity
    • Output Signal
      • 0 - 5 voltage direct current
    • Maximum Operating Humidity
      • 90 (Non-Condensing) percentage relative humidity
    • Maximum Operating Ambient Temperature
      • 140 degree Fahrenheit
      • 60 degree Celsius
    • Minimum Operating Ambient Temperature
      • -15 degree Celsius
      • 5 degree Fahrenheit
    • Product Type
      • Current Transducer Degrees Celsius
    • Brand
      • Alerton

    Others

    • Minimum Operating Humidity
      • 10 (Non-Condensing) percentage relative humidity
    • Output Signal
      • 0 - 5 voltage direct current
    • Maximum Operating Humidity
      • 90 (Non-Condensing) percentage relative humidity
    • Maximum Operating Ambient Temperature
      • 140 degree Fahrenheit
      • 60 degree Celsius
    • Minimum Operating Ambient Temperature
      • -15 degree Celsius
      • 5 degree Fahrenheit
    • Product Type
      • Current Transducer Degrees Celsius
    • Brand
      • Alerton
    • Minimum Operating Humidity : 10 (Non-Condensing) percentage relative humidity
    • Output Signal : 0 - 5 voltage direct current
    • Maximum Operating Humidity : 90 (Non-Condensing) percentage relative humidity
    • Maximum Operating Ambient Temperature : 140 degree Fahrenheit|60 degree Celsius
    • Minimum Operating Ambient Temperature : -15 degree Celsius|5 degree Fahrenheit
    • Product Type : Current Transducer Degrees Celsius
    • Brand : Alerton
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    V-H622-10
    Current Transducer, Split-Core, 0 to 10A, 0 to 5V DC
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h622-10-hx22-series-current-transducer-primaryimage
    V-H622-10
    Current Transducer, Split-Core, 0 to 10A, 0 to 5V DC
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h622-10-hx22-series-current-transducer-primaryimage
    V-H622-20
    Current Transducer, Split-Core, 0 to 20A, 0 to 5V DC
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h622-20-hx22-series-current-transducer-primaryimage
    V-H622-20
    Current Transducer, Split-Core, 0 to 20A, 0 to 5V DC
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h622-20-hx22-series-current-transducer-primaryimage
    V-H722
    Current Transducer, Current Switch, Solid-Core, 0 to 60A
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h722-hx22-series-current-transducer-primaryimage
    V-H722
    Current Transducer, Current Switch, Solid-Core, 0 to 60A
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h722-hx22-series-current-transducer-primaryimage
    V-H722HC
    Current Transducer, Current Switch, Solid-Core, 0 to 50100200A, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h722hc-hx22-series-current-transducer-primaryimage
    V-H722HC
    Current Transducer, Current Switch, Solid-Core, 0 to 50100200A, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h722hc-hx22-series-current-transducer-primaryimage

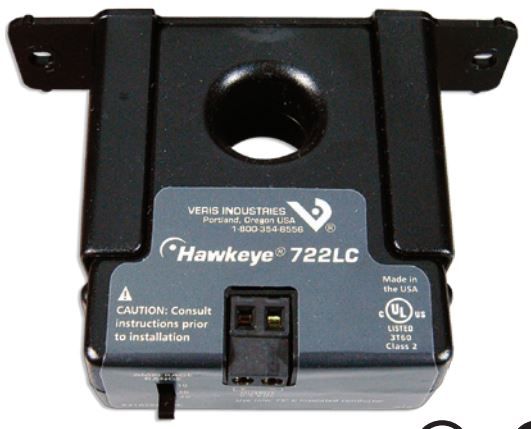

    V-H722LC
    Current Transducer, Current Switch, Solid-Core, 0 to 102040A, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h722lc-hx22-series-current-transducer-primaryimage
    V-H722LC
    Current Transducer, Current Switch, Solid-Core, 0 to 102040A, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h722lc-hx22-series-current-transducer-primaryimage
    V-H822
    Current Transducer, Solid-Core, 0 to 10A, 0 to 5V DC, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h822-hx22-series-current-transducer-primaryimage
    V-H822
    Current Transducer, Solid-Core, 0 to 10A, 0 to 5V DC, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h822-hx22-series-current-transducer-primaryimage
    V-H822-20
    Current Transducer, Solid-Core, 0 to 20A, 0 to 5V DC, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h822-20-hx22-series-current-transducer-primaryimage
    V-H822-20
    Current Transducer, Solid-Core, 0 to 20A, 0 to 5V DC, Self-Powered
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h822-20-hx22-series-current-transducer-primaryimage
    V-H922
    Current Transducer, Split-Core, 0 to 3060120A, 0 to 5V DC
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h922-hx22-series-current-transducer-primaryimage
    V-H922
    Current Transducer, Split-Core, 0 to 3060120A, 0 to 5V DC
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-v-h922-hx22-series-current-transducer-primaryimage
