Current Sensors

MCSS/MCSP Current Switch

MCSS/MCSP current switches are miniature Go/No Go current status switches designed to provide status information on AC current supplied equipment.

MCSS/MCSP current switches are miniature Go/No Go current status switches designed to provide status information on AC current supplied equipment. The output of these switches uses a normally open (NO) solid-state switch (more reliable than a relay) and are non-polarity sensitive. These units do not need power supplies, as they induce the current from the conductors being monitored.

Features & Benefits:
  • Maximum sensing current voltage: 600V AC
  • Isolation voltage: 2,200V AC
  • Operating frequency: 50 Hz, 60 Hz
  • Operating temperature range: -30 to 60ºC

Others

  • Minimum Operating Ambient Temperature
    • -30 degree Celsius
    • -22 degree Fahrenheit
  • Maximum Operating Humidity
    • 95 (Non-Condensing) percentage relative humidity
  • Minimum Operating Humidity
    • 0 (Non-Condensing) percentage relative humidity
  • Maximum Operating Ambient Temperature
    • 140 degree Fahrenheit
    • 60 degree Celsius

Others

  • Minimum Operating Ambient Temperature
    • -30 degree Celsius
    • -22 degree Fahrenheit
  • Maximum Operating Humidity
    • 95 (Non-Condensing) percentage relative humidity
  • Minimum Operating Humidity
    • 0 (Non-Condensing) percentage relative humidity
  • Maximum Operating Ambient Temperature
    • 140 degree Fahrenheit
    • 60 degree Celsius
  • Minimum Operating Ambient Temperature : -30 degree Celsius|-22 degree Fahrenheit
  • Maximum Operating Humidity : 95 (Non-Condensing) percentage relative humidity
  • Minimum Operating Humidity : 0 (Non-Condensing) percentage relative humidity
  • Maximum Operating Ambient Temperature : 140 degree Fahrenheit|60 degree Celsius
Others
Name
Description
File Size
Date
Size
62-0413—02 - MCSS/MCSP Current Switches
Installation Instructions
1023.26 KB
8/19/2021
PDF 1023.26 KB
63-2720—02 - MCSS/MCSP Current Switches
Specification Data
730.93 KB
8/19/2021
PDF 730.93 KB
Name
Description
File Size
Date
Size
62-0413—02 - MCSS/MCSP Current Switches
Installation Instructions
1023.26 KB
8/19/2021
PDF 1023.26 KB
63-2720—02 - MCSS/MCSP Current Switches
Specification Data
730.93 KB
8/19/2021
PDF 730.93 KB
SKU
Description
alt
MCSS-A/U
Current Switch, Solid-Core, Adjustable
alt
MCSP-F/U
Current Switch, Split-Core, Fixed
alt
MCSS-F/U
Current Switch, Solid-Core, Fixed
alt

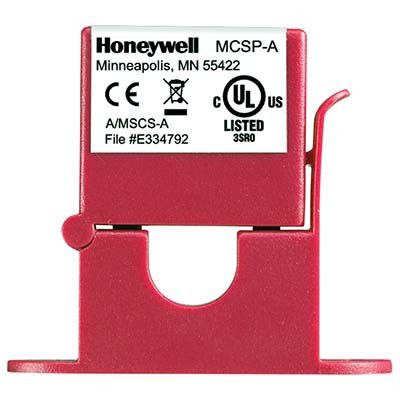

MCSP-A/U
Current Switch, Split-Core, Adjustable
