Current Sensors
RIBX Series Current Switch
The Functional Devices Relay in a Box RIBX Series provides a unique and cost-effective solution to on/off motor control and current sensing status indication
Overview
The Functional Devices Relay in a Box RIBX Series provides a unique and cost-effective solution to on/off motor control and current sensing status indication. Combined in a single, convenient junction box with high- and low-voltage separation are a control relay and a current sensing status switch. A three-position closed/open/auto switch is available to override the output of the relay. This versatile product allows both control and status sensing of electrical loads by a BAS, all in a self-contained, easy-to-install housing.
Features & Benefits:- Cost-effective current sensing with a control relay
- Self-contained housing with high and low voltage separation
- LED indication of relay and current sensor trip
- Optional relay contact override switch
- Plenum-rated housing
- UL
- CE
- RoHS
Specifications
Others
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- Output Signal
- 0.4 ampere
- Minimum Operating Ambient Temperature
- -30 degree Fahrenheit
- Minimum Operating Humidity
- 5 (Non-Condensing) Percentage
- Maximum Operating Humidity
- 95 (Non-Condensing) Percentage
- Product Type
- Relay & AC Current Switch Degrees Celsius
- Brand
- Alerton
Others
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- Output Signal
- 0.4 ampere
- Minimum Operating Ambient Temperature
- -30 degree Fahrenheit
- Minimum Operating Humidity
- 5 (Non-Condensing) Percentage
- Maximum Operating Humidity
- 95 (Non-Condensing) Percentage
- Product Type
- Relay & AC Current Switch Degrees Celsius
- Brand
- Alerton
- Maximum Operating Ambient Temperature : 140 degree Fahrenheit
- Output Signal : 0.4 ampere
- Minimum Operating Ambient Temperature : -30 degree Fahrenheit
- Minimum Operating Humidity : 5 (Non-Condensing) Percentage
- Maximum Operating Humidity : 95 (Non-Condensing) Percentage
- Product Type : Relay & AC Current Switch Degrees Celsius
- Brand : Alerton
Product Number
Please Sign In to view part numbers available for purchase based on your account
Part Number
Description
Leaf Category
Thumbnail
Add to list
RIBMX24BF
4in Track Mount 20 Amp RelayCurrent Switch Combination, Fixed
RIBMX24BF
4in Track Mount 20 Amp RelayCurrent Switch Combination, Fixed

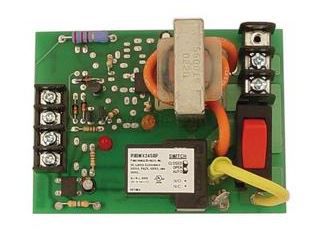

RIBMX24SBF
4in Track Mount 20 Amp RelayCurrent Switch Combination, Fixed Plus Override Switch
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ribmx24sbf-ribx-series-current-switch-primaryimage
RIBMX24SBF
4in Track Mount 20 Amp RelayCurrent Switch Combination, Fixed Plus Override Switch
