Pressure Switches & Sensors

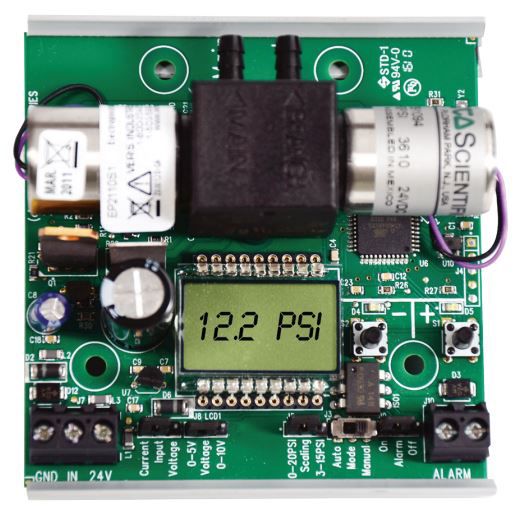

EP2 Series Electropneumatic Pressure Transducer
Discontinued
The EP2 series electropneumatic pressure transducers uses microcontrolled poppet valve technology for highly accurate pressure sensing in multiple applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until
The EP2 Series electropneumatic pressure transducers uses microcontrolled poppet valve technology for highly accurate pressure sensing in multiple applications. The poppet valves consume no air, eliminating unnecessary air losses in the system and allowing for stable and reliable operation.
Features & Benefits:- Field selectable: Field-selectable 4 to 20 mA/0-5 V/0-10V DC input for application flexibility
- Quiet operation: Poppet valve technology for quiet operation
- Manual override: Manual override with set and hold feature
- Multi-point calibration: 3 to 15psi (5-point calibration), 0 to 20psi (6-point calibration)
- Pressure loss alarm: Pressure loss alarm provides a contact
- Fail-safe vent solenoids bleed branch pressure on power failure for added safety
- CE
Specifications
Others
- Minimum Operating Ambient Temperature
- -4 degree Celsius
- 25 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- Connection Size
- 0.18 inch
- 4.3 millimetre
- Brand
- Alerton
- Connection Type
- Male
- Mounting Type
- Panel inch
Others
- Minimum Operating Ambient Temperature
- -4 degree Celsius
- 25 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- Connection Size
- 0.18 inch
- 4.3 millimetre
- Brand
- Alerton
- Connection Type
- Male
- Mounting Type
- Panel inch
- Minimum Operating Ambient Temperature : -4 degree Celsius|25 degree Fahrenheit
- Maximum Operating Ambient Temperature : 140 degree Fahrenheit|60 degree Celsius
- Connection Size : 0.18 inch|4.3 millimetre
- Brand : Alerton
- Connection Type : Male
- Mounting Type : Panel inch
Name
Date
Size
_blank
Minimum_Operating_Ambient_Temperature@minimum_operating_ambient_temperature|Supply_Voltage@supply_voltage
Please sign in to view part numbers available for purchase based on your account Sign In
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Compare
Description
Leaf Category
Thumbnail
Add to list
V-EP2100S2
Transducer, Selectable 3-150-20 psi, Standard, EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2100S2
Transducer, Selectable 3-150-20 psi, Standard, EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2100S3
Transducer, Selectable 3-150-20 psi, Standard, Slide SwitchAutoManual Plus EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2100S3
Transducer, Selectable 3-150-20 psi, Standard, Slide SwitchAutoManual Plus EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2101S
Transducer, Selectable 3-150-20 psi, Vent On Power Fail, Standard
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2101S
Transducer, Selectable 3-150-20 psi, Vent On Power Fail, Standard
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2101S2
Transducer, Selectable 3-150-20 psi, Vent On Power Fail, Standard, EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2101S2
Transducer, Selectable 3-150-20 psi, Vent On Power Fail, Standard, EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2101S3
Transducer, Selectable 3-150-20 psi, Vent On Power Fail, Standard, Slide SwitchAutoManual Plus EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2101S3
Transducer, Selectable 3-150-20 psi, Vent On Power Fail, Standard, Slide SwitchAutoManual Plus EP Cover Plate
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2111S
Transducer, Selectable 3-150-20 psi, Loss Alarm, Vent On Power Fail, Standard
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2111S
Transducer, Selectable 3-150-20 psi, Loss Alarm, Vent On Power Fail, Standard
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2120S1
Transducer, Selectable 3-150-20 psi, Manual Mode Alarm, Standard, Slide SwitchAutoManual
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2120S1
Transducer, Selectable 3-150-20 psi, Manual Mode Alarm, Standard, Slide SwitchAutoManual
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2121S
Transducer, Selectable 3-150-20 psi, Manual Mode Alarm, Vent on Power Fail, Standard
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
V-EP2121S
Transducer, Selectable 3-150-20 psi, Manual Mode Alarm, Vent on Power Fail, Standard
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-ep2-series-electropneumatic-pressure-transducer-primaryimage
