    Pressure Switches & Sensors

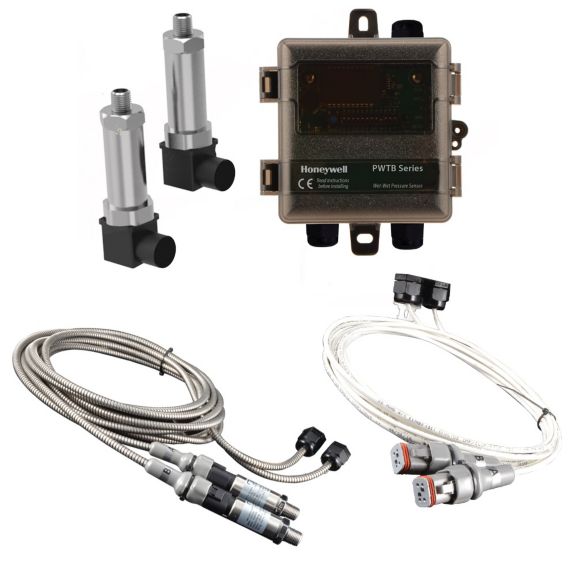

    PWTB Series Wet Pressure Sensors

    The PWTB Series Wet Differential Pressure Sensors provide reliable, accurate measurement for controlling and monitoring liquid, gas, and vapor based systems.

    Overview
    The PWTB Series wet differential pressure sensors provide reliable, accurate measurement for a variety of applications including:
    - Demand measurement in HVAC systems for pump speed control and local monitoring
    - CW/HW system differential pressure
    - Chiller/boiler differential pressure
    - Process control systems
    - Flow measurement of gases, vapors, and liquids compatible with 316L SST
    - System leak detection

    Features & Benefits:
    • Up to five selectable ranges plus high resolution mode for lower pressures.
    • User friendly LCD displays in PSID or kPa.
    • Absolute mode outputs absolute value of difference.
    • Port swap corrects plumbing errors.
    • NEMA 4X rated enclosure
    • Uni/bi-directional modes.
    • Test mode: Forces full-scale output.
    • Over range icon warning.
    • Switch selectable outputs: 2-wire 4-20mA, 3-wire 0-5V or 0-10V.
    • High reliability withstandard integrated snubbers protect sensing elements from water hammer damage.
    • Reduced plumbing complexity and cost with remote mounted transmitter and wired pressure transducers.
    • No bypass required for installation as sensors can be installed in tees or elbows for simple air bleeding.
    • Pre-wired plenum and armored cable versions minimize wiring issues.
    Others
    Name
    Description
    File Size
    Date
    Size
    PWTB Series Wet Pressure Sensors Sell Sheet
    application/pdf 2.37 MB
    6/7/2022
    2.37 MB
    PWTB Series Wet Pressure Sensor Data Sheet
    application/pdf 166.74 KB
    5/14/2023
    166.74 KB
    PWTB Series Wet Pressure Sensors Installation Instructions
    application/pdf 2.76 MB
    5/8/2023
    2.76 MB
    Brochure
    Name
    Description
    File Size
    Date
    Size
    Sensor Selection Guide
    application/pdf 3.36 MB
    5/11/2023
    3.36 MB
    Name
    Description
    File Size
    Date
    Size
    PWTB Series Wet Pressure Sensors Sell Sheet
    application/pdf 2.37 MB
    6/7/2022
    2.37 MB
    PWTB Series Wet Pressure Sensor Data Sheet
    application/pdf 166.74 KB
    5/14/2023
    166.74 KB
    Sensor Selection Guide
    application/pdf 3.36 MB
    5/11/2023
    3.36 MB
    PWTB Series Wet Pressure Sensors Installation Instructions
    application/pdf 2.76 MB
    5/8/2023
    2.76 MB
    Name
    Description
    File Size
    Date
    Size
    PWTB Series Wet Pressure Sensors Sell Sheet
    2.37 MB
    6/7/2022
    PWTB Series Wet Pressure Sensor Data Sheet
    166.74 KB
    5/14/2023
    PWTB Series Wet Pressure Sensors Installation Instructions
    2.76 MB
    5/8/2023
    Sensor Selection Guide
    3.36 MB
    5/11/2023
    Product Number
    Part Number
    Description
    Add to list
    PWTB100-AC-9
    WET PRESS SENS 100 PSID 9FT ACBL
    PWTB100-PC-9
    WET PRESS SENS 100 PSID 9FT CBL
    PWTB100-X
    WET PRESS SENS 100 PSID NO CABLE
    PWTB250-AC-9
    WET PRESS SEN 250 PSID 9FT ACBL
    PWTB250-PC-9
    WET PRESS SENS 250 PSID 9FT CBL
    PWTB250-X
    WET PRESS SENS 250 PSID NO CABLE
    PWTB50-AC-9
    WET PRESS SENS 50 PSID 9FT ACBL
    PWTB50-PC-9
    WET PRESS SENS 50 PSID 9FT CBL
    PWTB50-X
    WET PRESS SENS 50 PSID NO CABLE
