Pressure Switches & Sensors

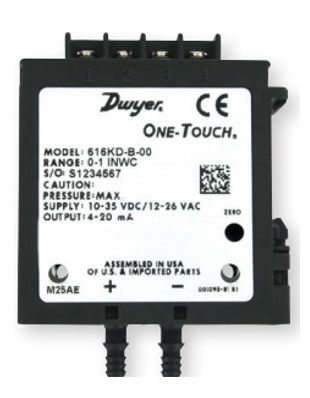

Series 616KD Differential Pressure Transmitters
The Series 616KD Differential Pressure Transmitters with One-Touch Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals.
Overview
The Series 616KD Differential Pressure Transmitters with One-Touch Digital Push-Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals.
Features & Benefits:- Simple calibration push-button sets back zero and span saving time installing
- Cost effective and compact device suitable for OEM applications
- Ranges and accuracy selection cover a wide range of applications
- 1/8 NPT process connection allows for use with metal barbed fittings or compression fittings
- CE
Specifications
Others
- Output Signal
- 4 - 20 milliampere
- Minimum Operating Ambient Temperature
- -17.8 degree Celsius
- 0 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- Connection Size
- 1/8 inch
- 3 millimetre
- 3/16 inch
- 5 millimetre
- Mounting Type
- Vertical inch
- Brand
- Alerton
- Connection Type
- Barbed
Others
- Output Signal
- 4 - 20 milliampere
- Minimum Operating Ambient Temperature
- -17.8 degree Celsius
- 0 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- Connection Size
- 1/8 inch
- 3 millimetre
- 3/16 inch
- 5 millimetre
- Mounting Type
- Vertical inch
- Brand
- Alerton
- Connection Type
- Barbed
- Output Signal : 4 - 20 milliampere
- Minimum Operating Ambient Temperature : -17.8 degree Celsius|0 degree Fahrenheit
- Maximum Operating Ambient Temperature : 140 degree Fahrenheit|60 degree Celsius
- Connection Size : 1/8 inch|3 millimetre|3/16 inch|5 millimetre
- Mounting Type : Vertical inch
- Brand : Alerton
- Connection Type : Barbed
Product Number
Please Sign In to view part numbers available for purchase based on your account
Part Number
Description
Leaf Category
Thumbnail
Add to list
616KD-B-00
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 1wc, +-1% FS
616KD-B-00
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 1wc, +-1% FS
616KD-B-00-V
Differential Pressure Transmitter, 616KD, 0 to 1wc, +-1% FS
616KD-B-00-V
Differential Pressure Transmitter, 616KD, 0 to 1wc, +-1% FS
616KD-B-01
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 2wc, +-1% FS
616KD-B-01
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 2wc, +-1% FS
616KD-B-02
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 3wc, +-1% FS
616KD-B-02
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 3wc, +-1% FS
616KD-B-02-V
Differential Pressure Transmitter, 616KD, 0 to 3wc, +-1% FS
616KD-B-02-V
Differential Pressure Transmitter, 616KD, 0 to 3wc, +-1% FS
616KD-B-03
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 5wc, +-1% FS
616KD-B-03
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 5wc, +-1% FS
616KD-B-03-V
Differential Pressure Transmitter, 616KD, 0 to 5wc, +-1% FS
616KD-B-03-V
Differential Pressure Transmitter, 616KD, 0 to 5wc, +-1% FS
616KD-B-04
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 10wc, +-1% FS
616KD-B-04
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 10wc, +-1% FS
616KD-B-04-V
Differential Pressure Transmitter, 616KD, 0 to 10wc, +-1% FS
616KD-B-04-V
Differential Pressure Transmitter, 616KD, 0 to 10wc, +-1% FS
616KD-B-05
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 15wc, +-1% FS
616KD-B-05
Differential Pressure Transmitter, 616KD, 4 to 20mA, 0 to 15wc, +-1% FS
