Very Low Differential Pressure Transducer

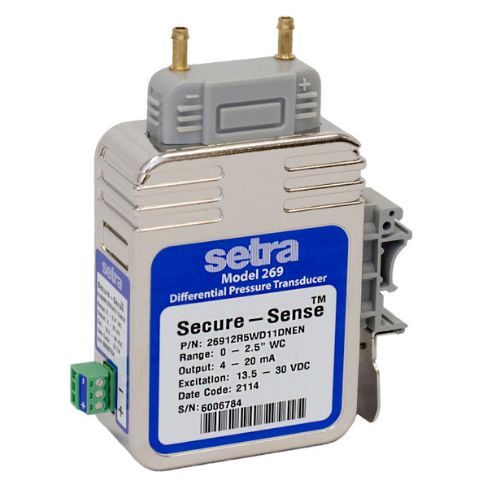

Setra Systems Model 269 pressure transducers sense differential pressure and convert this pressure difference to a proportional electrical output for either unidirectional or bidirectional pressure ranges.
Overview
Setra Systems Model 269 pressure transducers sense differential pressure and convert this pressure difference to a proportional electrical output for either unidirectional or bidirectional pressure ranges. The 269 Series is offered with a 4 to 20 mA analog output.
Designed specifically for high performance applications, these transducers are capable of measuring pressures and flows at greater resolutions in critical environments.
Features & Benefits:- Installation Time Minimized with Din Rail Mounting and Easy-to- Access Pressure Ports and Electrical Connections
- Removable Process Heads Eliminates the Need to Cut Tubes for Easier Installation
- Detachable Terminal Block so Field Wiring Can Remain In-Situ during Calibration
- Calibration Secure - Calibration Key for Making Zero and Span Adjustments
- 2-Wire 4 to 20 mA Analog Output Compatible with Energy Management Systems
- Reverse Wiring Protection
- Internal Regulation Permits Use with Unregulated DC Power Supplies
- Fire Retardent Case
- Calibration Certs Available
- 2:1 Turndown Ratio Available
- ISO 9001:2000
- UL 94 V-0
- CE Conformance
Specifications
Others
- Maximum Operating Ambient Temperature
- 160 degree Fahrenheit
- Output Signal
- 4 - 20 milliampere
- Minimum Storage Temperature
- -40°F
- Minimum Operating Ambient Temperature
- -20 degree Fahrenheit
- Maximum Storage Temperature
- 185 degree Fahrenheit
- Connection Size
- 3/16 inch
- Pressure Type
- Differential
- Brand
- Alerton
- Connection Type
- Barbed
Others
- Maximum Operating Ambient Temperature
- 160 degree Fahrenheit
- Output Signal
- 4 - 20 milliampere
- Minimum Storage Temperature
- -40°F
- Minimum Operating Ambient Temperature
- -20 degree Fahrenheit
- Maximum Storage Temperature
- 185 degree Fahrenheit
- Connection Size
- 3/16 inch
- Pressure Type
- Differential
- Brand
- Alerton
- Connection Type
- Barbed
- Maximum Operating Ambient Temperature : 160 degree Fahrenheit
- Output Signal : 4 - 20 milliampere
- Minimum Storage Temperature : -40°F
- Minimum Operating Ambient Temperature : -20 degree Fahrenheit
- Maximum Storage Temperature : 185 degree Fahrenheit
- Connection Size : 3/16 inch
- Pressure Type : Differential
- Brand : Alerton
- Connection Type : Barbed
Product Number
Please Sign In to view part numbers available for purchase based on your account
Part Number
Description
Leaf Category
Thumbnail
Add to list
2691001WB11BDEN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, LCD, +-0.5%FS
2691001WB11BDEN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, LCD, +-0.5%FS
2691001WB11BDVN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, LCD, +-0.25%FS
2691001WB11BDVN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, LCD, +-0.25%FS
2691001WB11BNEN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, +-0.5%FS
2691001WB11BNEN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, +-0.5%FS
2691001WB11BNGN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, +-1%FS
2691001WB11BNGN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, +-1%FS
2691001WB11BNVN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, +-0.25%FS
2691001WB11BNVN
Ultra Low Pressure Transducer, Model 269, +-1wc, Base-Mount, +-0.25%FS
2691001WB11DDEN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, LCD, +-0.5%FS
2691001WB11DDEN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, LCD, +-0.5%FS
2691001WB11DDGN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, LCD, +-1%FS
2691001WB11DDGN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, LCD, +-1%FS
2691001WB11DDVN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, LCD, +-0.25%FS
2691001WB11DDVN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, LCD, +-0.25%FS
2691001WB11DNEN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, +-0.5%FS
2691001WB11DNEN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, +-0.5%FS
2691001WB11DNGN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, +-1%FS
2691001WB11DNGN
Ultra Low Pressure Transducer, Model 269, +-1wc, DIN Rail, +-1%FS
