Smoke Detectors

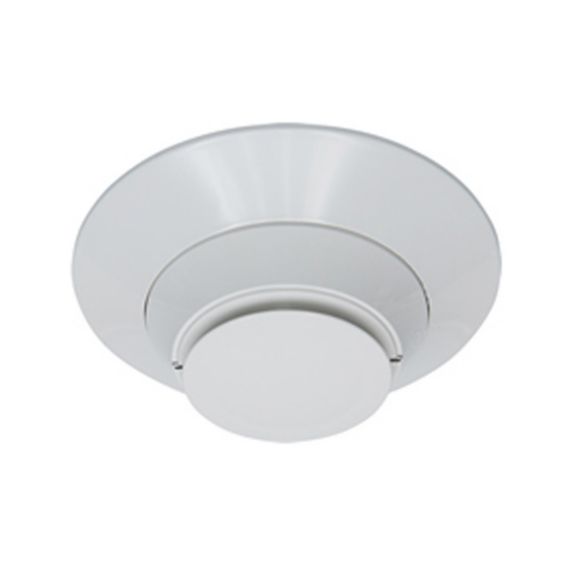

ASD-PL3 Intelligent Photoelectric Smoke Sensor

ASD-PL3 intelligent photoelectric smoke sensors are plug-in type smoke sensors that combine a photoelectronic sensing chamber with addressable-analog communications.

ASD-PL3 intelligent photoelectric smoke sensors are plug-in smoke sensors that combine a photoelectronic sensing chamber with addressable-analog communications. The sensors transmit an analog representation of smoke density over communication lines to control panels. Rotary dial switches are provided for setting the sensor’s address.

Features & Benefits:
  • Modern profile for improved aesthetics
  • Visual rotary, decimal switch addressing (01 to 159)
  • Built-in functional test switch activated by an external magnet
  • Dual bi-color LEDs flash green whenever the sensor is addressed and turn a steady red during an alarm
  • Optional relay, isolator, or sounder bases
  • Low standby current
  • Analog addressable communication
  • Stable communication technique with noise immunity
  • Optional remote, single-gang LED indicator (RA100Z)
  • Compatible with Gamewell-FCI® analog addressable panels
Certifications:
  • UL 268
  • UL268A
  • NFPA

Others

  • Maximum Standby Current
    • 200 µA
  • Alarm Current
    • 2 milliampere
  • Maximum Alarm Current
    • 2 milliampere
  • Minimum Operating Humidity
    • 10 Percentage
  • Maximum Operating Voltage
    • 32 voltage direct current
  • Maximum Operating Humidity
    • 93 Percentage
  • Minimum Operating Ambient Temperature
    • 0 degree Celsius
    • 32 degree Fahrenheit
  • Detection Sensor Type
    • Photoelectric
  • Brand
    • Gamewell-FCI
  • Conventional or Addressable
    • Addressable

Others

  • Maximum Standby Current
    • 200 µA
  • Alarm Current
    • 2 milliampere
  • Maximum Alarm Current
    • 2 milliampere
  • Minimum Operating Humidity
    • 10 Percentage
  • Maximum Operating Voltage
    • 32 voltage direct current
  • Maximum Operating Humidity
    • 93 Percentage
  • Minimum Operating Ambient Temperature
    • 0 degree Celsius
    • 32 degree Fahrenheit
  • Detection Sensor Type
    • Photoelectric
  • Brand
    • Gamewell-FCI
  • Conventional or Addressable
    • Addressable
  • Detection Sensor Type : Photoelectric
  • Brand : Gamewell-FCI
  • Conventional or Addressable : Addressable
  • Minimum Operating Ambient Temperature : 0 degree Celsius|32 degree Fahrenheit
  • Maximum Standby Current : 200 µA
  • Alarm Current : 2 milliampere
  • Maximum Alarm Current : 2 milliampere
  • Minimum Operating Humidity : 10 Percentage
  • Maximum Operating Voltage : 32 voltage direct current
  • Maximum Operating Humidity : 93 Percentage
Others
Document Title
File Size
Date Added
Engineering Specifications
Document Title
File Size
Date Added
Installation Instructions
Document Title
File Size
Date Added
Data Sheet
Document Title
File Size
Date Added
Catalog
Document Title
File Size
Date Added
SKU
Description
alt
ASD-PL3-IV
Photoelectric Smoke Detector, Ivory
alt
ASD-PL3
Photoelectric Smoke Detector, Bright White
