Temperature Sensors

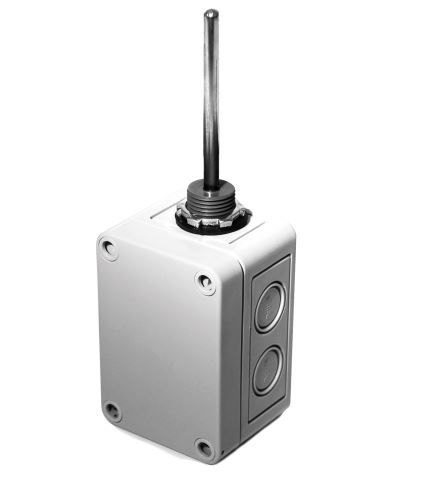

Immersion Series Thermistor
The Immersion Series Thermistors are a part of Automation Components Inc. by Honeywell.These thermistors are used for temperature detection in Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor and Chillers.
Overview
The Immersion series Thermistors by Automation Components Inc. are designed for temperature detection of Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor and Chillers. These temperature sensors are specially manufactured with double encapsulation process to eliminate the effects of moisture. In order to increase the response time these sensors come with high quality, thermally conductive epoxy. The “INW” version includes a standard ½” NPS Male process thread to be used with an optional machined thermowell or in an existing thermowell application.
Features & Benefits:- Negative temperature co-efficient temperature sensors
- Specially manufactured with double encapsulation process to eliminate the effects of moisture
- CE
- RoHS2
- WEEE
Specifications
Others
- Minimum Operating Ambient Temperature
- -40 degree Fahrenheit
- -40 degree Celsius
- Maximum Operating Ambient Temperature
- 150 degree Celsius
- 302 degree Fahrenheit
- Product Type
- Immersion Sensor with NEMA 4X Housing Degrees Celsius
- Brand
- Alerton
- Number of Wiring Terminals
- 2
- Includes
- Standard 1/2 NPS Male inch
Others
- Minimum Operating Ambient Temperature
- -40 degree Fahrenheit
- -40 degree Celsius
- Maximum Operating Ambient Temperature
- 150 degree Celsius
- 302 degree Fahrenheit
- Product Type
- Immersion Sensor with NEMA 4X Housing Degrees Celsius
- Brand
- Alerton
- Number of Wiring Terminals
- 2
- Includes
- Standard 1/2 NPS Male inch
- Minimum Operating Ambient Temperature : -40 degree Fahrenheit|-40 degree Celsius
- Maximum Operating Ambient Temperature : 150 degree Celsius|302 degree Fahrenheit
- Product Type : Immersion Sensor with NEMA 4X Housing Degrees Celsius
- Brand : Alerton
- Number of Wiring Terminals : 2
- Includes : Standard 1/2 NPS Male inch
Product Number
SKU
Description
A/CP-INW-4-4X
Temperature Sensor, 10K ohm Type II Thermistor, Immersion, 4in, NEMA 4X Polycarbonate Box
A/CP-INW-6-4X
Temperature Sensor, 10K ohm Type II Thermistor, Immersion, 6in, NEMA 4X Polycarbonate Box
SKU
Description
A/CP-INW-4-4X
Temperature Sensor, 10K ohm Type II Thermistor, Immersion, 4in, NEMA 4X Polycarbonate Box
A/CP-INW-6-4X
Temperature Sensor, 10K ohm Type II Thermistor, Immersion, 6in, NEMA 4X Polycarbonate Box
