    Rotary Actuators

    Modutrol Actuator with 3-Point Control

    Series 61 and Series 62 Modutrol IV™ Motors are 3-wire spring return and non-spring return floating control motors.

    Overview
    Series 61 and Series 62 Modutrol IV™ Motors are 3-wire spring return and non-spring return floating control motors. Use these motors with controllers that provide a switched SPDT or floating output to operate dampers or valves. The Series 62 motors have an internal electrically isolated feedback potentiometer that provides indication of the motor shaft position and can be used for slaving Series 90 Motors or rebalancing an external control circuit.Features & Benefits:
    • Replaces M644, M944B/E/G/H/J/K/R/S and M945B/C/G/K/L/AD motors
    • Integral junction box provides NEMA 3 weather protection
    • Integral spring return returns motor to normal position upon power failure
    • Motor and circuitry operate from 24V AC; models available with factory installed transformer, or a field added internal transformer
    • Quick connect terminals are standard — screw terminal adapter is available
    • Adapter bracket for matching shaft height of older motors is available
    • Motors have field adjustable stroke (90° to 160°)
    • Die-cast aluminum housing
    • Integral auxiliary switches are available factory mounted or can be field added
    • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke). Other timings available
    Honeywell will provide product support until
    Reference Guides
    Name
    Description
    File Size
    Date
    Size
    EN Installation Instruction Damper Hardware Adjustment Guide
    EN Installation Instruction Damper Hardware Adjustment Guide
    application/pdf 161.47 KB
    12/1/1970
    161.47 KB
    Others
    Name
    Description
    File Size
    Date
    Size
    FR Fiche Produit Série 90 Modutrol IV Servomoteur
    FR Fiche Produit Série 90 Modutrol IV Servomoteur
    application/pdf 1.11 MB
    2/1/2011
    1.11 MB
    EU Declaration of Conformity Modutrol IV Series Actuators
    EU Declaration of Conformity Modutrol IV Series Actuators
    application/pdf 88.67 KB
    8/22/2014
    88.67 KB
    Engineering Specifications
    Name
    Description
    File Size
    Date
    Size
    M6161, M6181, M6184, M6191, M6194 Modutrol IV� Motors Specification Data
    M6161, M6181, M6184, M6191, M6194 Modutrol IV� Motors Specification Data
    application/pdf 89.25 KB
    5/1/1996
    89.25 KB
    Data Sheet
    Name
    Description
    File Size
    Date
    Size
    Series 61 and 62 Modutrol IV Motors Product Data
    Series 61 and 62 Modutrol IV Motors Product Data
    application/pdf 1.73 MB
    10/1/2011
    1.73 MB
    FR Fiche Produit Série 61-62 Modutrol IV Servomoteur
    FR Fiche Produit Série 61-62 Modutrol IV Servomoteur
    application/pdf 977.85 KB
    10/1/2007
    977.85 KB
    Name
    Description
    File Size
    Date
    Size
    EN Installation Instruction Damper Hardware Adjustment Guide
    EN Installation Instruction Damper Hardware Adjustment Guide
    application/pdf 161.47 KB
    12/1/1970
    161.47 KB
    M6161, M6181, M6184, M6191, M6194 Modutrol IV� Motors Specification Data
    M6161, M6181, M6184, M6191, M6194 Modutrol IV� Motors Specification Data
    application/pdf 89.25 KB
    5/1/1996
    89.25 KB
    Series 61 and 62 Modutrol IV Motors Product Data
    Series 61 and 62 Modutrol IV Motors Product Data
    application/pdf 1.73 MB
    10/1/2011
    1.73 MB
    FR Fiche Produit Série 90 Modutrol IV Servomoteur
    FR Fiche Produit Série 90 Modutrol IV Servomoteur
    application/pdf 1.11 MB
    2/1/2011
    1.11 MB
    EU Declaration of Conformity Modutrol IV Series Actuators
    EU Declaration of Conformity Modutrol IV Series Actuators
    application/pdf 88.67 KB
    8/22/2014
    88.67 KB
    FR Fiche Produit Série 61-62 Modutrol IV Servomoteur
    FR Fiche Produit Série 61-62 Modutrol IV Servomoteur
    application/pdf 977.85 KB
    10/1/2007
    977.85 KB
    Name
    Description
    File Size
    Date
    Size
    EN Installation Instruction Damper Hardware Adjustment Guide
    EN Installation Instruction Damper Hardware Adjustment Guide
    161.47 KB
    12/1/1970
    FR Fiche Produit Série 90 Modutrol IV Servomoteur
    FR Fiche Produit Série 90 Modutrol IV Servomoteur
    1.11 MB
    2/1/2011
    EU Declaration of Conformity Modutrol IV Series Actuators
    EU Declaration of Conformity Modutrol IV Series Actuators
    88.67 KB
    8/22/2014
    M6161, M6181, M6184, M6191, M6194 Modutrol IV� Motors Specification Data
    M6161, M6181, M6184, M6191, M6194 Modutrol IV� Motors Specification Data
    89.25 KB
    5/1/1996
    Series 61 and 62 Modutrol IV Motors Product Data
    Series 61 and 62 Modutrol IV Motors Product Data
    1.73 MB
    10/1/2011
    FR Fiche Produit Série 61-62 Modutrol IV Servomoteur
    FR Fiche Produit Série 61-62 Modutrol IV Servomoteur
    977.85 KB
    10/1/2007
    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    M6184D1001/U
    Modutrol Motor, Non-Spring Return, 75 lb-in, 24 Vac, Floating, Adj 90-160 deg, 15-30 s
    M6184D1001/U
    Modutrol Motor, Non-Spring Return, 75 lb-in, 24 Vac, Floating, Adj 90-160 deg, 15-30 s
    M6184D1035/U
    MODUTROL MOTOR
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6184D1035/U
    MODUTROL MOTOR
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6184D1068/U
    Modutrol Motor, Non-Spring Return, 150 lb-in, 24 Vac, Floating, Adj 90-160 deg, 120-240 s
    M6184D1068/U
    Modutrol Motor, Non-Spring Return, 150 lb-in, 24 Vac, Floating, Adj 90-160 deg, 120-240 s
    M6184F1014/U
    MODUTROL MOTOR
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6184F1014/U
    MODUTROL MOTOR
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6194B1011/U
    Modutrol Motor, Non-Spring Return, 300 lb-in, 24 Vac, Floating, Adj 90-160 deg, 60-120 s, 1x Aux Switch
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6194B1011/U
    Modutrol Motor, Non-Spring Return, 300 lb-in, 24 Vac, Floating, Adj 90-160 deg, 60-120 s, 1x Aux Switch
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6194D1017/U
    Modutrol Motor, Non-Spring Return, 300 lb-in, 24 Vac, Floating, Adj 90-160 deg, 120-240 s
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6194D1017/U
    Modutrol Motor, Non-Spring Return, 300 lb-in, 24 Vac, Floating, Adj 90-160 deg, 120-240 s
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6194E1006/U
    Modutrol Motor, Non-Spring Return, 300 lb-in, 24 Vac, Floating, Adj 90-160 deg, 120-240 s, 1x Aux Switch
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left
    M6194E1006/U
    Modutrol Motor, Non-Spring Return, 300 lb-in, 24 Vac, Floating, Adj 90-160 deg, 120-240 s, 1x Aux Switch
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6184A1015-U-left

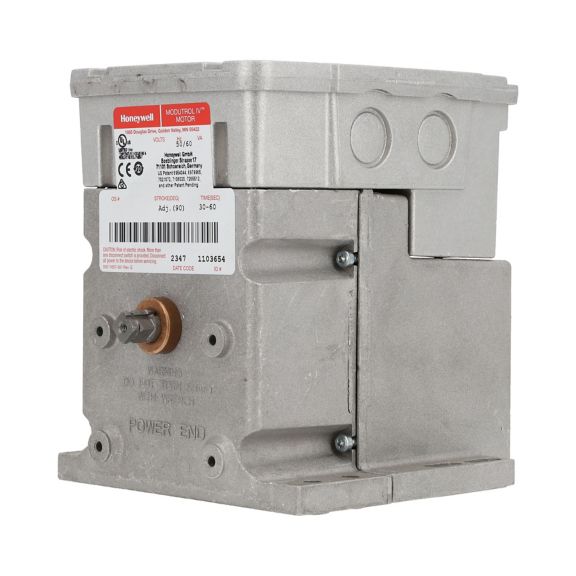

    M6284F1013-S/U
    MODTROL MOTOR SLAVE SERIES 90
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6284A1097-S-U-left
    M6284F1013-S/U
    MODTROL MOTOR SLAVE SERIES 90
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6284A1097-S-U-left
    M6284F1078-F/U
    3-Point Modutrol Actuator, 17Nm, 24Vac, 10kOhm Linear Feedback, 90-160 degree stroke, 30-53s, 2 Aux Switches
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6284A1097-S-U-left
    M6284F1078-F/U
    3-Point Modutrol Actuator, 17Nm, 24Vac, 10kOhm Linear Feedback, 90-160 degree stroke, 30-53s, 2 Aux Switches
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6284A1097-S-U-left

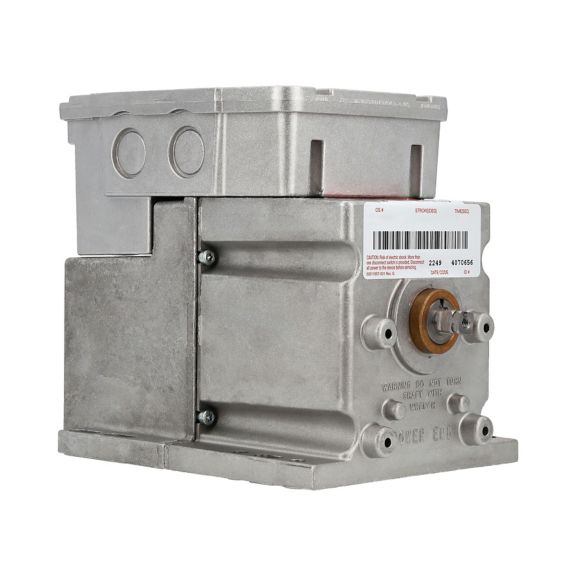

    M6285A1005-S/U
    Modutrol Motor, Spring Return, 60 lb-in, 24 Vac, Floating, Non-linear Feedback, Adj 90-160 deg, 30-60 s
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6285A1005-S-U-left
    M6285A1005-S/U
    Modutrol Motor, Spring Return, 60 lb-in, 24 Vac, Floating, Non-linear Feedback, Adj 90-160 deg, 30-60 s
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M6285A1005-S-U-left
