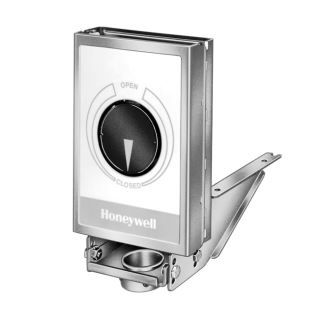

Q5001 Valve Linkage for Modutrol IV Motor
Q5001 valve linkages connect Modutrol motors to 2- or 3-way valves. They are used primarily on steam and water valves, such as the V5011 or V5013.
Overview
Q5001 valve linkages connect Modutrol motors to 2- or 3-way valves. They are used primarily on steam and water valves, such as the V5011 or V5013.
Features & Benefits:- Q5001 valve linkage is applicable to 2or 3-way valves in modulating or 2-position service
- Linkage requires no adjustment when used with Honeywell valves and Modutrol IV™ Motors (can also be used with Modutrol III™ motors)
- Q5001 valve linkage replaces Q601 and Q618 valve linkages
- Linkage mounts directly to the valve bonnet; motor mounts on linkage bracket
- Easy-to-read position indicator
- Valve stem lift height cam selectable
- Over travel permits tight close off without excessive motor strain
- Easy mounting and valve connection
- Available brackets make linkages adaptable to many valve bodies
- 80, 160, and 320 lb stem force models available
