    Globe Valves

    VGF Series Flanged Globe Valves

    Discontinued

    VGF Flanged Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water in closed loop HVAC systems.

    Overview
    This product has been discontinued.
    Honeywell will provide product support until

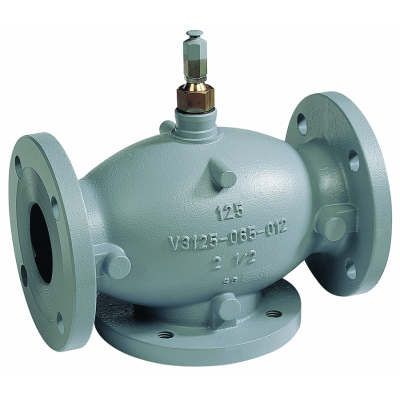

    VGF Flanged Globe Valves are used for 2-position or modulating control of steam, hot water, or chilled water in closed loop HVAC systems. They can be operated by a large variety of electric and pneumatic actuators. Threeway valves are available in mixing or diverting flow patterns. Features & Benefits:
    • ANSI Class 125 and Class 250 flanged cast iron bodies.
    • Face-to-face flange dimensions per ANSI/ISA S75.03 standard.
    • Sizes from 2-1/2 to 6 inches (DN65 to DN150).
    • Metal-to-metal seating for long life span.
    • Differential pressure of 175 psi, ANSI Class IV leakage on pressure-balanced models.
    • Steam inlet pressure up to 100 psig (689 kPa).
    • Self-adjusting packing.
    • Equal percentage and linear flow characteristics to ensure precise control in a variety of applications.
    Name
    Date
    Size
    No Resources documents tagged to this product
    An error occurred . Please try after sometime

    _blank

    Actuator_Included@actuator_included|Application@application|Control_Type@control_type|Controlled_Medium@controlled_medium|Flow_Coefficient@flow_coefficient|Leakage_Rating@leakage_rating|Maximum_Medium_Temperature@maximum_medium_temperature|Minimum_Medium_Temperature@minimum_medium_temperature|Steam_Pressure_Rating@steam_pressure_rating|Valve_Body_Material@valve_body_material|Valve_Body_Pattern@valve_body_pattern|Valve_Bonnet_Size@valve_bonnet_size|Valve_Connection_Type@valve_connection_type|Valve_Flow_Characteristic@valve_flow_characteristic|Valve_Plug_Material@valve_plug_material|Valve_Pressure_Rating@valve_pressure_rating|Valve_Size_Diameter@valve_size_diameter|Valve_Stem_Material@valve_stem_material|Valve_Stroke@valve_stroke|Valve_Trim@valve_trim|Valve_Type@valve_type

    Filters

    Product Number
    Part Number
    Compare
    Description
    Leaf Category
    Thumbnail
    Add to list
    VGF21EP25
    GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 2-WAY - 70 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP25-left
    VGF21EP25
    GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 2-WAY - 70 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP25-left
    VGF21EP30
    GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 2-WAY - 115 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP30-left
    VGF21EP30
    GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 2-WAY - 115 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP30-left
    VGF21EP40
    GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 150 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    VGF21EP40
    GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 150 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    VGF21EP50
    GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 285 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP50-left
    VGF21EP50
    GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 285 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP50-left

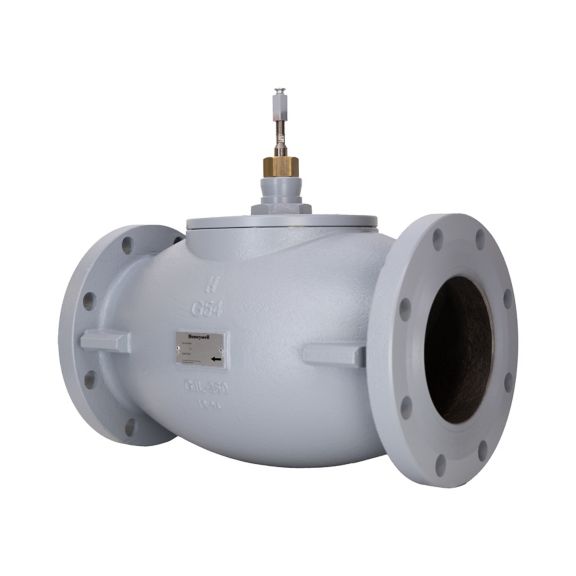

    VGF21EP60
    GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 370 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP60-left
    VGF21EP60
    GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 370 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE - PRESSURE BALANCED
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21EP60-left

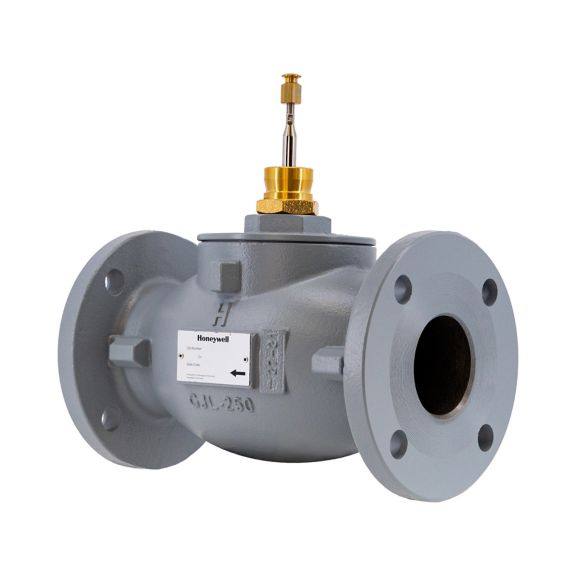

    VGF21ES25
    GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 2-WAY - 70 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES25-left
    VGF21ES25
    GLOBE VALVE - 2-12 IN. ANSI 125 FLANGED - 2-WAY - 70 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES25-left
    VGF21ES30
    GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 2-WAY - 125 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES30-left
    VGF21ES30
    GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 2-WAY - 125 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES30-left
    VGF21ES40
    GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 155 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    VGF21ES40
    GLOBE VALVE - 4 IN. ANSI 125 FLANGED - 2-WAY - 155 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    VGF21ES50
    GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 320 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES50-left
    VGF21ES50
    GLOBE VALVE - 5 IN. ANSI 125 FLANGED - 2-WAY - 320 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES50-left

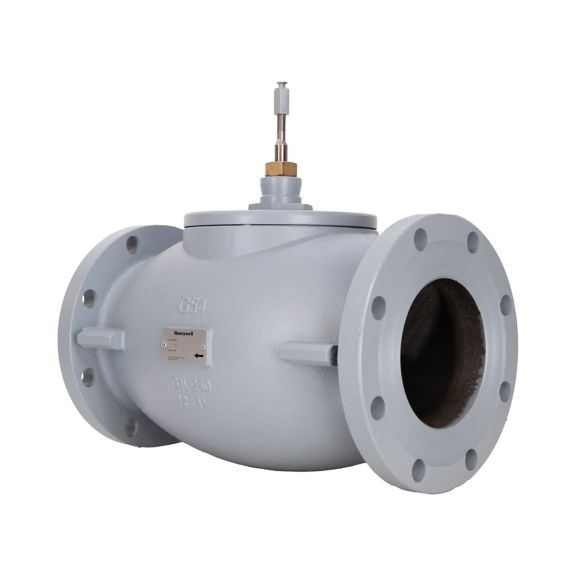

    VGF21ES60
    GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 370 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES60-left
    VGF21ES60
    GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 2-WAY - 370 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VGF21ES60-left

    Related Products

    High Temperature Kits for Linear Valves and Actuators

    For use with Honeywell valves and compatible actuators.

    Q5020 Globe Valve Linkages

    The Q5020 Globe Valve Linkages connect a Honeywell direct coupled actuator (DCA) to a steam or water globe valve. The Q5020 Linkages are compatible with two-way and three-way globe valves up to 3 inch (DN80).

    Q5001 Valve Linkage for Modutrol IV Motor

    The Q5001 Valve Linkage connects a Modutrol Motor to a 2- or 3-way valve. It is used primarily on V5011 or V5013 steam and water valves.

    MP953C-F Pneumatic Valve Actuators

    Pneumatic actuators provide proportional control of steam or hot or cold liquids in HVAC systems by operating V5011, V5013, and VGF valve assemblies. Replacement devices are available for older Honeywell actuators.

    Q5024 Globe Valve Linkage and Bonnet Adapters

    Q5024 Globe Valve Linkages connect a Honeywell direct coupled actuator (DCA) to a steam or water globe valve. Q5024 linkages are compatible with 2- and 3-way globe valves.
